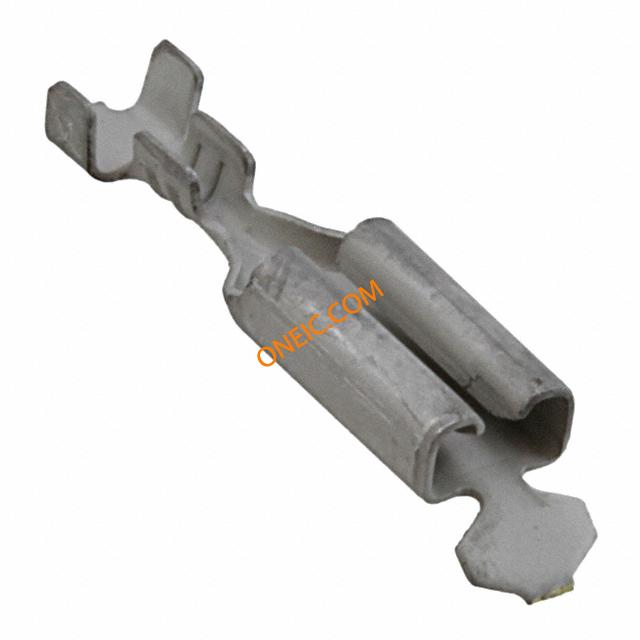

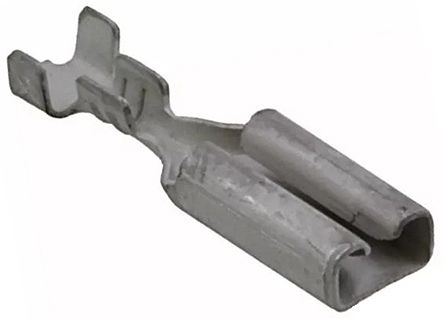

160772-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 22-26AWG F 14mm 3.7mm Tin Strip FASTON Uninsulated Receptacles & Housings CONN RCPT STR 26-22AWG .110 TIN Receptacle terminal,FASTON 110,AWG 26-22 Terminals Recpt 2.79 x 0.79 mm FASTON Uninsulated Receptacles & Housings Product Highlights:ReceptacleTab Fit = 2.79 x 0.79 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TERMINALREC2.79MM TE Connectivity FASTON .110 系列 压接插座 , 2.79 x 0.79mm, 镀锡触芯 FASTON 110 REC 26-22 .009X.450 TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107166CT |
| 标准包装规格 | 10,000 | 产品类别 | Terminals |
| 标准包装数量 | 10,000 | 工厂包装数量 | 10000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Tin | 长度 | 14mm |
| 材料（通用） | Brass | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 2.79 x 0.79 [.110 x .031] | 电缆类型 | Regular Wire |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.248" (6.30mm) |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 0.4mm² |
| 电缆材料 | Stranded | 连接器类型 | Quick Disconnect Terminal |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 连接器用途 | Wire & Cable | 箔压接区域 | F-Crimp |
| 插入件材料 | 黄铜 | 插入力 | Normal |
| 触头材料 | Brass | 总长度 | Commercial |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | Insulation Support | 端接样式 | Solder Pin |
| 适用端子尺寸 | .9 – 1.6 mm [ .035 – .063 in ] | 绝缘直径 | 0.89-1.60 [.035-.063] |
| 绝缘材料 - 类型 | No | 总厚度 | .25 mm [ .01 in ] |
| 焊盘布局尺寸 | 2.79 x 0.79mm | 法兰上方插针尺寸 | 2.8 mm [ .11 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 接触镀层厚度 | 400 |
| 线规或范围 - AWG | 22AWG | 线规或范围 - mm² | 0.12-0.40² [26-22] |
| 第二连接器安装特性 | No | 外径-未扩张 | 1.6 mm [ .063 in ] |
产品信息
| 备注 | Versions according to DIN 46247, Part 1, all other versions have dimples, which | 类型 | Receptacle, Faston |
| 连接器性别 | Female | 系列 | 110 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
