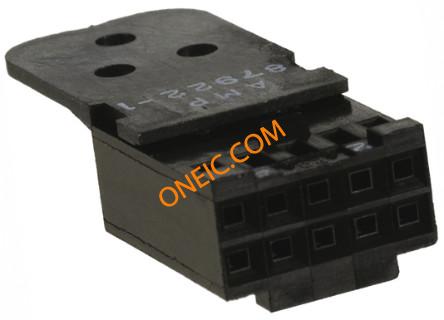

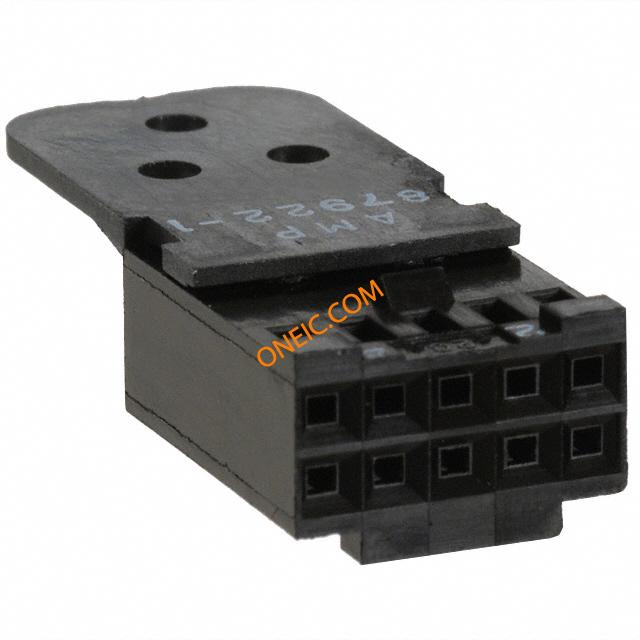

87922-1

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 10POS .100 POL W/STR RECEPTACLE, AMPMODU, MOD IV, 10 POSITION Headers & Wire Housings 10 MODV HSG W/STR Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingHousing Type = Housing - ReceptacleAccepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 10POS, 2.54MM RECEPTACLE,AMPMODU,MODIV,10POSITION,.100IN,DUALROW,STRAINRELIEF,MARK 10 MODIV HSG W/STR RLF DR MRKD
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
开关功能	Detent Latching	最大额定电流	3 A
最小供电电压	250VAC

机械参数

颜色	Black	深度	29.21 mm
间距	2.54 mm	高度	7.32 mm
重量	0.00136	包装方式	Bulk
导线线规	20-32 AWG	排间距	0.100" (2.54mm)
触头类型	Male or Female	外壳颜色	Black
安装类型	Straight	连接器类型	Receptacle
接触镀层	:-	紧固类型	Locking Ramp
排数	2	触头材料	:-
壳体材料	Thermoplastic	总长度	12.7 mm
主要材料	InterconnectSystem	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	10
接触件端接	Crimp	位数	10

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU/MOD IV
产品特性	Strain Relief	制造商全称	AMPMODU/MODIVSeries
产品子类型	Connectors	应用细节	Board-to-Board

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

580372.pdf

在线文档

87922-1?RQPN=87922-1

相关型号

103168-3

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 10POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VER DUAL 10 detent windows Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUDRHDRSHRD,10MODIIHDRDRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔 10 MODII HDR DRST SHRD .100CL

¥7.8880

详情

103167-2

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 10POS 30AU Headers & Wire Housings ACTION PIN R.A. 10P dual .150 end Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 10 MODII HDR DRRA SHRD .100CL

¥5.8480

详情

87474-1

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER .100 10POS DUAL GOLD Headers & Wire Housings 10 MODII HDR DRST SH 87474-1 Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 10 MODII HDR DRST SHRD .100CL

¥11.0840

详情

102620-1

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 10POS DL R/A SHRD AU Headers & Wire Housings 10 MODII HDR DRRA 3/4SHRD .100 10 MODII HDR DRRA 3/4SHRD .100 10 MODII HDR DRRA 3/4SHRD .100 Search Keywords:board to board, AMPMODU, pcb connectors,

¥5.7800

详情

104352-5

te connectivity / amp

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 10POS DUAL TIN Headers & Wire Housings 10 MODII HDR DRST B/ 6400 10 MODII HDR DRST B/A W/HD 10 MODII HDR DRST B/A W/HD Search Keywords:board to board, AMPMODU, pcb connectors,

¥1.6320

详情

5-102617-3

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole CONN HEADER R/A .100 10POS 15AU Headers & Wire Housings HDR 2X05P R/A T/H Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 10WAY 10 MODII HDR DRRA SHRD LF

¥5.7800

详情

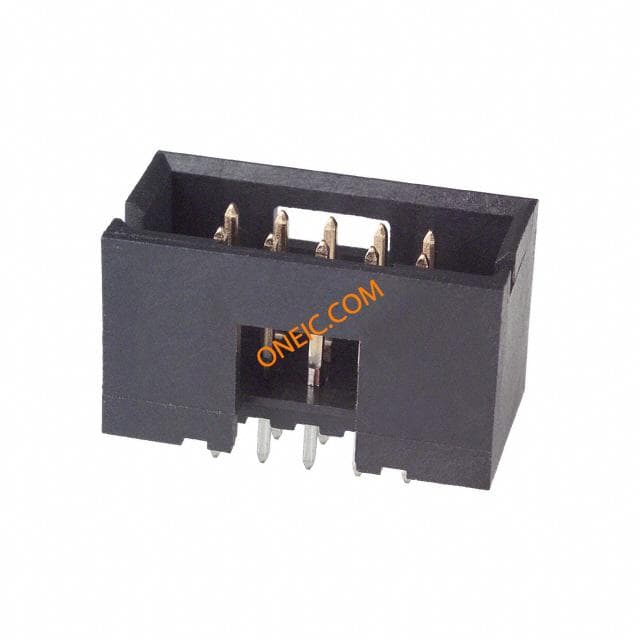

5-102619-3
