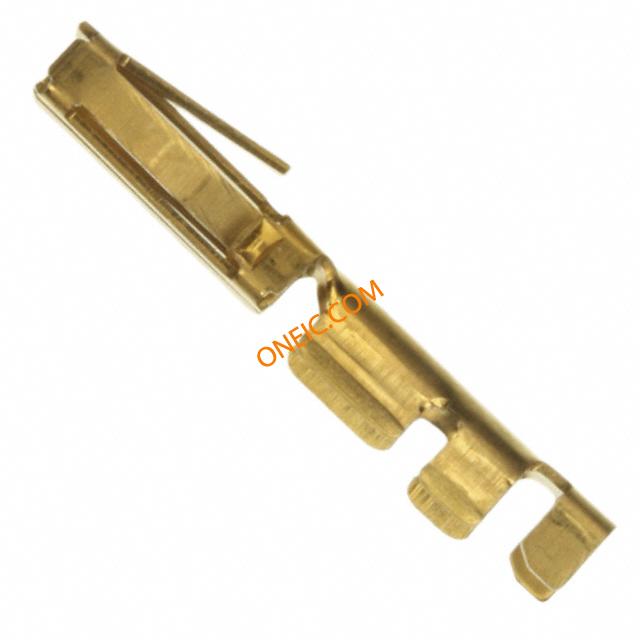

86571-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Flexible Film Contacts RND WIRE RCPT L.P. FFC & FPC Connectors RND WIRE RCPT L.P. Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketContact Type = ReceptacleWire Range = 0.12-0.40² [26-22] mm [AWG]2.54 mm CenterlineWire/Cable Type = Round Wire, DiscreteSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, CONTACT,SOCKET,FLEXIBLEFILM,26-22AWG,ROUNDWIRE |
| 分类 |
商业参数
| 产品类别 | FFC & FPC Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 接触电阻 | 25 mohm | 连接器阻抗 | 压接 |
| 最大额定电流 | 2 A | 最小供电电压 | 300VAC |
机械参数
| 深度 | 2.33 mm | 间距 | 2.54 mm |
| 高度 | 2.03 mm | 包装方式 | Bulk |
| 电缆类型 | Round Wire, Discrete | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 2.54 [0.100] |
| 框架材料 | 镍 | 包装数量 | Loose Piece |
| 端接样式 | Crimp | 触点数 | Not Required |
| 接触件端接 | Crimp | 绝缘直径 | 1.02 â 1.42 [0.040 â 0.056] |
| 接触镀层厚度 | 15µin (0.38µm) | 线规或范围 - mm² | 0.12-0.40² [26-22] |
产品信息
| 制造商 | 1.27, 1.82 | 备注 | Use Extraction Tool No. 91092-1 for end locking slot and Extraction Tool No. 91 |
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | AMP | 产品子类型 | Contacts |
环境参数
| 工作温度 | -65C to 105C | ||
文档与媒体
