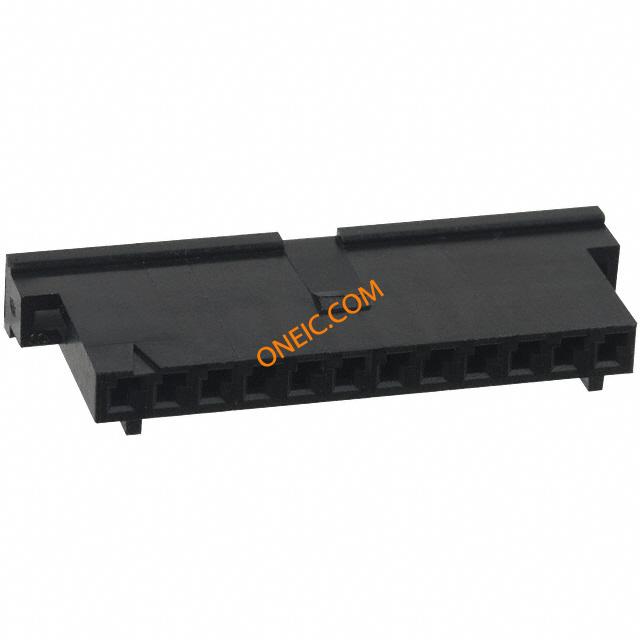

88859-4

点击放大查看

88859-4

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 012 HOUSING FFC RCPT SR 100CL FFC & FPC Connectors 012P RCPT SR .100CL Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 12Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
分类
连接器解决方案FFC/FPC连接器FFC/FPC连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格1产品类别FFC & FPC Connectors
标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级Yes

电气参数

额定电压300V供电电压300 VAC
输入电阻5000钳位电压720
连接器阻抗制动器最大额定电流2A

机械参数

颜色Black间距2.54 mm
锁定类型带有包装方式Bulk
壳体颜色黑色电缆类型FFC
第二连接器With安装类型Straight
连接器类型Standard排数1
连接器用途Receptacle锁定特性Detent
壳体材料Thermoplastic安装特性Without
包装数量1面板安装类型Without
端接样式插座FFC/FCB厚度0.05-0.13mm
配接方向With触点数12
位数12安装孔直径带有
中心触点材料2.54 [0.100]

产品信息

备注Use Extraction Tool No. 91092-1 for round wire contacts.类型Housing
连接器性别RCP产品特性Detent Lock
产品子类型Housing连接类型FFC Cable

环境参数

工作温度-65°C ~ 105°C

文档与媒体

在线文档
88859-4?RQPN=88859-4
