828-AG11D-LF
| 制造商 | TE Connectivity Ltd. |
| 描述 | IC & Component Sockets DIP .6CL 28P S/M OFRM AU/SN Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:Socket Style = StandardThrough Hole Contact Termination Type2.54 mm CenterlineRow-to-Row Spacing = 15.24 mm28 Positions SOCKET IC, DIL, 0.6", 28WAY |
| 分类 |
商业参数
| 产品 | DIP / SIP Sockets | 零件号别名 | 2-1571586-9 |
| 产品类别 | IC & Component Sockets | 工厂包装数量 | 17 |
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 电容 | :1pF | 接触电阻 | :10mohm |
| 介电强度 | :1kV | 最大额定电流 | :3A |
| 绝缘电阻 | :5000Mohm | 连接器类型 - 电压输入 | :DIP |
机械参数
| 间距 | 2.54 mm | 宽度 | :17.78mm |
| 长度 | :35.36mm | 重量 | 0.001 |
| 材料（通用） | :beryllium copper contacts | 底座类型 | DIP |
| 引脚间距 | :2.54mm | 柱间距 | :15.24mm |
| 释放力 | :63gf | 外壳镀层 | :Tin / Lead |
| 连接器类型 | :DIP | 接触镀层 | Gold |
| 安装样式 | Through Hole | 插入力 | :134gf |
| 触头材料 | :Beryllium Copper | 触点数 | 28 |
| 接触件端接 | :Through Hole Vertical | 安装孔直径 | :0.89mm |
| 第一连接器安装类型 | :PC Board | ||
产品信息
| 系列 | :800 | ||
环境参数
| 工作温度 | :125°C | ||
相关型号
828-AG11D-LF
TE Connectivity / AMP
IC & Component Sockets DIP .6CL 28P S/M OFRM AU/SN Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:Socket Style = StandardThrough Hole Contact Termination Type2.54 mm CenterlineRow-to-Row Spacing = 15.24 mm28 Positions SOCKET IC, DIL, 0.6", 28WAY
110-99-628-41-001000
Mill-Max
Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 28PIN MS TIN/TIN .600 Socket; DIP;28Pins;Low Profile;Open;Solder Tail;0.6In.;Beryllium Copper;Tin/Lead IC & Component Sockets 28P TIN PIN TIN CONT DIP SOCKET, 28POS, THROUGH HOLE Socket,DIP;28Pins;LowProfile;Open;SolderTail;0.6In.;BerylliumCopper;Tin/Lead

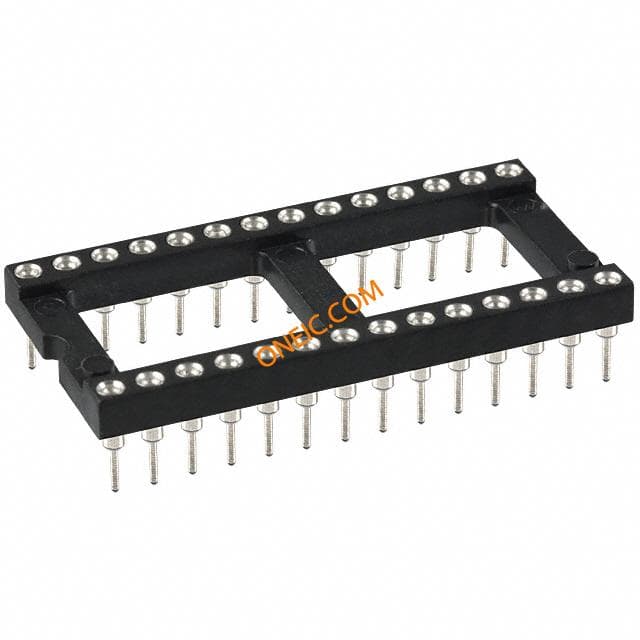

110-44-628-41-001000
Mill-Max
Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 28PIN MS TIN/TIN .600 IC & Component Sockets 28P TIN PIN TIN CONT DIP SOCKET, 28POS, THROUGH HOLE DIPSOCKETSOLDERTAIL

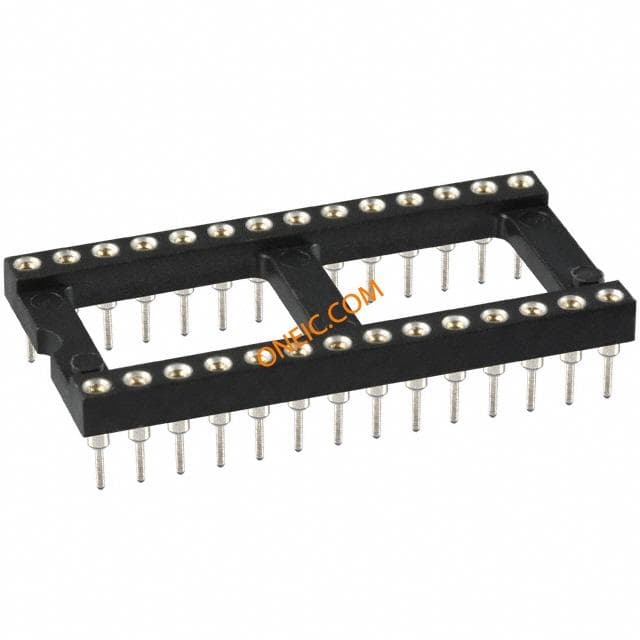

110-43-628-41-001000
