点击放大查看

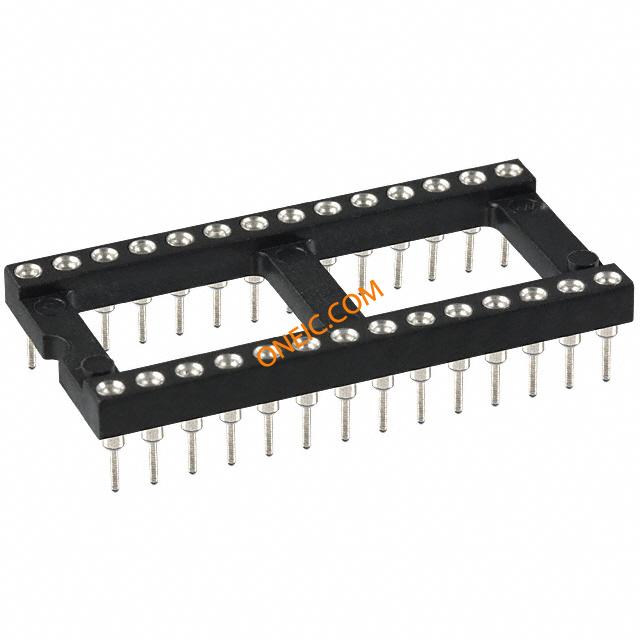

110-44-628-41-001000
| 制造商 | Mill-Max Mfg. Corp. |
| 描述 | Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 28PIN MS TIN/TIN .600 IC & Component Sockets 28P TIN PIN TIN CONT DIP SOCKET, 28POS, THROUGH HOLE DIPSOCKETSOLDERTAIL |
| 分类 |
商业参数
| 产品 | DIP / SIP Sockets | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 14 | 工厂包装数量 | 14 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85411000 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 1 kV | 接触电阻 | 10 |
| 最大额定电流 | 3 A | 绝缘电阻 | 10000 |
| 最小输入电压 | 150VDC|100VAC | ||
机械参数
| 深度 | 17.7 | 间距 | 0.100" (2.54mm) |
| 高度 | 4.19 | 重量 | 0.002 |
| 底座类型 | Open Frame | 包装方式 | Tube |
| 排间距 | 15.24 mm | 端接方式 | Solder |
| 柱间距 | :15.24mm | 安装类型 | Through Hole |
| 连接器类型 | :DIP Socket | 接触镀层 | Tin Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | DIP | 触头材料 | Beryllium Copper Alloy |
| 壳体材料 | Polychlorinated Terphenyl | 总长度 | 35.5 |
| 端接样式 | Solder Tail | 触点数 | 28 |
| 接触件端接 | :Solder | 绝缘材料 - 类型 | Polychlorinated Terphenyl |
| 接触镀层厚度 | 200µin (5.08µm) | 位置或引脚数（网格） | 28 (2 x 14) |
产品信息
| 类型 | DIP Socket | 连接器性别 | SKT |
| 系列 | :110 | 产品特性 | Open Frame |
环境参数
| 工作温度 | - 55 C to + 125 C | ||
文档与媒体
相关型号
142-90-628-00-594000
Mill-Max
Headers & Wire Housings 28P DIP HDR OPEN FRAME .835L Conn DIP Adapter HDR 28 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .600 28POS
142-90-628-00-593000
Mill-Max
Headers & Wire Housings 28P DIP HDR OPEN FRAME .585L Conn DIP Adapter HDR 28 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .600 28POS
142-90-628-00-592000
Mill-Max
Headers & Wire Housings 28P DIP HDR OPEN FRAME .335L Conn DIP Adapter HDR 28 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .600 28POS
151-10-628-00-009000
Mill-Max
Conn DIP Adapter HDR 28 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .600 28POS Headers & Wire Housings 28P DIP HDR OPEN FRAME .252L
151-10-628-00-010000
Mill-Max
Conn DIP Adapter HDR 28 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .600 28POS Headers & Wire Housings 28P DIP HDR OPEN FRAME .331L
110-99-628-41-001000
Mill-Max
Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 28PIN MS TIN/TIN .600 Socket; DIP;28Pins;Low Profile;Open;Solder Tail;0.6In.;Beryllium Copper;Tin/Lead IC & Component Sockets 28P TIN PIN TIN CONT DIP SOCKET, 28POS, THROUGH HOLE Socket,DIP;28Pins;LowProfile;Open;SolderTail;0.6In.;BerylliumCopper;Tin/Lead

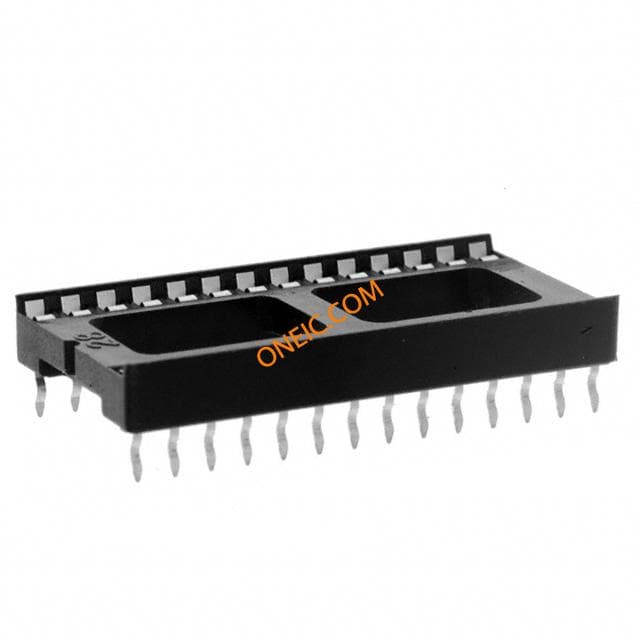

4828-6004-CP
