826949-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole CONN HEADER BRKWY 6POS R/A TIN TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 1X06 POS R/A TIN HEADER, RIGHT ANGLE, 6WAY Headerhoriz6way2.54mmAmpModu TE Connectivity AMPMODU Mod II 系列 6路 2.54mm节距 (1排) 直角 引脚管座 , 焊接端接, 3A, 通孔 6P MOD2 STIFT LEI |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU Mod II Series | 最大额定电流 | 3A |
机械参数
| 间距 | 2.54 mm | 重量 | 0.001 |
| 包装方式 | Bulk | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2.54mm | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Tin Over Nickel |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 主要材料 | Connector |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 6 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 6 | 柱体长度（配合） | 5.8 mm |
| 接触长度 - 配合 | 0.228" (5.80mm) | 端子柱长度 | 3.2 mm |
| 外部壳体材料 | :Green, glass filled polyester | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU | 制造商全称 | AMPMODU |
| 产品子类型 | Headers | 加载位置数 | All |
文档与媒体
相关型号
280360
TE Connectivity AMP Connectors
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HOUSING 6POS CRIMP 6 way 1 row MODU crimp socket shell Headers & Wire Housings 6 POS RECPT Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, CRIMP, RECEPTACLE, 2.54MM, 6WAY 6way1rowMODUcrimpsocketshell Plug; wire-board; female; PIN:6; w/o terminals; 2.54mm; for cable Crimp housing 1 x 6P, 280360, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm 节距 6 路 直 母 电缆安装 PCB 壳体 MOD II HSG, SINGLE ROW 6 POS

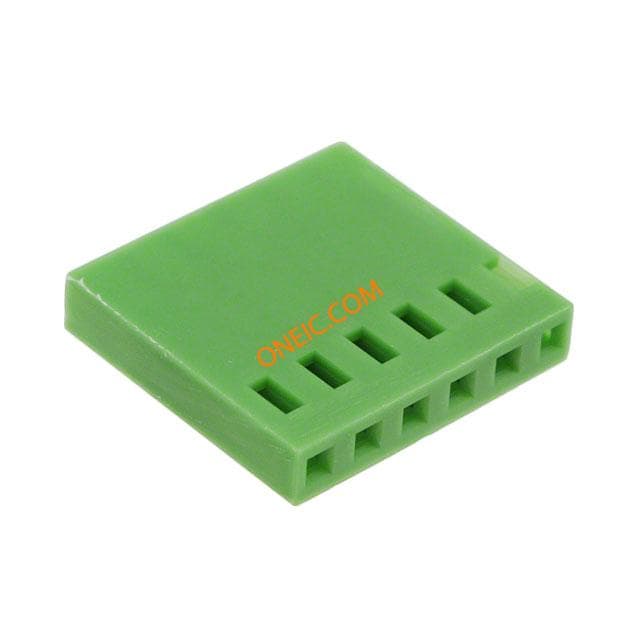

925366-6
