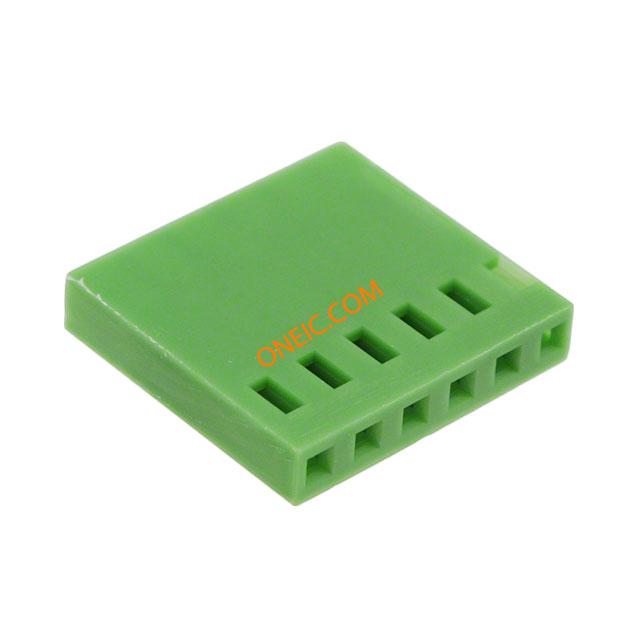

点击放大查看
925366-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount MOD 4 REC.HSG 1X06P 6way 1 row unshrouded crimp socket shell Headers & Wire Housings RECPT HSG 1X06P W/O STRAIN RELIEF .100 AMPMODU Headers, Housings & Contacts .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingHousing Type = Housing - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE, 6WAY 6way1rowunshroudedcrimpsocketshell 6WSOCKETSHELL Crimp housing Pitch2.54 mm Poles 6 Single row / straight / without strain relief AMPMODU MOD IV, 925366-6, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 6 路 直 母 PCB 壳体 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装规格 | 1,000 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 额定电压 | :250V |
| 工作电压 | :250V | 最大额定电流 | :3A |
机械参数
| 颜色 | Green | 深度 | 14.2mm |
| 间距 | 2.54 mm | 宽度 | 2.94mm |
| 长度 | 15.24mm | 重量 | 0.001 |
| 包装方式 | Bulk | 排间距 | 2.54 mm |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | :- | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMPMODU |
| 产品子类型 | Receptacles / Sockets - Housings | ||
