280360
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HOUSING 6POS CRIMP 6 way 1 row MODU crimp socket shell Headers & Wire Housings 6 POS RECPT Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, CRIMP, RECEPTACLE, 2.54MM, 6WAY 6way1rowMODUcrimpsocketshell Plug; wire-board; female; PIN:6; w/o terminals; 2.54mm; for cable Crimp housing 1 x 6P, 280360, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm 节距 6 路 直 母 电缆安装 PCB 壳体 MOD II HSG, SINGLE ROW 6 POS |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-1 | ||
电气参数
| 开关功能 | Detent Latching | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 13.7mm |
| 间距 | 2.54 mm | 宽度 | 4.8mm |
| 高度 | 4.8 mm | 长度 | 17.3mm |
| 重量 | 0.054 | 包装方式 | Bulk |
| 排间距 | 2.54 mm | 触头类型 | Socket |
| 柱间距 | 2.54 [.100] | 极化 | Latched |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 接触镀层 | GoldoverPhosphorBronze | 紧固类型 | Locking Ramp |
| 安装样式 | CableMount | 排数 | 1 |
| 封装形式 | Receptacle | 锁定特性 | Detent Latching |
| 壳体材料 | Thermoplastic | 总长度 | 17.3 mm |
| 包装数量 | 1,000 | 主要材料 | Connector |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 绝缘材料 - 材质 | :Thermoplastic |
| 第一连接器安装特征 | 1x6 | ||
产品信息
| SPG | 739 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | Mod II (Italian Range) | 预加载 | No |
| 编码、键控 | No | 制造商全称 | AMPMODU |
| 产品子类型 | Housing | 适配器系列 | AMPMODU MOD II |
| 单元数量 | 1 | 适用产品/相关产品 | Centerline Mod II Connector |
环境参数
| 工作温度 | :+80°C | ||
文档与媒体
相关型号
182206-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT SOCKET FOR 280358 MODU tin shrouded crimp 26-22 Headers & Wire Housings MOD 2 TERMINAL Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = .89 - 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, 26-22AWG, CRIMP MODUtinshroudedcrimp26-22 Contact; female; 22÷26AWG; AMPMODU MOD II; tinned; 2.54mm TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀锡触点 MOD 2 TERMINAL
280372-2
te connectivity / amp

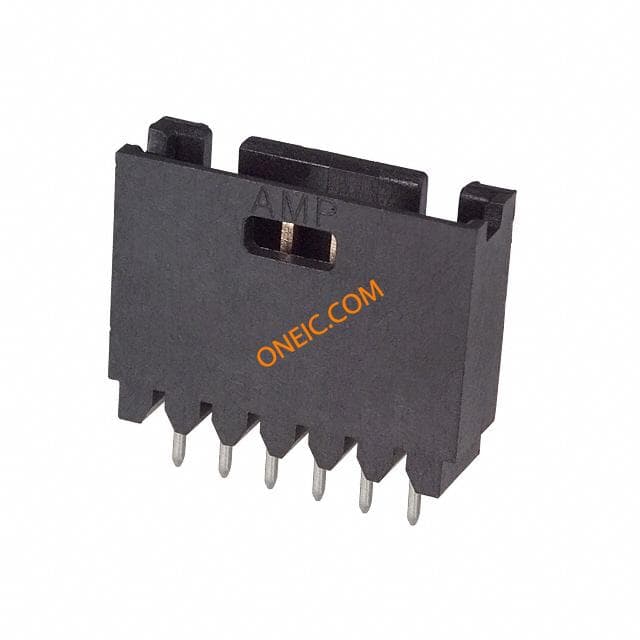

Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Carton .100 inch AMPMODU Headers CONN HEADER 6POS VERT GOLD PCB TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings 6P HDR SHROUDED 15AU Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Carton Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Shrouded6 PositionsMating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 6way1rowstraightshroudedheader Socket; wire-board; male; PIN:6; 2.54mm; THT; AMPMODU MOD II PCB header 1 x 6P, 280372-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接 , 通孔 6P AMPMODU II SHRD HDR, ST, 0.38AU
