825435-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 4POS VERT 30GOLD Headers & Wire Housings MOD 2 PINHDR 1X04P MOD 2 PINHDR 1X04P. MOD 2 PINHDR 1X04P. Search Keywords:board to board, AMPMODU, pcb connectors, |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装规格 | 500 |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 标准编号 | CSA LR7189, UL E28476 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 3/Contact A | 保护额定电压（VPR） | 750 Vrms |
机械参数
| 颜色 | Green | 深度 | 3.69 mm |
| 间距 | 2.54 mm | 高度 | 9.5 mm |
| 底座类型 | 不带 | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 绿色 |
| 引脚样式 | 正方形 | 稳定器 | 不带 |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2.54 [.100] |
| 第一连接器 | No | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | Green |
| 安装类型 | Vertical | 连接器类型 | Standard |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 1 | 插入件材料 | 黄铜 |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 10.16 mm |
| 安装特性 | Without | 包装数量 | 500 |
| 面板安装类型 | Without | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一连接器类型 | 分离 |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 触点数 | 4 | 端接表面处理 | 不带 |
| 位数 | 4 | 柱体长度（配合） | 6.7 mm |
| 安装孔直径 | 不带 | 接触长度 - 配合 | 6.70 [0.264] |
| 表面贴装焊盘尺寸 | No | 端子柱长度 | 10.80 [0.425] |
| 接触镀层厚度 | 31.5µin (0.80µm) | 静电放电屏蔽 | 不带 |
| 第一连接器安装特征 | 否 | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 钥匙类型 | 否 |
| 制造商全称 | AMP | 产品子类型 | Header |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 温度 | No |
| 工作温度 | -65C to 105C | 结工作温度 | 否 |
相关型号
87499-7
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 4POS .100 SINGLE 2.54mm,housing,4W,Mod IV,SR,snap in Headers & Wire Housings NON-PLRZD HSG 4 SNGL .405 width Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 4WAY Housing,Connector;Crimp-Snap;Single;4;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 4 Contact DesignStamped Single row / straight / without polarization AMPMODU MOD IV, 87499-7, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 4 路 直 母 PCB 壳体 04 MODIV HSG SR MRKD .100CL
535676-3
te connectivity / amp

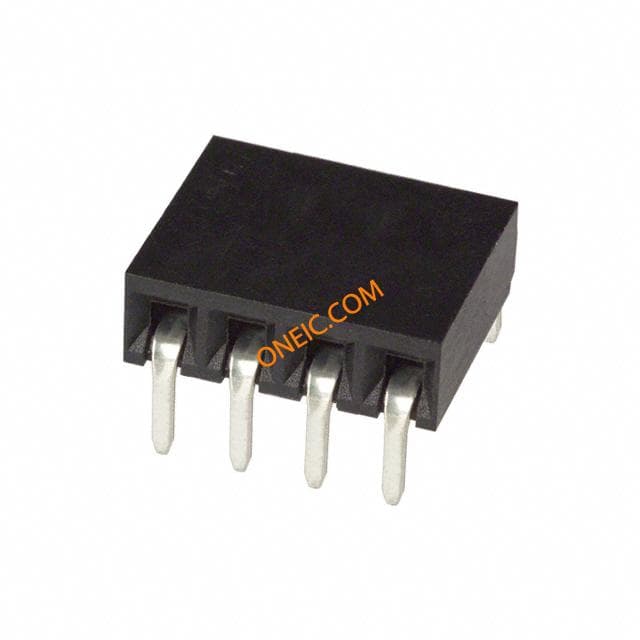

Conn Socket Strip SKT 4 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 4POS .100 RT/ANG AU Headers & Wire Housings 4P MODII RECEPTACLE 3080
