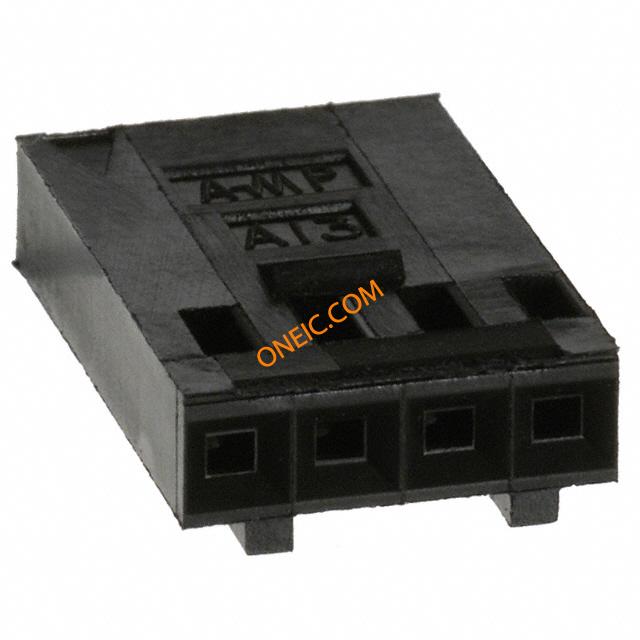

102241-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 4POS .100 POLAR 2.54mm,housing,4W,Mod IV,SR,snap in Headers & Wire Housings POLARIZED HSG 4P detent latching Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 4WAY Housing,Connector;ModIV;Single;4;250VAC;3A;750VYes Plug; wire-board; female; PIN:4; w/o terminals; 2.54mm; for cable Crimp housing Pitch2.54 mm Poles 4 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 4 路 直 母 电缆安装 PCB 壳体 04 MODIV HG COMP SR .100 POL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | ULListed,CSACertified | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 额定电压 | 250 VAC |
| 开关功能 | Detent Latching | 击穿电压 | 750V |
| 最大额定电流 | 3 A | 绝缘电阻 | :500Mohm |
| 最小输入电压 | 250VAC | 最小供电电压 | 250VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 2.54 mm | 宽度 | 4.62mm |
| 高度 | 4.62 mm | 长度 | 10.16mm |
| 重量 | 0.037 | 包装方式 | Bulk |
| 导线线规 | 20-32 AWG | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 柱间距 | 2.54mm |
| 极化 | Yes | 外壳颜色 | Black |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | :Gold |
| 紧固类型 | Locking Ramp | 安装样式 | for cable |
| 排数 | 1 | 封装形式 | :Black Thermoplastic UL94V-0 |
| 触头材料 | :Beryllium Copper | 壳体材料 | Nylon |
| 总长度 | 10.16 mm | 包装数量 | 1 |
| 主要材料 | InterconnectSystem | 连接器 - 电缆 | plug |
| 插针孔直径 | 0.1" | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 第一连接器安装类型 | :PCB | 第一连接器安装特征 | 1x4 |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | Mod IV | 制造商全称 | AMPMODU/MODIVSeries |
| 产品子类型 | Wire Housings | 适配器系列 | AMPMODU MOD IV |
| 单元数量 | 1 | 矩阵（列×行） | 0.1in. |
| 适用产品/相关产品 | Centerline Single-Row Connector | ||
环境参数
| 工作温度 | - 65 C to + 105 C | ||
