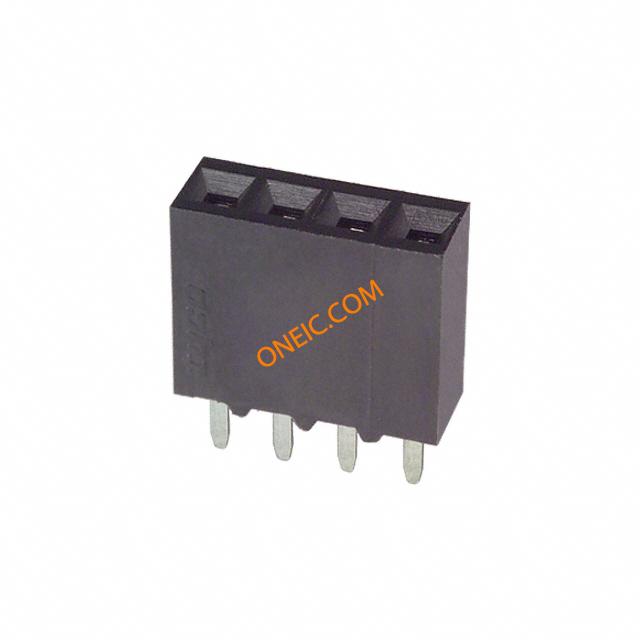

534237-2

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 4POS .100 VERT AU Headers & Wire Housings 04 MODII VRT SR CE 4480 Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:ReceptacleMod IINumber of Positions = 4Number of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 04 MODII VRT SR CE 100/115
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	56

合规参数

RoHS	Contains lead / RoHS non-compliant	MIL-C-55032	否
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

额定电压	750 V	接触电阻	12
输入电阻	5000	额定交流电压	333
最大额定电流	2 A

机械参数

颜色	Black	间距	2.54 mm
高度	3.56 mm [ .14 in ]	包装方式	Tube
壳体颜色	黑色	引脚样式	正方形
端接方式	Solder	触头类型	Female Socket
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	标准
排数	1	压力（PSI）	标准
端子样式	短点	连接器用途	闭合入口, 顶部
插入件材料	磷青铜	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	包装数量	56
面板安装类型	通孔 - 焊接	端接样式	Through Hole
触点数	4	接触件尾部长度	2.92
位数	4	衬套/护套类型	不带
兼容外壳尺寸（如TM-700等）	与接头配合	典型触点布局	同轴
端子柱长度	2.92 mm [ .115 in ]	接触镀层厚度	30µin (0.76µm)

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU MOD II
可密封	否	可堆叠	是
产品子类型	Receptacles / Sockets - PCB	装配配置	板支座
加载位置数	All

环境参数

测试温度	否	工作温度	- 65 C to + 105 C
封装热阻	1.4 – 2.4 mm [ .055 – .094 in ]
