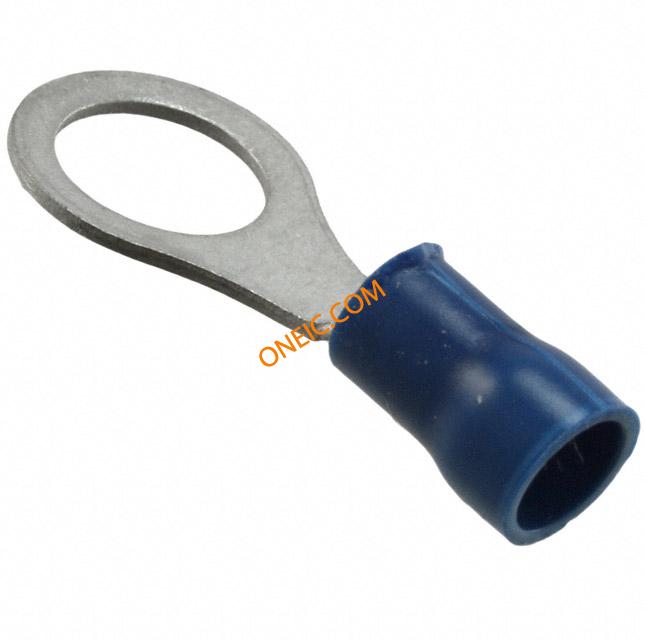

8-34163-1
| 制造商 | |
| 描述 | Ring Tongue Terminal 14-16AWG 27.69mm 11.91mm Tin T/R Terminals TERM PG R 16-14 5/16 TERM PG R 16-14 5/16 Ring and Spade Tongue Terminals CONN RING 14-16 AWG #5/16 P-G 8-34163-1 TERMINAL,PG R 16-14 5/16 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Tape | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 最大电压 | 600 | 额定电压 | 600 VAC |
| 供电电压 | 600 | ||
机械参数
| 颜色 | Blue | 形状 | RING-043 |
| 表面处理 | Tin | 重量 | .953 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.031" (0.79mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 5/16, M8 | 导线线规 | 14-16 AWG |
| 端接方式 | Crimp | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 7.93 mm |
| 端子类型 | Circular | 电缆材料 | Solid or Stranded |
| 接触镀层 | Tin | 端子样式 | Straight |
| 连接器样式 | Straight | 触头材料 | Copper |
| 总长度 | 1.090" (27.69mm) | 包装数量 | Tape Mounted |
| 筒径 | Standard | 绝缘高度 | Insulation Support |
| 端接样式 | 环形端子 | 连接器颜色 | Blue |
| 材料厚度 | .031 | 接触件尾部长度 | 0.79 [0.031] |
| 绝缘直径 | 3.00-4.60 [.118-.181] | 绝缘材料 - 类型 | Vinyl |
| 位数 | 1 | 外缘宽度 | 0.469" (11.91mm) |
| 筒体内径 | 4.95 mm [ .195 in ] | 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) |
| 舌片内部开口 | .79 mm [ .031 in ] | 螺纹/螺钉/孔尺寸 | 8.33 mm [ .328 in ] |
| 供应商器件封装 | PLASTI-GRIP | 支撑面板厚度 | Insulation Support |
| 接触镀层厚度 | 2.54 µm [ 100 µin ] | 线规或范围 - AWG | 2,050 â 5,180 |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | 非扩张内径 | .195 |
| 外径-未扩张 | 4.9 mm [ .19 in ] | ||
产品信息
| 类型 | Ring Tongue Terminal | 产品特性 | Serrated Termination |
| 可密封 | 否 | 检查插槽 | 否 |
| 制造商全称 | AMP | ||
环境参数
| 工作温度 | 105 | ||
