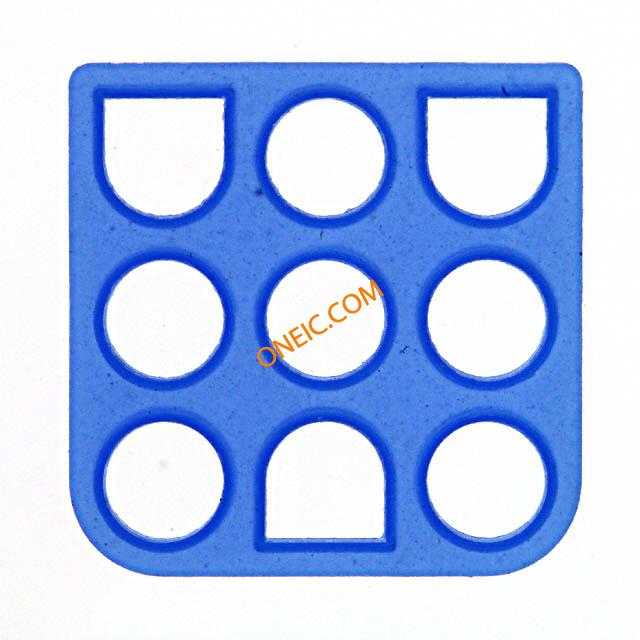

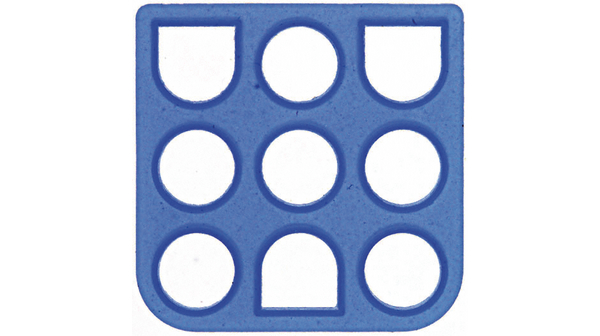

794277-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Interface Seal 9 POS Silicon Rubber Blue .250" Centerline, 600 V, 19 - 36 A max CONN INTERFACE SEAL 9POS UMNL 9 way Mate-N-Lok interface seal Power to the Board SPLASH PROOF SEAL 9P Interface Connector Accessories Interface Seal 9 POS Silicon Rubber Blue Product Highlights:AccessoryUniversal MATE-N-LOK Product LineAccessory Type = Interface SealRow-to-Row Spacing = 6.35 mmMatrix Contact LayoutSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP INTERFACE SEAL, 9WAY Connector,SoftShell;UniversalMATE-N-LOK;9;19;600;SiliconRubber;Blue Profile gasket; 6.35mm; PIN:9; Pin layout:3x3; Gasket: silicone Sealing plate, 794277-1, TE Connectivity TE Connectivity MATE-N-LOK系列 9路 蓝色 硅橡胶 接口密封, 适用于MATE-N-LOK连接器 09P UMNL INTERFACE SEAL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 600 V | 输出数量 | 9 |
| 最大额定电流 | 19 A | 连接器类型 - 电压输入 | UniversalMATE-N-LOK |
机械参数
| 颜色 | Blue | 重量 | 0.022 |
| 导线线规 | :0.5mm² | 柱间距 | 6.35mm |
| 外壳镀层 | :Silicone Rubber | 安装样式 | Press Fit |
| 连接器用途 | profile gasket | 壳体材料 | Silicon Rubber |
| 包装数量 | 100 | 主要材料 | Interconnect |
| 端接样式 | Quick Connect | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Blue | 触点数 | 9 |
| 位数 | 9 | 中心触点表面处理 | 0.25 |
| 绝缘材料 - 材质 | silicone | 典型触点布局 | Matrix |
| 线规或范围 - AWG | 30-16 | 线规或范围 - mm² | :2.0mm² |
| 第一连接器安装特征 | 3x3 | 外径-未扩张 | :3.3mm |
产品信息
| SPG | 100 | 类型 | Interface Seal |
| 系列 | :Sealed Universal Mate-N-Lok | 产品特性 | Splash-Proof |
| CAD图纸 | 3D CAD Model | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Accessories | 附件类型 | Seal |
| 适配器系列 | Universal MATE-N-LOK | 单元数量 | 1 |
| 射频系列/标准 | 794277 | 适用产品/相关产品 | Universal MATE-N-LOK Series |
文档与媒体
相关型号
1-350782-9
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-0 BLK Power to the Board CAP HOUSE 9 POS BLACK UL94V-0 09P UMNL V0 CAP HSG BLACK 09P UMNL V0 CAP HSG BLACK Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
1-480707-9
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-2 BLK Power to the Board CAP HOUSE 9 POS BLACK UL94V-2 Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL CAP HSG BLK
1-480707-0
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS 94V-2 UNI-MATE Housing,receptacle,free hanging,9way Pin & Socket Connectors CAP HOUSE 9 POS Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, 3 ROW, 9 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;9;Receptacle(Cap);Nylon;19A Socket; wire-board; male/female; w/o terminals; PIN:9; 600V Receptacle housing Pitch6.35 mm Poles 9 Multi row / for panel mount MATE-N-LOK Universal, 1-480707-0, TE Connectivity 09P UMNL CAP HSG NATL
1-480706-2
te connectivity / amp
Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 9POS 94V-2 RED Power to the Board PLUG HOUSE 9 POS RED UL94V-2 Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL PLUG HSG RED
1-480706-9
te connectivity / amp
Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 9POS 94V-2 BLK Power to the Board PLUG HOUSE 9 POS BLACK UL94V-2 Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL PLUG HSG BLK
1-480707-2
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-2 RED Power to the Board CAP HOUSE 9 POS RED UL94V-2 1-480707-2 Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingHousing Gender = ReceptacleNot PreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL CAP HSG RED
1-480707-1
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS 94V-2 UNI-MATE Power to the Board CAP HOUSE 9 POS BROWN UL94V-2 Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingConnector Style = ReceptacleNot PreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON 09P UMNL CAP HSG BRN

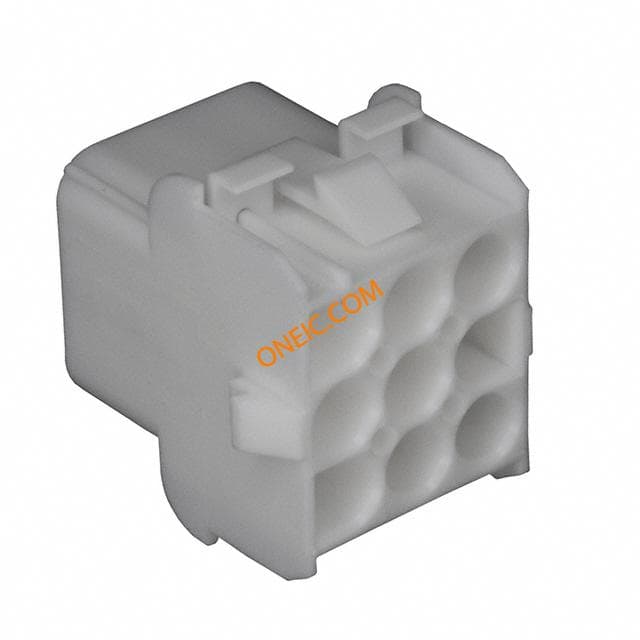

350782-1
