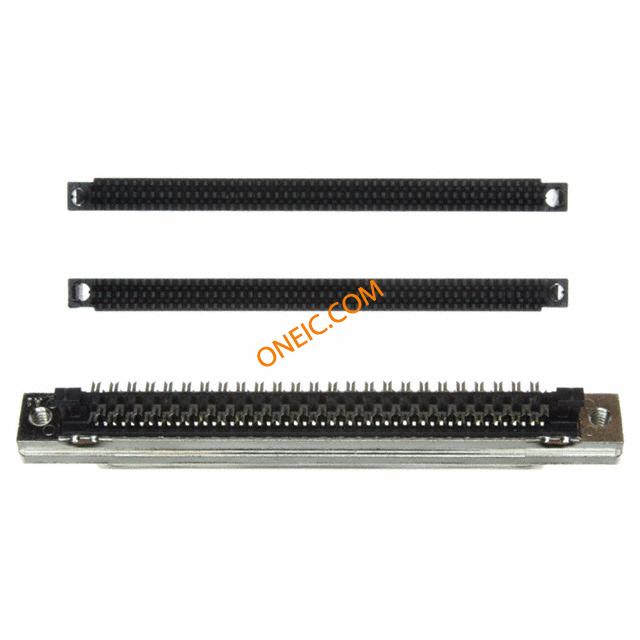

749877-9
| 制造商 | |
| 描述 | Conn SCSI RCP 100 POS 1.27mm IDT RA Cable Mount 100 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN RCPT 100POS .050 PNLMT COV I/O Connectors PNL MNT RCPT 100P 384 SCSI CONNECTOR RECEPTACLE 100POS IDC/IDT 100 50SR PANEL MOUNT RCPT |
| 分类 |
商业参数
| 产品 | SCSI Connectors | 交货时间 | 70 Days |
| 子类别 | Connector SCSI | 产品类别 | I/O Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 6 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | Not ELV/RoHS compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite 0.050 Series | 额定电压 | 30V |
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 重量 | 0.00001 | 包装方式 | Tube |
| 电缆类型 | Ribbon Cable, Round Jacketed Cable | 屏蔽类型 | No |
| 端接方式 | IDT | 螺纹尺寸 | 4-40 |
| 触头类型 | Signal | 第二连接器 | Without |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel over Copper |
| 连接器类型 | IDC | 接触镀层 | Tin-Lead over Nickel |
| 法兰特征 | Housing/Shell (4-40) | 安装导轨 | Without |
| 安装样式 | Cable | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Type |
| 触头材料 | Phosphor Bronze | 线缆终端 | Assembled |
| 壳体材料 | Thermoplastic | 面板安装类型 | With |
| 端接样式 | With | 触点数 | 100 |
| 接触件端接 | :IDC / IDT | 绝缘直径 | 0.74 â 0.91 [0.029 â 0.036] |
| 位数 | 100 | 外壳材料及表面处理 | Steel, Nickel Plated |
| 接触镀层厚度 | Flash | 线规或范围 - mm² | 0.05-0.09² [30-28] |
| 第一连接器安装类型 | :Cable | 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row |
产品信息
| 类型 | SCSI | 制动位 | Without |
| 连接器性别 | RCP | 系列 | Series III |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 连接类型 | Wire | 端口数 | 1 |
| 适用产品/相关产品 | 5-749877-9 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
文档与媒体
相关型号
5787170-9
te connectivity / amp
Conn SCSI RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 050 100R R/A .050 Series Board Mount Connectors CONN R/A RCPT 100POS .050 Conn SCSI RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 100PCB Mount Angle = Right AngleThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub WIRE-BOARD CONN, RCPT, 100POS, 1.27MM 100 50SR R/A RCP ASSY,RDSN L/F
1761028-5
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tube D-Sub Standard Connectors 050 100R R/A PCB .050 Series Board Mount Connectors CONN R/A RCPT 100POS .050 AMPLIMITE .050 d-sub PCB socket,100 way 1761028-5 Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tube Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub WIRE-BOARD CONN, RCPT, 100POS, 1.27MM Conn;D-Sub;PCBSocket;100Pos;RTAng;IIISeries;Solder TE Connectivity Amplimite .050 III 系列 1.27mm 节距 100 路 直角 通孔安装 PCB D-sub 连接器 插座 100 50SR R/A RCPT ASSY,LEADFREE
5749699-8
te connectivity / amp

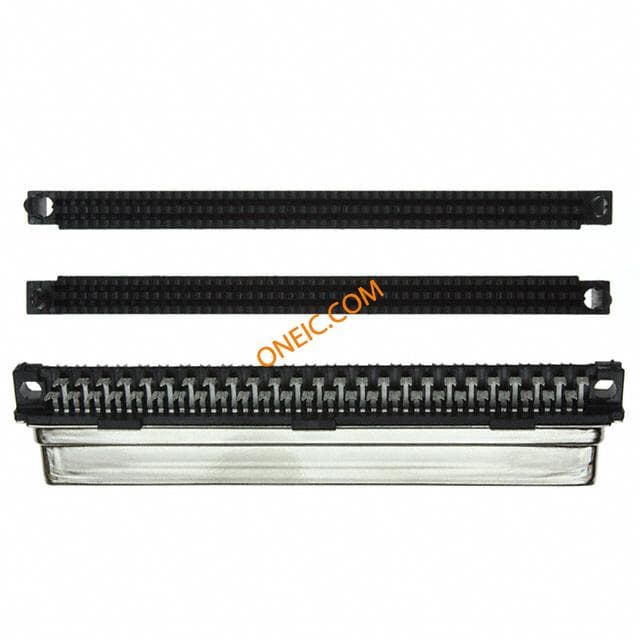

Conn SCSI RCP 100 POS 1.27mm IDT RA Cable Mount 100 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN RCPT 100POS .050SR W/COVER I/O Connectors SHIELDED RECPT 100P w/unassembled cvrs Conn SCSI RCP 100 POS 1.27mm IDT RA Cable Mount 100 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 100Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub SCSI CONNECTOR RECEPTACLE 100POS IDC/IDT 100 50SR CABLE RCPT KIT
