647892-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power F 2 POS Solder ST Thru-Hole 2 Terminal 1 Port Bag Power Connectors CONN PLUG 2POS 6AWG SILVER CRIMP Heavy Duty Power Connectors SERIES 50 CONN 6 AWG BLUE Conn Power F 2 POS Solder ST Thru-Hole 2 Terminal 1 Port Bag Product Highlights:Connector Kit50 AMP SeriesConnector Type = 2-Pole Battery ConnectorWire Size (AWG/CM) = 6 AWGCurrent = 50 Amps.Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant SRS 50 CONN KIT,BLUE,6 AWG |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600V | 供电电压 | 600 |
| 连接器阻抗 | 压接 | 最大额定电流 | 50A |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Blue | 宽度 | 35.05 mm [ 1.38 in ] |
| 高度 | 15.88 mm [ .625 in ] | 长度 | 48.23 mm [ 1.9 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 壳体颜色 | 蓝色 | 电缆类型 | 绞线 |
| 导线线规 | 6 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 电缆直径 | 25656 – 27629 |
| 连接器类型 | Assembly (Kit), Non Gendered | 接触镀层 | Silver |
| 紧固类型 | Spring Retention | 安装样式 | Through Hole |
| 排数 | 1 | 连接器样式 | 2 Poles |
| 触头材料 | Copper | 壳体材料 | Polycarbonate (PC) |
| 包装数量 | 1 | 面板安装类型 | 不带 |
| 端接样式 | 插针/插座 | 触点数 | 2 POS |
| 位数 | 2 | 外壳尺寸-插件 | 母端, 母端 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | 安装孔直径 | 带有 |
| 线规或范围 - AWG | 6 | ||
产品信息
| 类型 | Power | 连接器性别 | F |
| 产品子类型 | 连接器组件 | 端口数 | 1 Port |
| 应用细节 | Power | 装配配置 | Kit |
相关型号
647840-1
te connectivity / amp
Connector Accessories Reducing Bushing Power Connectors ACCY REDUCING BUSHING 6-12AWG Heavy Duty Power Connectors REDUCING BUSHING 6 AWG TO 10-12 AWG Connector Accessories Reducing Bushing Product Highlights:Reducing BushingAccessory Type = Reducing Bushing50 AMP SeriesWire Size (AWG/CM) = 6 to 10-12 AWGSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant REDUCING BUSHING,6AWG TO 10-12

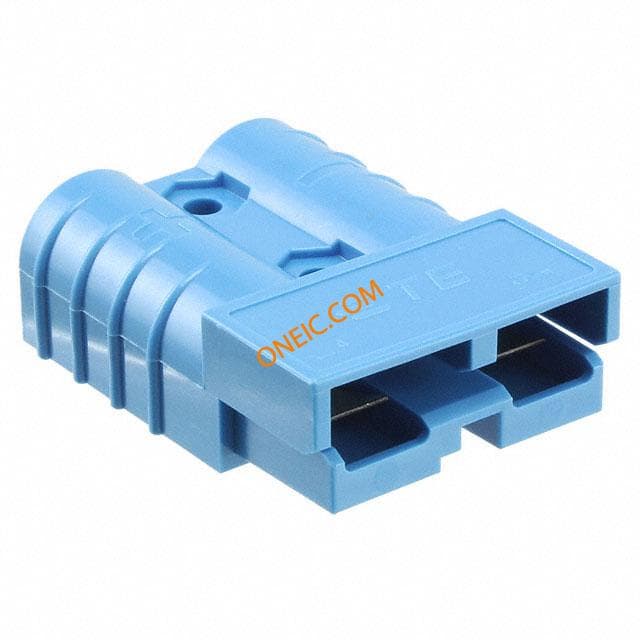

647845-5
