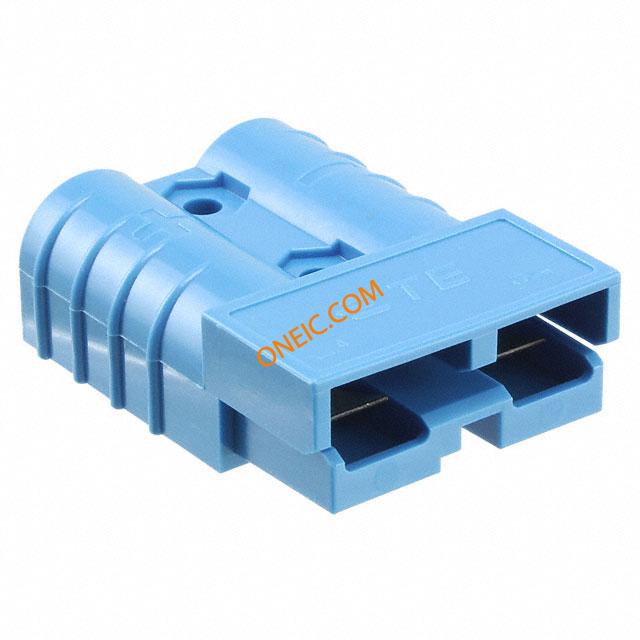

647845-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Battery RCP 2 POS ST Cable Mount 1 Terminal 1 Port Bulk Power Connectors CONN HOUSING 2POS BLUE Heavy Duty Power Connectors SERIES 50 HSG BLUE Conn Battery RCP 2 POS ST Cable Mount 1 Terminal 1 Port Bulk Product Highlights:Housing50 AMP SeriesConnector Type = 2-Pole Battery ConnectorCurrent = 50 Amps.Housing Color = BlueSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant SERIES 50 HOUSING,BLUE |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bag |
| 工厂包装数量 | 175 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 50 A |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Blue | 高度 | 15.88 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Non Gendered | 安装类型 | Cable Mount |
| 连接器类型 | Non Gendered | 接触镀层 | Silver |
| 紧固类型 | Spring Retention | 安装样式 | Cable |
| 排数 | 1 | 插入力 | Female / Male |
| 触头材料 | Copper | 壳体材料 | Polycarbonate (PC) |
| 总长度 | 35.05 mm | 端接样式 | Crimp |
| 触点数 | 2 | 堆叠方向 | Side to Side |
| 接触件端接 | Crimp | 位数 | 2 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | 线规或范围 - AWG | 12-6 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Battery |
| 连接器性别 | RCP | 系列 | 50 |
| 产品子类型 | Connectors | 端口数 | 1 Port |
环境参数
| 工作温度 | -20C to 105C | 结工作温度 | 105C |
相关型号
647892-5
te connectivity / amp
Conn Power F 2 POS Solder ST Thru-Hole 2 Terminal 1 Port Bag Power Connectors CONN PLUG 2POS 6AWG SILVER CRIMP Heavy Duty Power Connectors SERIES 50 CONN 6 AWG BLUE Conn Power F 2 POS Solder ST Thru-Hole 2 Terminal 1 Port Bag Product Highlights:Connector Kit50 AMP SeriesConnector Type = 2-Pole Battery ConnectorWire Size (AWG/CM) = 6 AWGCurrent = 50 Amps.Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant SRS 50 CONN KIT,BLUE,6 AWG

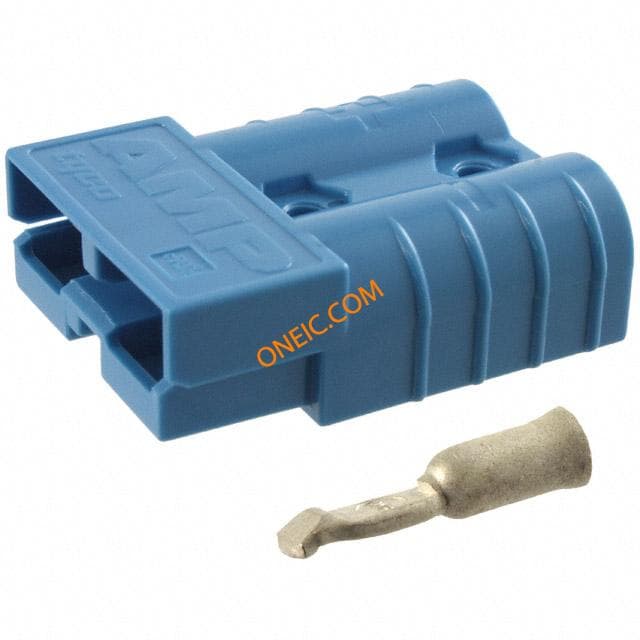

647893-5
