647402-4

点击放大查看

647402-4

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 4 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HOUSING RCPT 4POS CRIMP Headers & Wire Housings 04P SL156 HSG W/RMP&TABS OVSZ Conn Housing RCP 4 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 4Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P SL156 HSG W/RMP&TABS,OVSZ
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级已获认证
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR 7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

开关功能Locking Ramp供电电压250 VAC
连接器阻抗压接最大额定电流6.5

机械参数

颜色Natural间距3.96 mm
包装方式Bulk遮蔽类型No
壳体颜色自然出线方向180°
导线线规18-24 AWG触头类型Female Socket
极化Polarizing Tab第二连接器With
外壳颜色White安装类型Straight
连接器类型Crimp紧固类型Locking Ramp
安装样式不带排数1
外壳材料（壳体）盖连接器用途Receptacle
高度（英寸）6.35锁定特性Locking Ramp
壳体材料Nylon总长度.502
安装特性Without包装数量1
面板安装类型Without端接样式Crimp
第一触头极性Socket (Female)配接方向With
触点数4端接表面处理不带
接触件端接Crimp绝缘直径Large
位数4兼容外壳尺寸（如TM-700等）SL .156 端子
安装孔直径带有典型触点布局3.96 [0.156]
静电放电屏蔽不带

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列SL-156
产品特性Polarizing Key可密封否
制造商全称AMP产品子类型SL-156 Housings
应用细节Wire-to-Board

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
647402-4

相关型号

640445-4

640445-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 4P Square post tin Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, HEADER, THT, 3.96MM, 4WAY Connector,MTA-156;Male;4;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:4 Pin header straight 4P, 640445-4, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 04P MTA156 HDR ASSY FL/STR SN

¥0.6025
详情
644759-4

644759-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .156 GOLD

详情
644753-4

644753-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN Header Vertical 4 way Pin MTA-156 Headers & Wire Housings HDR 04P VRT F-LOCK Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HeaderVertical4wayPinMTA-156 TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 04P MTA156 HDR ASSY RN STR F/L

¥0.8616
详情
644751-4

644751-4

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN Headers & Wire Housings 4P HDR ASSY R/A Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HDR ASSY R/A

¥1.1091
详情
641210-4

641210-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 4POS 30AU Headers & Wire Housings FRCTN LK HDR RA 4P Square post gold Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HRD FL RA FB 30AU

¥5.9840
详情
640389-4

640389-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR RA 4P Square post tin Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.156", 4WAY Connector,MTA-156;Male;4;CopperAlloy;7;600;0.156in.;Polyester;White Pin strip 90° 4P, 640389-4, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 04P MTA156 HDR ASSY SQ R/A F/L

¥1.3097
详情
644760-4

644760-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .156 GOLD

详情
暂无图片

641202-4

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS STR .156 30GOLD Headers & Wire Housings 04P MTA156 HDR ASSY PL ST 30AU 04P MTA156 HDR ASSY PL ST 30AU 04P MTA156 HDR ASSY PL ST 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.3728
详情
640385-4

640385-4

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 4P Square post tin Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HDR ASSY SQ R/A

¥0.8636
详情
暂无图片

644754-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS R/A .156 TIN Headers & Wire Housings 04P MTA156 HDR ASSY SQ R/A F/L MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.1080
详情
640388-4

640388-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN Headers & Wire Housings FRCTN LK HDR STR 4P Round post tin Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, 4WAY, VERTICAL Connector,MTA-156;Male;4;CopperAlloy;7;600;0.156in.;Polyester;White 04P MTA156 HDR ASSY RN STR F/L

¥0.6093
详情
3-641210-4

3-641210-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 4POS 30AU Headers & Wire Housings FRCTN LK HDR RA 4P Square post gold Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 3.96MM 04P MTA156 HDR FLRA FB 30AU LF

¥6.1472
详情
644752-4

644752-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN Headers & Wire Housings 04P MTA156 HDR ASSY Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 3.96MM MTA-156HEADER-TIN,04PMTA156HDRASSYSQSTRF/L 04P MTA156 HDR ASSY SQ STR F/L

¥0.7616
详情
641208-4

641208-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 4POS 30AU Headers & Wire Housings FRCTN LK HDR STR 4P Square post gold Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HDR ASSY FL ST 30AU

¥3.8760
详情
3-641208-4

3-641208-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS .156 30 GOLD Headers & Wire Housings FRCTN LK HDR STR 4P Square post gold Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 3.96MM MTA-156HEADERGOLD,04PMTA156HDRASSYFLST30AU TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 7A 04P MTA156 HDR ASSY FL ST 30AU

¥3.8760
详情

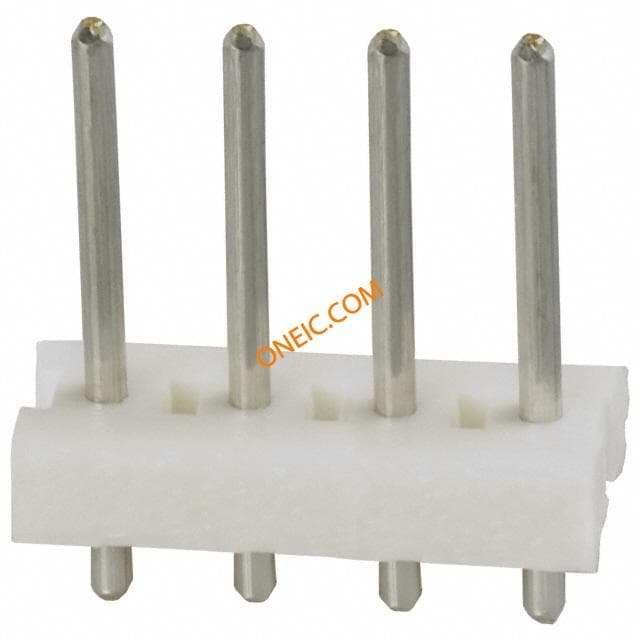

640384-4
