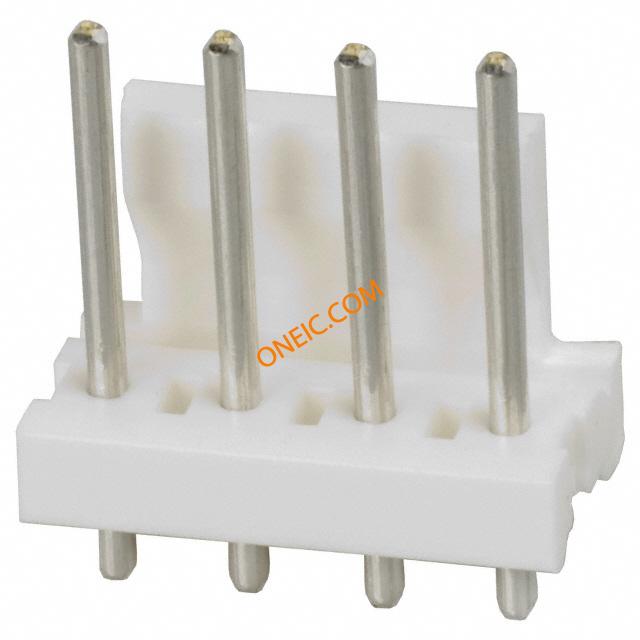

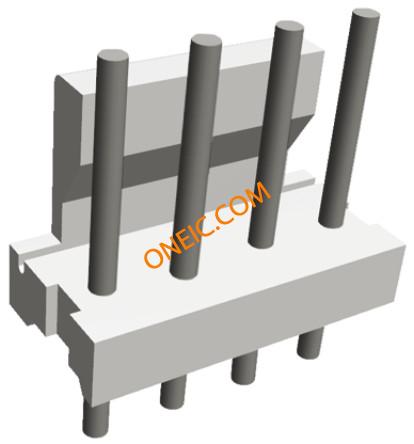

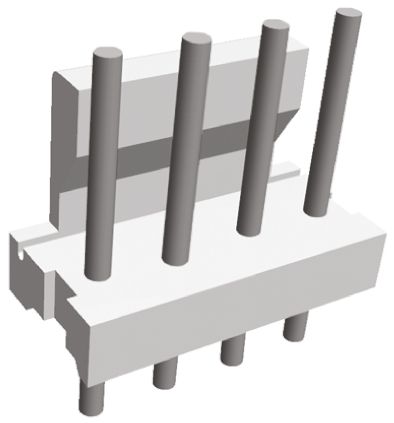

644753-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN Header Vertical 4 way Pin MTA-156 Headers & Wire Housings HDR 04P VRT F-LOCK Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HeaderVertical4wayPinMTA-156 TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 04P MTA156 HDR ASSY RN STR F/L |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 600 V ac | 开关功能 | Friction Lock |
| 供电电压 | 600 | 最大额定电流 | 7A |
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 高度 | 13.34 mm [ .525 in ] | 长度 | 15.85 mm [ .624 in ] |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 方向 | 直 | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin |
| 触点时序 | Without | 紧固类型 | Friction Lock |
| 安装样式 | 不带 | 引脚数 | 4 |
| 排数 | 1 | 封装形式 | Plug |
| 壳体镀层 | Nickel | 插入件材料 | 铜合金 |
| 触头材料 | Copper | 壳体材料 | Polyester |
| 包装数量 | 1 | 面板安装类型 | 通孔 - 焊接 |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 位数 | 4 | 兼容外壳尺寸（如TM-700等） | MTA .156 连接器组件或 SL .156 连接器组件 |
| 安装孔直径 | 不带 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式 | 接触长度 - 配合 | 0.400" (10.16mm) |
| 端子柱长度 | 4.45 mm | 静电放电屏蔽 | 不带 |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MTA-156 | 覆盖范围 | 无覆盖 |
| 产品子类型 | Headers | 应用细节 | Wire-to-Board |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
