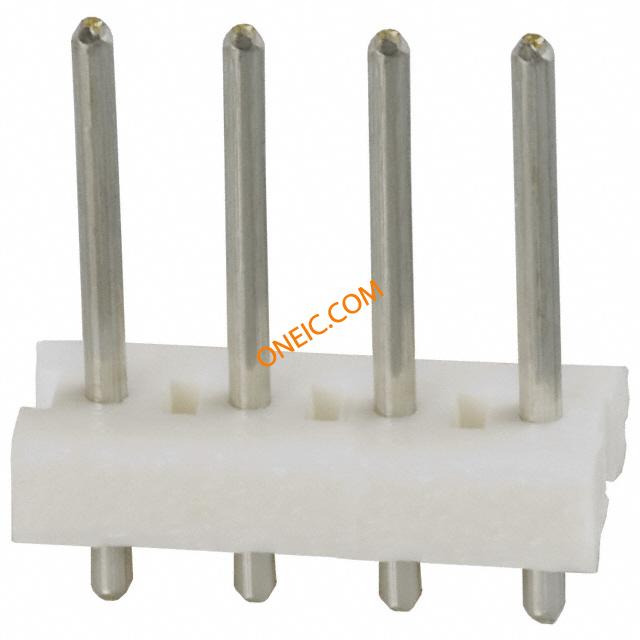

640384-4

点击放大查看

640384-4

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN Conn Unshrouded Header HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:4 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HDR ASSY STR RND SN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0

电气参数

供电电压600接触电阻3 mohm
最大额定电流7/Contact A最小供电电压600VAC

机械参数

颜色Natural深度6.35 mm
间距3.96 mm高度13.34 mm
长度15.85 mm [ .624 in ]密封型Not Sealed
包装方式Bulk端接方式Solder
触头类型Male Pin外壳颜色White
安装类型Through Hole连接器类型Header, Unshrouded
接触镀层Tin Over Nickel触点时序Without
安装样式Through Hole引脚数4
排数1封装形式Plug
壳体镀层Nickel插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
总长度15.85 mm包装数量2000
面板安装类型通孔 - 焊接端接样式插针
触点数4位数4
兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件安装孔直径不带
接触件表面处理 - 配合锡典型触点布局直插式
接触长度 - 配合0.400" (10.16mm)端子柱长度3.56 mm [ .14 in ]
接触镀层厚度15静电放电屏蔽不带

产品信息

类型Unshrouded Header连接器性别HDR
产品子类型公端应用细节Power
加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C
封装热阻1.6 mm [ .063 in ]
