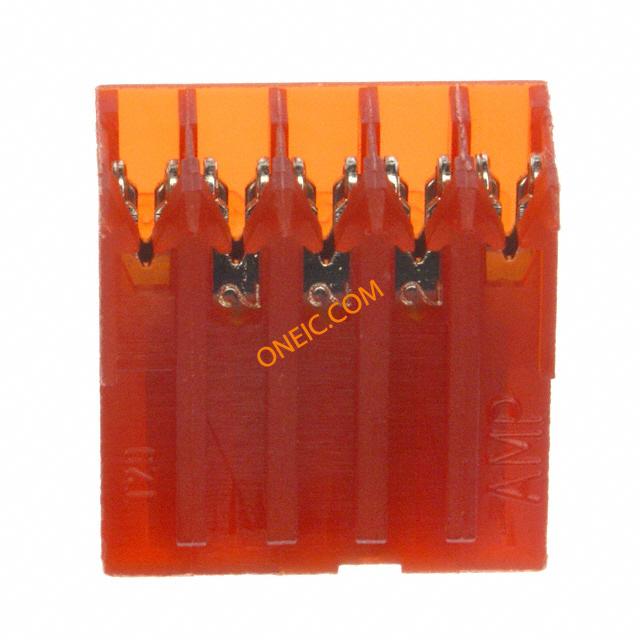

641237-5

点击放大查看

641237-5

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 5POS RED MTA-100 AU Headers & Wire Housings MTA .100 CONN 22-5 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称6412375标准包装规格500
产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2500

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态Not ELV/RoHS compliant材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
额定交流电压250最大额定电流5 A

机械参数

颜色Red间距2.54 mm
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable出线方向90°
导线线规22 AWG端接方式IDT
触头类型Female Socket第二连接器With
外壳颜色Red安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Gold Over Nickel
紧固类型Locking Ramp安装样式Wire
排数1连接器用途Receptacle
触头材料Copper Alloy壳体材料Nylon
安装特性Without包装数量Loose Piece
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数5
位数5典型触点布局2.54 [0.100]
接触镀层厚度3µin (0.08µm)恢复后小径No
线规或范围 - mm²0.3-0.4² [22]

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Closed End
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

文档与媒体

在线文档
641237-5?RQPN=641237-5

相关型号

2-644488-5

2-644488-5

te connectivity / amp

Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Header right angle 5 way Pin MTA-100 Headers & Wire Housings SHROUDED HEADER 5P Right Angle Post tin Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Headerrightangle5wayPinMTA-100 TE Connectivity MTA-100 系列 5路 2.54mm节距 直角 公 IDC 连接器 , 通孔 05P MTA100 SHRD HDR F/L R/A SN

¥2.4684
详情
3-647009-5

3-647009-5

te connectivity / amp

Conn IDC Connector F 5 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 5POS 24AWG .100 WHITE

详情
644803-5

644803-5

te connectivity / amp

Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG .100 5POS TIN Headers & Wire Housings 05P MTA100 SHRD HDR ASSYT RA FL

¥2.4004
详情
644486-5

644486-5

TE Connectivity / AMP

Headers & Wire Housings SHROUDED HEADER 5P Straight Post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 5POS TIN Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector5 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.1760
详情
641214-5

641214-5

te connectivity / amp

Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 5POS 30AU Headers & Wire Housings POLARIZED HEADER 5P R.A. Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥5.4400
详情

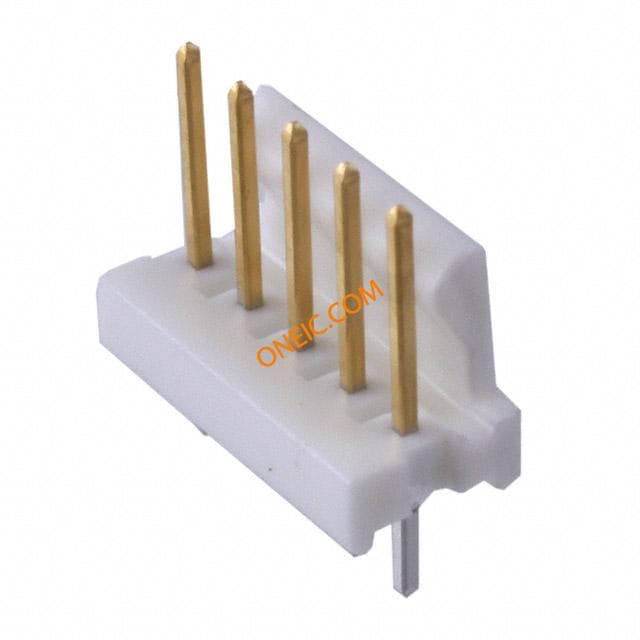

3-641126-5

3-641126-5

te connectivity / amp

Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS STR .100 15GOLD TE Connectivity MTA-100 Series 2.54mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings HDR 05P VRT F-LOCK Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, HEADER, 2.54MM, 5WAY HeaderVert5wayPinMTA-100 TE Connectivity MTA-100 系列 2.54mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 05P MTA100 HDR ASY FL/STR LF

¥3.3184
详情
644875-5

644875-5

te connectivity / amp

Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS R/A .100 TIN Headers & Wire Housings 05P MTA100 HDR ASSY F/L SP BND Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY F/L,SP BND

¥2.9240
详情
3-647001-5

3-647001-5

te connectivity / amp

Conn IDC Connector F 5 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 5POS 24AWG .100 WHITE Headers & Wire Housings 05P MTA100 PSTD CONN ASSY SN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = ReceptacleConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 PSTD CONN ASSY SN

¥3.8488
详情
641213-5

641213-5

te connectivity / amp

Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 5POS 30AU Headers & Wire Housings POLARIZED HEADER 5P Straight Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY PO/ST 30AU

¥3.7400
详情

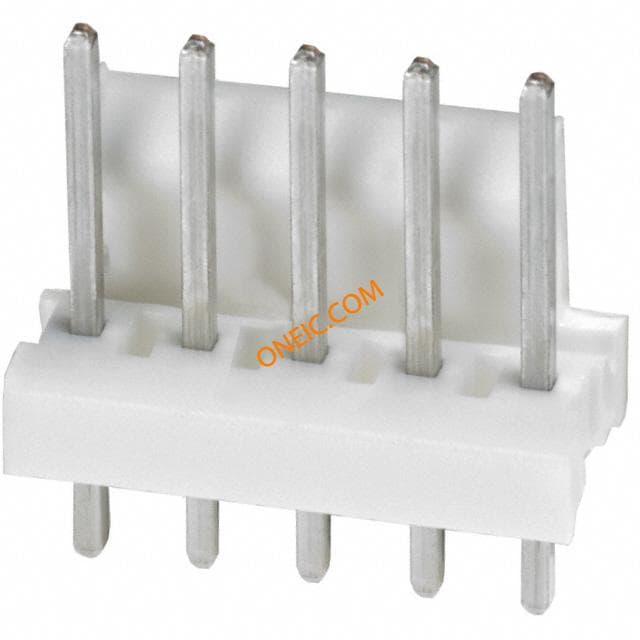

640456-5

640456-5

te connectivity / amp

Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 5POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 5P Straight Post tin Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, HEADER, THT, 2.54MM, 5WAY Header,FrictionLock;MTA-100;5;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:5; tinned; 2.54mm Pin header 5P, 640456-5, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 05P MTA100 HDR ASSY F/L SQ STR

¥0.5957
详情
3-641214-5

3-641214-5

te connectivity / amp

Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 5POS 30AU Headers & Wire Housings HDR R/A .100 5P 30AU Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY PO/RA LF

¥5.9432
详情
3-644694-5

3-644694-5

te connectivity / amp

Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Headers & Wire Housings HDR 5 POS R/A TIN 05P MTA100 R/A HDR RETENTIVE

¥1.3083
详情

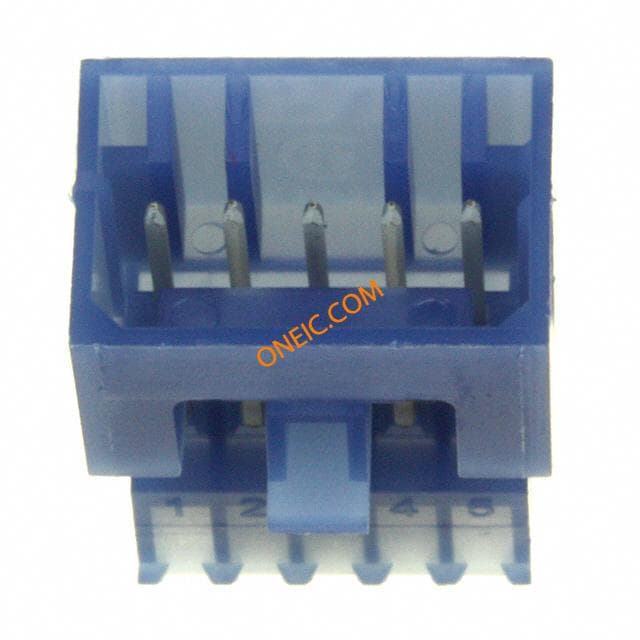

3-647002-5
