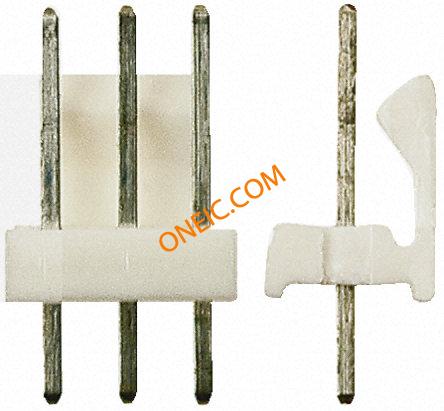

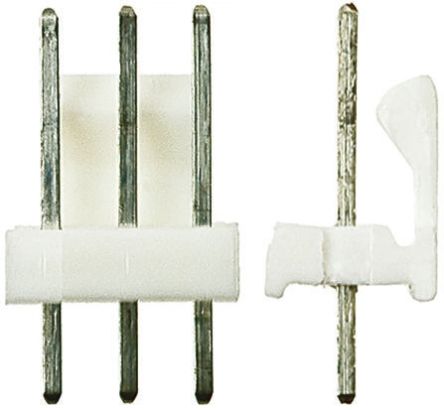

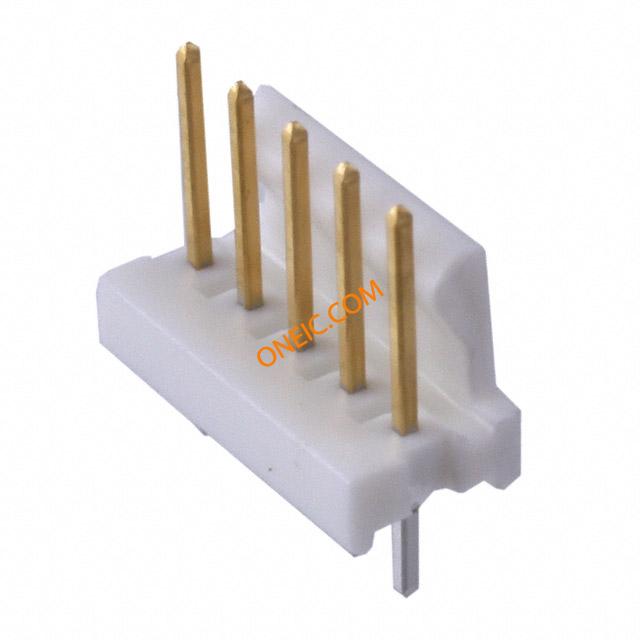

3-641126-5

点击放大查看

3-641126-5

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS STR .100 15GOLD TE Connectivity MTA-100 Series 2.54mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings HDR 05P VRT F-LOCK Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, HEADER, 2.54MM, 5WAY HeaderVert5wayPinMTA-100 TE Connectivity MTA-100 系列 2.54mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 05P MTA100 HDR ASY FL/STR LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量200

合规参数

RoHSLead free / RoHS Compliant海关税号85366930
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - MTA-100 Series额定电压250 V ac
开关功能Friction Lock接触电阻6 mohm
额定交流电压250最大额定电流5A
最小供电电压250VAC

机械参数

颜色Natural深度5.72 mm
间距2.54 mm高度10.03 mm
重量0.02包装方式Bulk
遮蔽类型No端接方式Solder
触头类型Male Pin第二连接器With
触点形状Square外壳颜色White
安装类型Vertical连接器类型Header, Unshrouded
接触镀层Gold Over Nickel紧固类型Friction Lock
安装样式Through Hole排数1
连接器用途Header锁定特性Friction Lock
触头材料Copper Alloy壳体材料Polyester
总长度12.7 mm安装特性Without
面板安装类型Without主要材料WiretoBoard
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)配接方向Without
触点数5接触件端接:Through Hole Vertical
位数5后壳中断功能Without
接触长度 - 配合0.295" (7.49mm)触点材料 - 柱Copper Alloy
端子柱长度3.56 [0.140]接触镀层厚度15µin (0.38µm)
恢复后小径No

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55C to 105C
