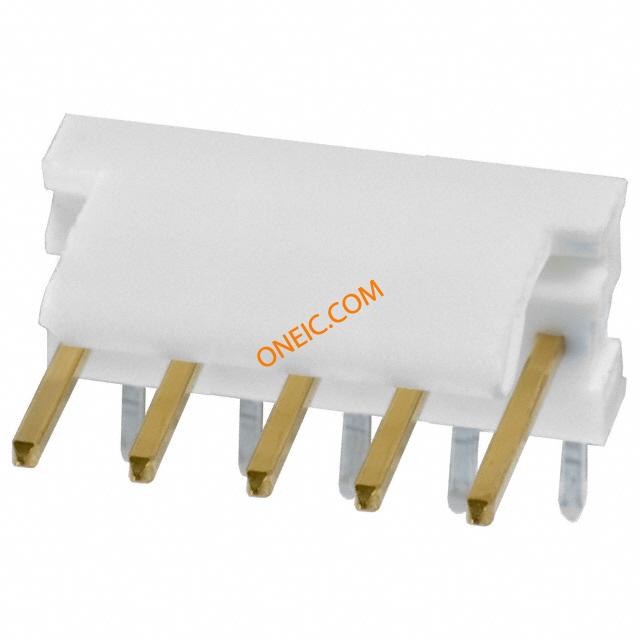

641214-5

制造商	TE Connectivity Ltd.
描述	Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 5POS 30AU Headers & Wire Housings POLARIZED HEADER 5P R.A. Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	A23913	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Contains lead / RoHS non-compliant	无铅定义	Not suitable for lead free processing
RoHS/ELV合规状态	Not ELV/RoHS compliant	材料阻燃等级	UL 94V-0

电气参数

额定电压	250 V	额定交流电压	250
最大额定电流	5 A

机械参数

颜色	Natural	间距	2.54 mm
包装方式	Bulk	遮蔽类型	No
端接方式	Solder	触头类型	Male Pin
第二连接器	Without	触点形状	Square
外壳颜色	White	安装类型	Right Angle
连接器类型	Header, Unshrouded	接触镀层	Gold Over Nickel
排数	1	连接器用途	Header
触头材料	Copper Alloy	壳体材料	Polyester
安装特性	Without	面板安装类型	Without
尺寸/外形	0.64 [.025]	端接样式	Through Hole
第一触头极性	Pin (Male)	配接方向	With
触点数	5	位数	5
后壳中断功能	Without	典型触点布局	2.54 [0.100]
接触长度 - 配合	0.295" (7.49mm)	触点材料 - 柱	Copper Alloy
端子柱长度	3.56 [0.140]	接触镀层厚度	30µin (0.76µm)
恢复后小径	No

产品信息

类型	Wire to Board	连接器性别	HDR
系列	MTA-100	产品特性	Polarizing Key
制造商全称	AMP	产品子类型	MTA-100 Connectors
连接类型	Printed Circuit Board	应用细节	Wire-to-Board
加载位置数	All	跳过的位置数	None
