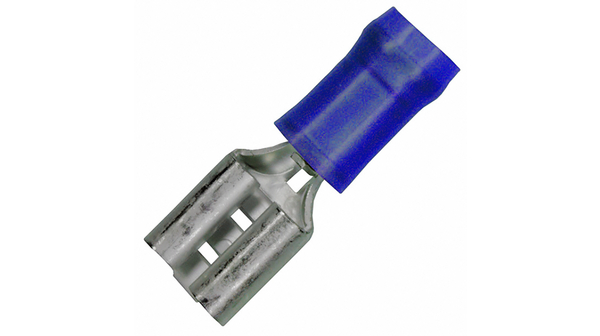

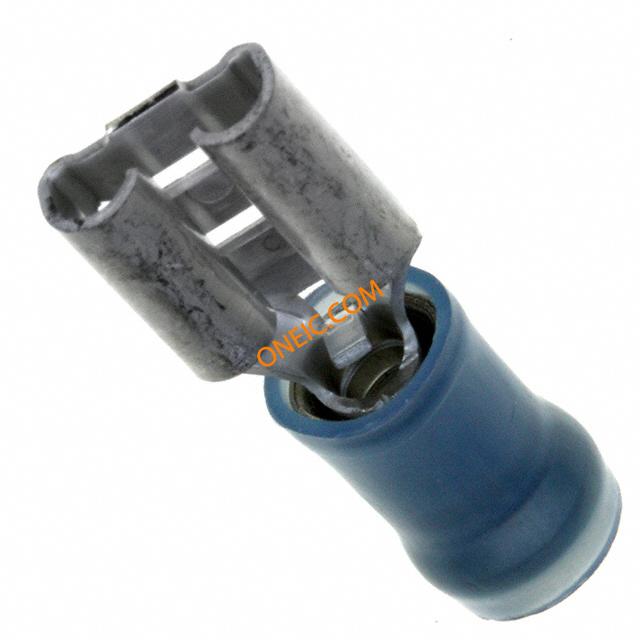

640905-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-16AWG F 23.37mm 7.62mm Tin Loose Piece Terminals PIDG RECPT 16-14 AWG blue Quick Disconnect Receptacles - Insulated CONN RECEPT FASTON 14-16AWG .250 Receptacle terminal,PIDG FASTON 250,blue Quick Disconnect Terminal 14-16AWG F 23.37mm 7.62mm Tin Loose Piece Product Highlights:Proprietary Name = PIDG FASTONReceptacle Style = StraightWire Range = 1.25-2.00² [16-14] mm [AWG]Tab Fit = 6.35 x 0.81 mmInsulation Diameter = 4.32 [.170] Max. mm [in]Search Keywords:Terminals and Splices TERMINAL, FEMALE DISCONNECT, 6.35MM BLUE CRIMP TERMINAL, FEMALE, BLUE AMP;RECEPTACLE;16-14AWG;DIMPLEW/WIRESTOP;TINPLATEDBRASS Terminal: flat; 6.3mm; 0.8mm; female; 1.25÷2mm2; crimped; for cable Blade receptacle insulated Faston, 1.5...2 mm², 16...14 AWG, FASTON-250, 640905-1, TE Connectivity TE Connectivity PIDG FASTON .250 系列 蓝色 绝缘 压接插座 , 6.35 x 0.81mm, 镀锡触芯 RECEPT,PIDG FASTON 16-14 250 |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| UL等级 | Approved | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Blue | 深度 | 7.62 mm |
| 宽度 | :6.35mm | 表面处理 | Tin |
| 重量 | 1.383 | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.46 [0.018] | 绝缘类型 | Insulated |
| 插片长度 | 0.305" (7.75mm) | 导线线规 | 16-14 |
| 方向 | straight | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | :Female Disconnect |
| 接触镀层 | Tin | 安装样式 | for cable |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 插入力 | Normal | 触头材料 | Brass |
| 套圈材料 | insulated | 绝缘颜色 | :Blue |
| 总长度 | 0.900" (22.86mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Insulation Support | 连接器颜色 | :Blue |
| 绝缘直径 | 4.32 [.170] Max. | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | No | 线规或范围 - AWG | 2,050 â 5,180 |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | 触点材料 - 镀层 | tinned |
| 外径-未扩张 | :4.32mm | ||
产品信息
| SPG | 1 | 类型 | Quick Disconnect Ter |
| 连接器性别 | Female | 系列 | 250 |
| 纹理 | Dimple with wire stop | CAD图纸 | 3D CAD Model |
| 单元数量 | 1 | 专有名称 | PIDG FASTON |
环境参数
| 工作温度 | :105°C | ||
