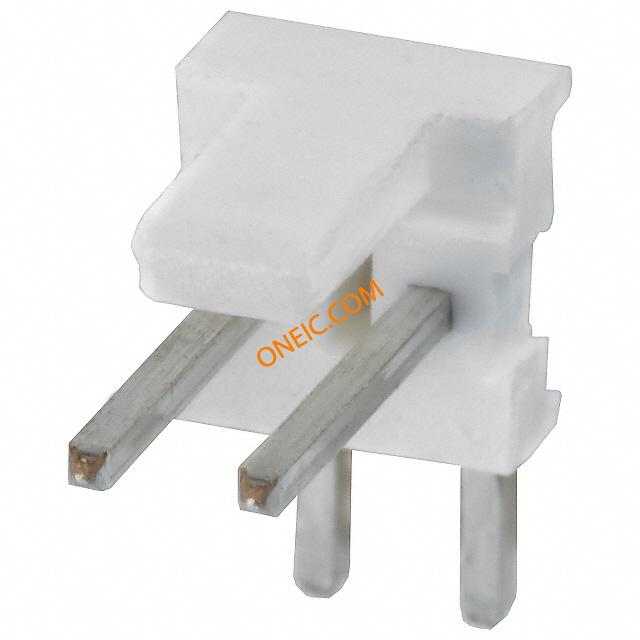

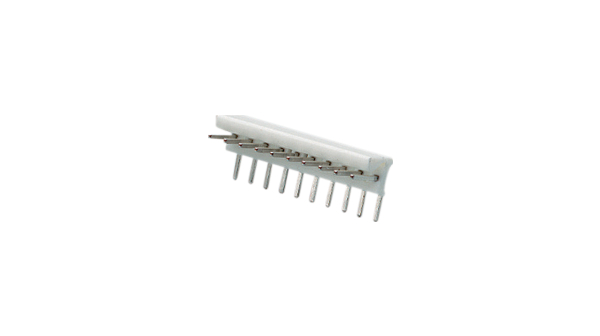

640457-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 2P Right Angle Post tin Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, HEADER, THT, RA, 2.54MM, 2WAY Header,FrictionLock;MTA-100;2;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:2; tinned; 2.54mm Pin header angled 2P, 640457-2, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 HDR ASSY SQ R/A F/L |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant,UL94V-0 |
| 海关税号 | 85369010 | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认证机构 | CSA,UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - MTA-100 Series | 额定电压 | 250 V ac |
| 开关功能 | Friction Lock | 工作电压 | :250V |
| 接触电阻 | 6 mohm | 额定交流电压 | 250 |
| 最大额定电流 | 5A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 深度 | 11.04 mm |
| 间距 | 2.54 mm | 高度 | 5.71 mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 端口尺寸 | 0.025in. | 遮蔽类型 | No |
| 方向 | angled 90° | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 引脚长度（针脚） | 0.14" | 柱间距 | 2.54mm |
| 第二连接器 | With | 触点形状 | Square |
| 外壳颜色 | White | 安装类型 | Right Angle |
| 行程角度 | Right | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 连接器用途 | Header | 锁定特性 | Friction Lock |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 总长度 | 5.08 mm | 安装特性 | Without |
| 包装数量 | 500 | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 尺寸/外形 | 0.64 [.025] |
| 连接器 - 电缆 | socket | 插针孔直径 | 0.1" |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | Without | 触点数 | 2 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 2 |
| 后壳中断功能 | Without | 中心触点镀层工艺 | 0.100in. |
| 柱体长度（配合） | 0.14in. | 安装孔直径 | 0.04" |
| 接触长度 - 配合 | 0.295" (7.49mm) | 触点材料 - 柱 | Copper Alloy |
| 端子柱长度 | 3.56 [0.140] | 恢复后小径 | No |
| 触点材料 - 镀层 | tinned | 第一连接器安装特征 | 1x2 |
产品信息
| SPG | 630 | 类型 | Wire to Board |
| 连接器性别 | HDR | 系列 | MTA-100 |
| 产品特性 | Pinstrip,SquarePost | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | MTA-100 Connectors |
| 适配器系列 | MTA-100 | 连接类型 | Printed Circuit Board |
| 单元数量 | 1 | 应用细节 | Wire-to-Board |
| 加载位置数 | All | 跳过的位置数 | None |
环境参数
| 工作温度 | -55C to 105C | ||
