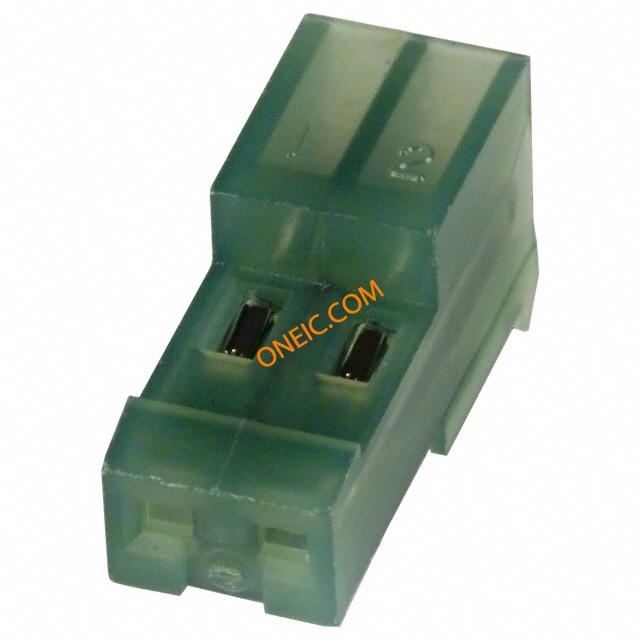

3-641537-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 2 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 28AWG MTA100 Conn IDC Connector RCP 2 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector2 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA100 CONN ASSY LF |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA分类 | 已认证 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 供电电压 | 250 | 额定交流电压 | 250 |
| 连接器阻抗 | IDC | 最大额定电流 | 5 |
机械参数
| 颜色 | Green | 间距 | 2.54 mm |
| 长度 | 5.08 | 包装方式 | Bulk |
| 遮蔽类型 | No | 导线类型 | Discrete or Ribbon Cable |
| 壳体颜色 | 白色 | 出线方向 | 90° |
| 电缆类型 | 分离式导线, 绞线 | 导线线规 | 28 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | Green |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Closed End |
| 接触镀层 | Tin Over Nickel | 触点时序 | Without |
| 紧固类型 | Locking Ramp | 安装样式 | 不带 |
| 排数 | 1 | 外壳材料（壳体） | 镍 |
| 连接器用途 | Receptacle | 高度（英寸） | 6.99 |
| 插入件材料 | 铜合金 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 安装特性 | Without |
| 包装数量 | Loose Piece | 面板安装类型 | Without |
| 电缆端接方式 | IDC | 端接样式 | 插座 |
| 配接方向 | Without | 触点数 | 2 |
| 端接表面处理 | 带有 | 绝缘直径 | 1.52 mm [ .06 in ] |
| 位数 | 2 | 衬套/护套类型 | 不带 |
| 兼容外壳尺寸（如TM-700等） | MTA .100 头和 MTA .100 IDC 柱形连接器 | 触头长度-柱 | 电源 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 2.54 [0.100] | 接触镀层厚度 | 80µin (2.03µm) |
| 恢复后小径 | No | 线规或范围 - mm² | 0.08-0.09² [28] |
| 静电放电屏蔽 | 带有 | 护套（绝缘）厚度 | .762 µm, 30 µin |
产品信息
| 备注 | LED connectors are designed to mate with 0.36-0.51 [.014-.020] diameter posts o | 类型 | IDC Connector |
| 连接器性别 | RCP | 产品特性 | Closed End |
| 可密封 | 否 | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 连接类型 | Wire |
| 跳过的位置数 | None | ||
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
