点击放大查看

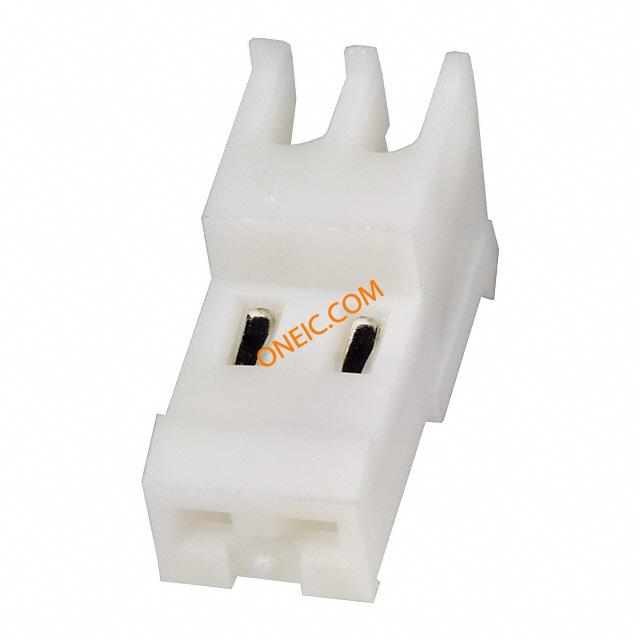

3-640621-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 24AWG MTA100 Connector FH IDC 2 way Rec 24AWG MTA-100 Headers & Wire Housings FEED THRU W/O TAB 2P white tin 24 AWG Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:2 PositionsWith ContactsHousing Gender = PlugContact Gender = ReceptacleConnector Style = Feed ThroughSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 2POS, 2.54MM ConnectorFHIDC2wayRec24AWGMTA-100 TE Connectivity MTA-100 系列 2路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 02P MTA100 CONN ASSY F/T NATL |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 V ac | 开关功能 | Ramp Lock |
| 额定交流电压 | 250 | 最大额定电流 | 5A |
机械参数
| 颜色 | White | 间距 | 2.54 mm |
| 重量 | 0.000001 | 包装方式 | Bulk |
| 遮蔽类型 | No | 导线类型 | Discrete or Ribbon Cable |
| 出线方向 | 90° | 导线线规 | 24 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Feed Thru |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 连接器用途 | Receptacle | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 安装特性 | Without |
| 包装数量 | Loose Piece | 面板安装类型 | Without |
| 主要材料 | IndustrialRectangular | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 配接方向 | Without | 触点数 | 2 |
| 接触件端接 | :IDC / IDT | 位数 | 2 |
| 典型触点布局 | 2.54 [0.100] | 接触镀层厚度 | 80µin (2.03µm) |
| 恢复后小径 | No | 线规或范围 - mm² | 0.2² [24] |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | MTA-100 | 产品特性 | Feed Through |
| 制造商全称 | AMP | 产品子类型 | MTA-100 Connectors |
| 连接类型 | Wire | 跳过的位置数 | None |
环境参数
| 工作温度 | +105°C | ||
相关型号
640454-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings POLARIZED HEADER 2P Straight Post tin Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 2WAY Header,Polarized;MTA-100;2;250VAC;Polyester;Tin;CopperAlloy;0.100in. Connector: wire-board; Series: MTA-100; male; socket; tinned; PIN:2 Pin header 2P, 640454-2, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 HDR ASSY SQ STR POL
2-644486-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN Headers & Wire Housings SHROUDED HEADER 2P Straight Post tin Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100SHROUDEDHDR,02PMTA100SHRDEDHDRASSYSN TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 SHRDED HDR ASSY SN
2-644488-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .100 TIN Headers & Wire Housings SHROUDED HEADER 2P Right Angle Post tin Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA100 SHRD HDR F/L R/A SN
3-644456-2
te connectivity / amp
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN Header 2 way pin 2.54mm MTA-100 Headers & Wire Housings NARROW FLT HDR 2P Straight Post Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 2WAY, 0.1IN HEADERASSEMBLY,NARROW,MTA-100,2POSITION,STRAIGHT TE Connectivity MTA-100 系列 2路 2.54mm节距 (1排) 直 引脚管座 , 焊接端接, 5A, 通孔 02P MTA100 HDR ASSY (NARROW)
640455-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .100 TIN Header right angle 2 way Pin MTA-100 Headers & Wire Housings POLARIZED HEADER 2P Right Angle Post tin Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 2.54MM MTA-100HEADER-TIN,02PMTA100HDRASSYSQR/APOL TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接 , 通孔 02P MTA100 HDR ASSY SQ R/A POL
644877-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEAD 2POS R/A TIN Headers & Wire Housings 02P MTA100 HDR ASSY POL RET BND 02P MTA100 HDR ASY POL,RET BND 02P MTA100 HDR ASY POL,RET BND Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
641122-2
te connectivity / amp
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 02P MTA100 HDR ASSY PL SQ STR MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS STR .100 15GOLD
3-647011-2
te connectivity / amp
Conn IDC Connector F 2 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 28AWG .100 GREEN
3-647008-2
te connectivity / amp
Conn IDC Connector F 2 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 22AWG .100 RED Headers & Wire Housings 02P MTA100 PSTD CONN ASSY LF 02P MTA100 PSTD CONN ASSY LF

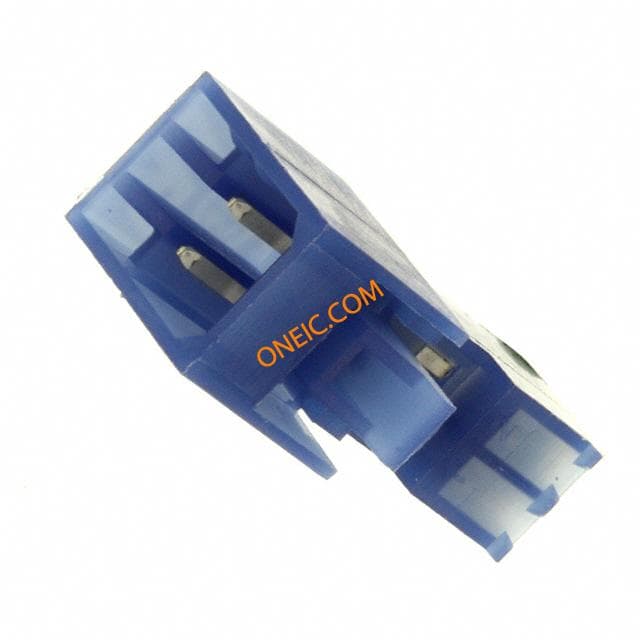

3-647002-2
