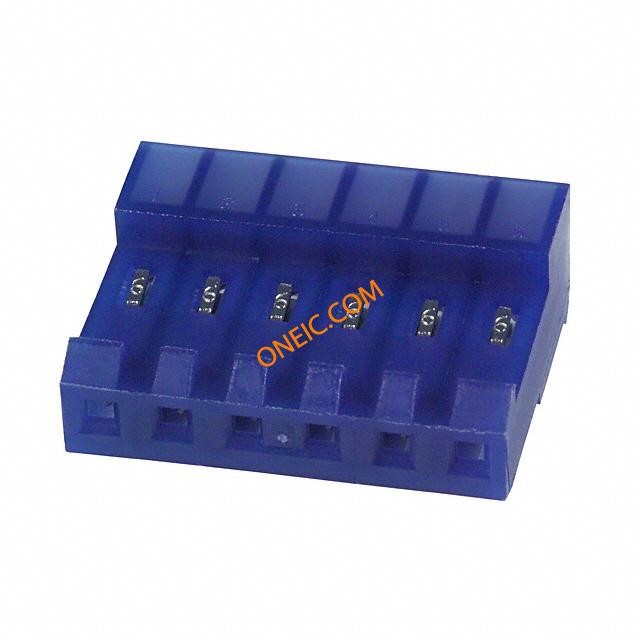

640430-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 26AWG MTA156 Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 CONN ASSY 26AWG BLU |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 供电电压 | 600 | 接触电阻 | 3 mohm |
| 连接器阻抗 | IDC | 最大额定电流 | 7/Contact A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Blue | 深度 | 9.02 mm |
| 间距 | 3.96 mm | 高度 | 18.42 mm |
| 长度 | 23.77 mm [ .936 in ] | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 壳体颜色 | 白色 |
| 电缆类型 | 分离式导线, 绞线 | 导线线规 | 26 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 外壳颜色 | Blue | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Tin-Lead Over Nickel |
| 触点时序 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | Cable | 排数 | 1 |
| 外壳材料（壳体） | 标准 | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 总长度 | 23.77 mm | 包装数量 | 250 |
| 面板安装类型 | 不带 | 电缆端接方式 | IDC |
| 端接样式 | 插座 | 触点数 | 6 |
| 端接表面处理 | 带有 | 接触件端接 | Locking Lance |
| 绝缘直径 | 2.41 mm [ .095 in ] | 位数 | 6 |
| 兼容外壳尺寸（如TM-700等） | MTA .156 头 | 安装孔直径 | 不带 |
| 接触件表面处理 - 配合 | 锡铅 | 典型触点布局 | 同轴 |
| 表面贴装焊盘尺寸 | Without | 接触镀层厚度 | 80µin (2.03µm) |
| 静电放电屏蔽 | 带有 | ||
产品信息
| 备注 | 肋之间的条纹可能会减少 | 类型 | IDC Connector |
| 连接器性别 | F | 产品特性 | Closed End |
| 可密封 | 否 | 产品子类型 | 连接器 |
环境参数
| 工作温度 | -55C to 105C | ||
