60006-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG M Tin Loose Piece Terminals .250 SER FASTON TAB Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN UNINS TAB 14-18AWG 0.250 Tab crimp terminal, FASTON 250,AWG 18-14 Quick Disconnect Terminal 18-22AWG M Tin Loose Piece Product Highlights:TabTab Type = Wire CrimpUninsulatedTab Fit = 6.35 x 0.80 mmBrass MaterialSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, CRIMP TERMINAL, BLADE, PK10 Tabcrimpterminal,FASTON250,AWG18-14 FASTON6.3MALETAB TE Connectivity FASTON .250 系列 压接接头端子, 6.3 x 0.8mm, 镀锡触芯 FASTON 250 TAB 18-14 AWG .031 TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 标准包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 表面处理 | Tin | 重量 | 0.001001 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 6.35 x 0.80 [.250 x .031] | 电缆类型 | Regular Wire |
| 绝缘类型 | No | 导线线规 | 14-18 AWG |
| 端接方式 | Crimp | 安装类型 | Straight |
| 螺柱/焊片尺寸 | :6.35mm x 0.8mm | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | :Blade |
| 接触镀层 | Tin | 触头材料 | Brass |
| 绝缘颜色 | :(Not Available) | 总长度 | 0.840" (21.34mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Without |
| 连接器颜色 | :Tin | 绝缘直径 | 2.03-3.05 [.080-.120] |
| 绝缘材料 - 材质 | :(Not Available) | 安装孔直径 | Without |
| 线规或范围 - AWG | :22AWG | 线规或范围 - mm² | 0.30-0.90² [22-18] |
| 外径-未扩张 | :3.05mm | ||
产品信息
| 样式 | Straight | 连接器性别 | Male |
| 系列 | 250 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Tab | 其他规格 | Wire Crimp |
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
726386-2
te connectivity / amp
Quick Disconnect Terminal M 14mm 8mm Tin Loose Piece Terminals GDS-FLACHSTECK 6.3 Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB .250 TIN STRAIGHT Tab terminal, PCB, FASTON 250, straight Quick Disconnect Terminal M 14mm 8mm Tin Loose Piece Product Highlights:TabTab Type = Printed Circuit BoardTab Fit = 6.35 x 0.81 mmBrass MaterialTin FinishSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, TAB, STRAIGHT, 6.3X0.8MM CONN QC TAB 0.250 SOLDER CRIMP,TAB,STRT,6.35X0.8MM Terminal: flat; 6.3mm; 0.8mm; male; THT; brass; tinned; straight Faston-Tab Brass, 726386-2, TE Connectivity TE Connectivity FASTON .250 系列, 直向安装 PCB 插片接线端子, 6.35 x 0.81mm, 镀锡触芯 FASTON 250 TAB .032 TPBR
160650-3
te connectivity / amp
Quick Disconnect Terminal M 20.9mm 9mm Tin Over Copper Loose Piece Terminals /.250 FASTON TAB CONN UNINSUL TAB 0.250 PCB R/A Tab terminal, PCB, FASTON 250, 30° Quick Disconnect Terminal M 20.9mm 9mm Tin Over Copper Loose Piece Search Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, TERMINAL, PCB, TAB, HORIZONTAL, PK10 PCBTABHORIZONTAL
58078-3
te connectivity / amp
TOOL FRAME W/OUT DIES Crimpers TOOL FRAME W/OUT DIE HAND CRIMP TOOL/FASTOS(W/O DIES) Hand crimping tool frame, Ultra-Fast HAND CRIMP TOOL FASTOS Hand Crimping Tool Frame CRIMP TOOL, WITHOUT DIE, 14-26AWG AMP;RATCHETEDCRIMPTOOL;TOOL(LESSDIES) Crimping tool, 58078-3, TE Connectivity TE Connectivity Tetra-Crimp 系列 Ultra-Fast, Ultra-Fast Plus 压接工具框架 , 适用于26 → 14 AWG 线规格
575046-1
te connectivity / amp
D.A.H.T. TYPE F Hand Tools D.A.H.T. TYPE F Hand crimp tool 1 - AMP fast-on terminal Hand Tool To Open Crimping Jaws Handcrimptool1-AMPfast-onterminal TE Connectivity CERTI-CRIMP 系列 FASTON 250 Crimp Terminals 压接工具 , 适用于22 → 14 AWG 线规格 D.A.H.T. TYPE "F"

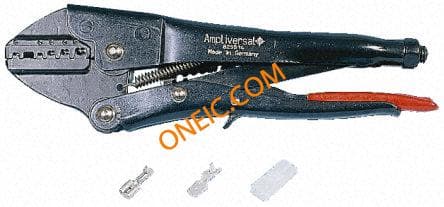

825514-1
