6-103904-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 14POS 30AU Headers & Wire Housings 14MTE HDR SRRA LATCH W/HLDWN Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MTE HDR SRRA LATCH W/HLDWN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A35037 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | 认可国家 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 600 V |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 高度 | 13.59 mm [ .535 in ] | 长度 | 38.1 mm [ 1.5 in ] |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 触点时序 | Without | 安装样式 | 带有 |
| 排数 | 1 | 壳体镀层 | Tin |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 安装特性 | 压具 |
| 包装数量 | 14 | 面板安装类型 | 直角 |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 14 | 端接表面处理 | 带有 |
| 位数 | 14 | 兼容外壳尺寸（如TM-700等） | 母端护套组件 |
| 触头长度-柱 | 3.3 mm [ .13 in ] | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 表面贴装焊盘尺寸 | Without | 端子柱长度 | 5.84 mm [ .23 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | 类型 | Shrouded |
| 系列 | AMPMODU MTE | 产品特性 | Board Lock |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 温度额定值 | High | 工作温度 | - 65 C to + 105 C |
| 封装热阻 | 1.574 mm [ .062 in ] | ||
文档与媒体
相关型号
6-103644-3
te connectivity / amp
Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 14 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Individual Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 14Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-103645-3
te connectivity / amp
Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts CONN RECPT 14POS .100 22-26 TIN Headers & Wire Housings 14 MTE RCPT SR LATCH .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 14Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Connector0.100CenterlineAMPMODU,26-22AWG 14 MTE RCPT SR LATCH .100CL
88859-7
te connectivity / amp
Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 014 HOUSING FFC RCPT SR 100CL FFC & FPC Connectors 014 RCPT SR 100CL Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 14Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
6-103734-3
te connectivity / amp
Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 14 MTE RCPT SR LATCH .100CL Headers & Wire Housings 14 MTE RCPT SR LATCH .100CL 14 MTE RCPT SR LATCH .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-103644-3
te connectivity / amp
Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 14POS 22-26AWG 15AU Headers & Wire Housings 14P 22-36 RECEPT .1 315 14 MTE RCPT SR LATCH .100CL
1-103734-3
te connectivity / amp
Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts CONN RCPT 14POS 26-22AWG 30GOLD Headers & Wire Housings 14 MTE RCPT SR LATCH .100CL 14 MTE RCPT SR LATCH .100CL 14 MTE RCPT SR LATCH .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-487378-3
te connectivity / amp
Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 14POS .100 SLIMLINE FFC & FPC Connectors 100X100 FFC HSG REC 1X14P Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 14Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 014 HOUSING FFC RCPT 100CL SR
1-104257-3
te connectivity / amp
Conn Housing RCP 14 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 14POS .1" POL UNLOAD Housing 14 way receptacle IDC AmpModu Headers & Wire Housings MTE RECPT 14P Conn Housing RCP 14 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 14Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM RECEPTACLE,AMPMODU,MTE,14POSITION,.100IN,SINGLEROW,LATCHED TE Connectivity AMPMODU MTE 系列 2.54mm 节距 14 路 母 PCB 连接器外壳 14 MTE RCPT HSG SR LATCH .100
487223-2
te connectivity / amp

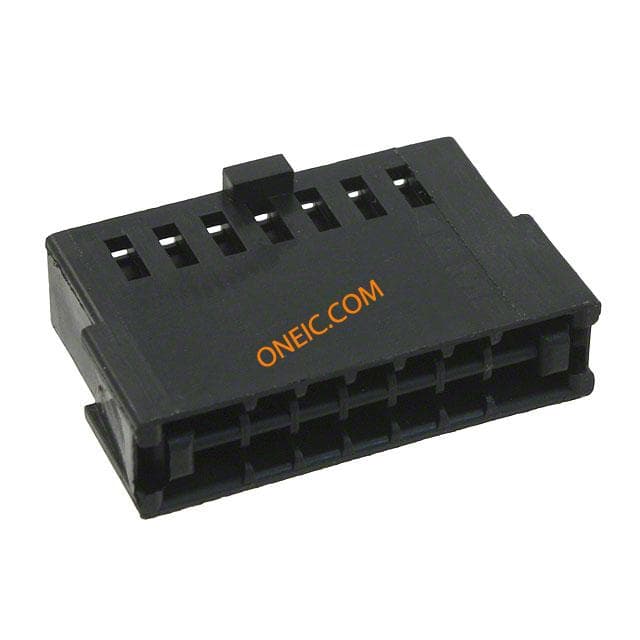

Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 014 HOUSING FFC RCPT 100CL DR FFC & FPC Connectors FFC RECPT HSG 14P 487223-2 Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 14Number of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
