首页产品分类连接器解决方案FFC/FPC连接器FFC/FPC连接器88859-7

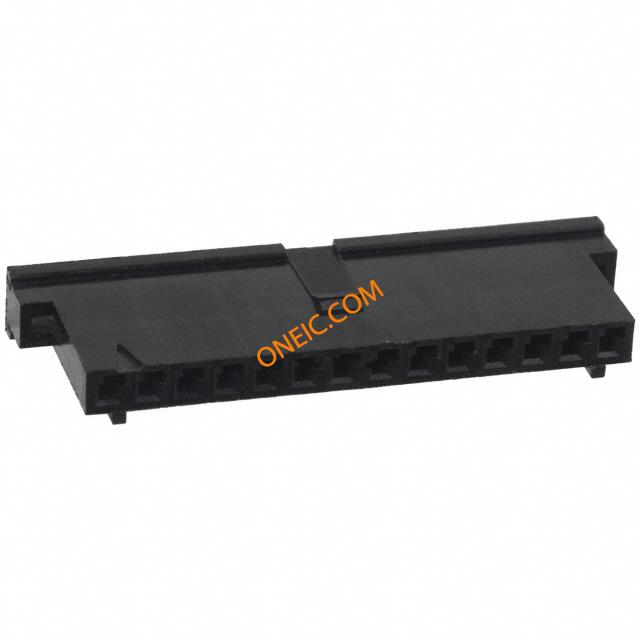

点击放大查看

88859-7

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 014 HOUSING FFC RCPT SR 100CL FFC & FPC Connectors 014 RCPT SR 100CL Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 14Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
分类	连接器解决方案FFC/FPC连接器FFC/FPC连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	FFC & FPC Connectors	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	Yes

电气参数

额定电压	300V	供电电压	300 VAC
输入电阻	5000	钳位电压	720
连接器阻抗	制动器	最大额定电流	2A

机械参数

颜色	Black	间距	2.54 mm
锁定类型	带有	包装方式	Bulk
壳体颜色	黑色	电缆类型	FFC
第二连接器	With	安装类型	Straight
连接器类型	Standard	排数	1
连接器用途	Receptacle	锁定特性	Detent
壳体材料	Thermoplastic	安装特性	Without
包装数量	1	面板安装类型	Without
端接样式	插座	FFC/FCB厚度	0.05-0.13mm
配接方向	With	触点数	14
位数	14	安装孔直径	带有
中心触点材料	2.54 [0.100]

产品信息

备注	Use Extraction Tool No. 91092-1 for round wire contacts.	类型	Housing
连接器性别	RCP	产品特性	Detent Lock
产品子类型	Housing	连接类型	FFC Cable

环境参数

工作温度

-65°C ~ 105°C
