6-103645-3

点击放大查看

6-103645-3

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 14 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Individual Product Highlights:HousingPreloadedNumber of Positions = 14Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
分类
连接器解决方案矩形连接器高可靠性矩形连接器

商业参数

标准包装数量Rail / Tube

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
材料阻燃等级UL 94V-0

电气参数

供电电压250 VAC输入电阻5000
连接器阻抗刺破式压接 (IDC), 压接最大额定电流3
保护额定电压（VPR）600 VACrms

机械参数

颜色Black间距2.54 mm
锁定类型Latch包装方式Tube
导线类型Discrete or Ribbon Cable壳体颜色黑色
导线线规22-26 AWG端接方式IDT
触头类型Female Socket第二连接器With
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Tin Over Nickel紧固类型Latch Lock
排数1插入件材料磷青铜
操作力Standard壳体材料热塑塑料
包装数量15电缆端接方式IDC
端接样式插座触点数14
绝缘直径.76 – 1.37 mm位数14
安装孔直径带有典型触点布局同轴
接触镀层厚度100µin (2.54µm)

产品信息

备注带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。类型IDC Connector
连接器性别RCP产品特性Closed End
产品子类型连接器

环境参数

测试温度标准部件 - 非辉光导线工作温度-65 – 105

相关型号

6-103655-3

6-103655-3

te connectivity / amp

14 MTE PIN SR RIBBED .100CL Headers & Wire Housings 14 MTE PIN SR RIBBED .100CL 14 MTE PIN SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥21.8160
详情

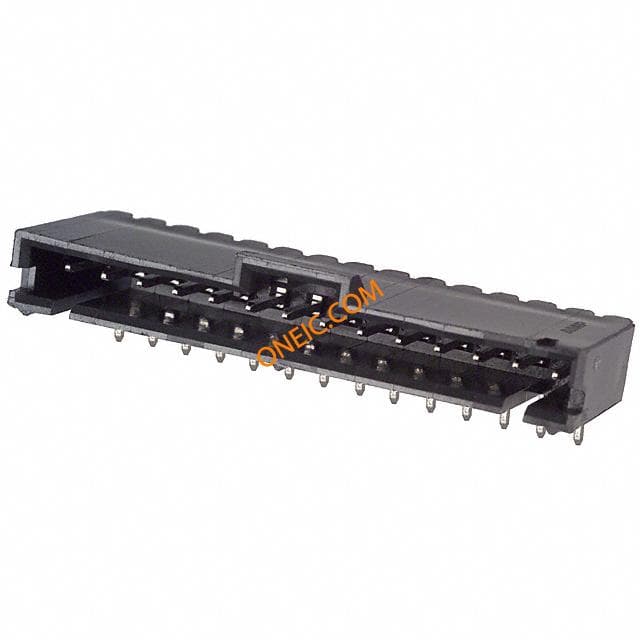

6-103634-3

6-103634-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 14POS PCB TIN Headers & Wire Housings 14P HDR SRRA .100CL Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 14Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MTE HDR SRRA LTCH.100CL LF

¥8.0273
详情
1-103653-3

1-103653-3

te connectivity / amp

Conn Housing PL 14 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings 14 SHRD PIN HSG SR LATCH .100 AMPMODU Headers, Housings & Contacts CONN PLUG 14POS .1" POL UNLOAD .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 14Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm 节距 14 路 直 公 电缆安装 PCB 连接器外壳 14 MTE SHRD PIN HSG SR LATCH

¥5.7600
详情
6-103673-3

6-103673-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 14POS 15AU Headers & Wire Housings 14P HDR SRRA LATCH WITH HOLD DOWN .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 14Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 14路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 14 MTE HDR SRRA LATCH W/HLDWN

¥9.0600
详情
6-104935-3

6-104935-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 14POS 30AU Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorConnector Type = Header - Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mm14 PositionsSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MTE HDR SRRA LTCH.100CL LF

¥14.9342
详情
6-103635-3

6-103635-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 14POS 15AU Headers & Wire Housings HDR PIN 1X14C R/A Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MTE HDR SRRA LTCH.100CL LF

¥7.8480
详情
6-103904-3

6-103904-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 14POS 30AU Headers & Wire Housings 14MTE HDR SRRA LATCH W/HLDWN Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MTE HDR SRRA LATCH W/HLDWN

¥11.0772
详情

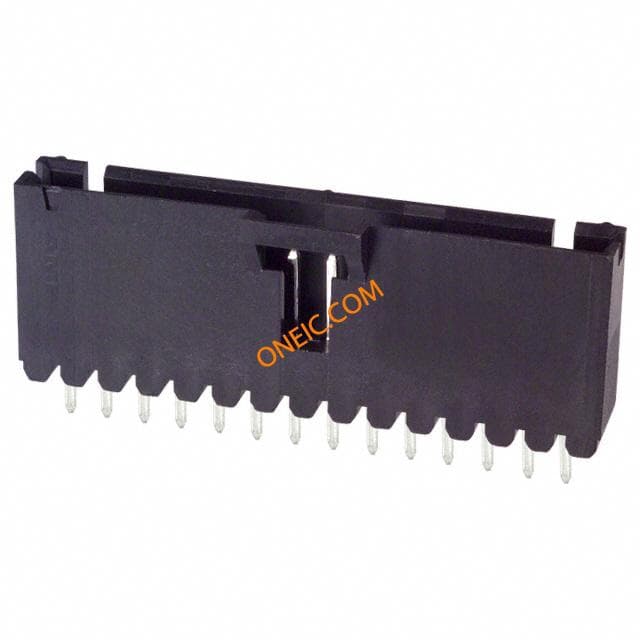

6-103639-3

6-103639-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 14POS PCB TIN Headers & Wire Housings LTCH HDR WO SWAGE 14 Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MTE HDR SRST LATCH .100CL

¥5.1120
详情
58336-1

58336-1

te connectivity / amp

Connector Accessories Pistol Grip Hand Tool Terminating Head Crimpers HEAD IDC W/O TOOL HEAD (IDC) MODU MTE W/O TL Pistol Grip Hand Tool Terminating Head TERMINATING HEAD, 58074-1 & 58075-1 CRIMP TOOL TERMINATINGHEADFORAMPMODUMTERECEPTACLEPISTOLGRIPTOOL 22-30 AWG Rectangular Crimp Heads (IDC) Tool Terminating head, 58336-1, TE Connectivity

¥15836.8800
详情
6-1375549-3

6-1375549-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 5.08mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 14POS IDC STR SMD TI Headers & Wire Housings 14 MTE VERT SMT HDR FULL LF-PB .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 14Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MTE VERT SMT HDR FULL LF-PB

¥9.5184
详情
6-147278-3

6-147278-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 14POS R/A SMD GOLD 14 MTE HDR SRRA SFMNT .100CL 14 MTE HDR SRRA SFMNT .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥14.7312
详情
6-104361-3

6-104361-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG .100 14POS 15A Headers & Wire Housings 14MTE HDR SRRA LATCH W/HLDWN .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 14Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MTE HDR SRRA LATCH W/HLDWN

¥10.3680
详情
6-147324-3

6-147324-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 14POS R/A TIN SMD Headers & Wire Housings 14 MTE HDR SRRA SMT.100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 14Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MTE HDR SRRA SMT.100CL

¥10.2197
详情
6-103660-3

6-103660-3

te connectivity / amp

Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 14 MTE SHRD PIN SR LATCH .100 Headers & Wire Housings 14 MTE SHRD PIN SR LATCH .100 14 MTE SHRD PIN SR LATCH .100 Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥23.9040
详情
6-104910-3

6-104910-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 14POS 15AU Headers & Wire Housings LTCH HDR WO SWAGE 14 Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 14Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MTE HDR SRST LATCH .100CL

¥6.7680
详情
6-103735-3

6-103735-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 14POS 30AU Headers & Wire Housings LTCH HDR WO SWAGE 14 Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 14Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MTE HDR SRST LATCH .100CL

¥7.4880
详情
6-104909-3

6-104909-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 14POS 15AU Headers & Wire Housings LATCH HDR W/SWAGE 14 Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 14Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MTE HDR SRST LATCH W/HLDWN

¥6.8400
详情
6-103908-3

6-103908-3

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 14POS 30AU Headers & Wire Housings LATCH HDR W/SWAGE 14 Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 14Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MTE HDR SRST LATCH W/HLDWN

¥7.0560
详情
1-104503-3

1-104503-3

te connectivity / amp

Conn Housing PL 14 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts 14 MTE PIN HSG SR RIB .100CL Headers & Wire Housings 14 MTE PIN HSG SR RIB .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 14Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥8.7120
详情

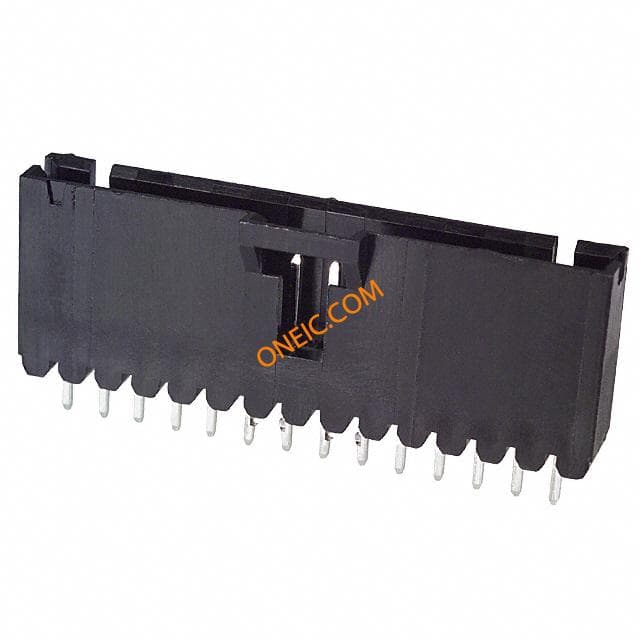

6-103669-3
