点击放大查看

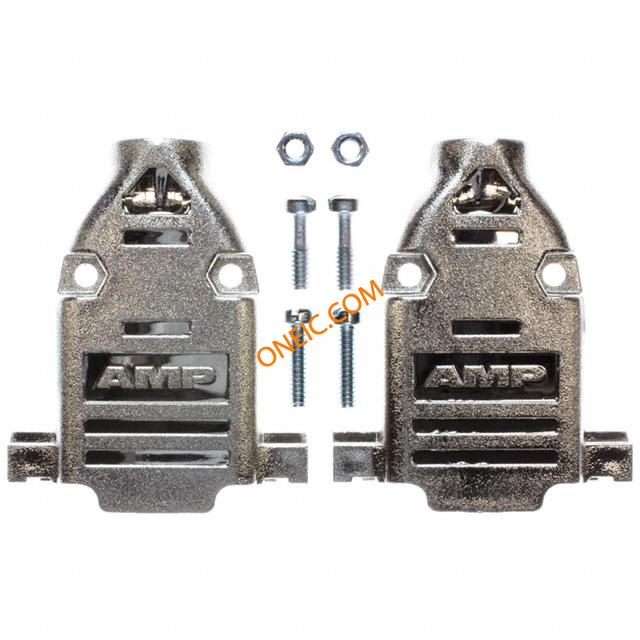

5747099-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 15 POS Backshell/Cable Clamp Thermoplastic Bright Nickel Over Copper Finish Shell Size 2 D-Sub Backshells DSUB ACC: A CABLE CLAMP SHLD Cable Clamps CONN BACKSHELL DB15 METAL PLATED Hood,D-Sub,15Pos,StraightExit,AMP Cable Clamp; Two-Piece RFI/EMI Shield; 0.300 in.; 2; 4-40; Steel; Thermoplastic Backshell/Cable Clamp 180° 2 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 2 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 7.62 mmNumber of Positions = 15Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub CABLE CLAMP KIT, SIZE 2, THERMOPLASTIC Hood;D-Sub;15Pos;StraightExit;AMP;MetallizedPlastic;0.300In.CblDia;EMI/RFIShield CABLE CLAMP KIT,SZ 2 |
| 分类 |
商业参数
| 交货时间 | 84 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 00000000 |
机械参数
| 颜色 | Silver | 重量 | 0.014 |
| 镀层 | Nickel over Copper | 材料（通用） | Thermoplastic |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 2 | 安装类型 | Straight |
| 外壳镀层 | Bright Nickel over Copper | 电缆直径 | 7.62 mm |
| 电缆端类型 | Straight | 外壳材料（壳体） | Thermoplastic |
| 本体材料 | :Thermoplastic | 壳体材料 | Metal Plated Plastic |
| 触点数 | 15 | 位数 | 15 |
| 外壳尺寸-插件 | :DA | 电缆对数 | 1 |
| 外部壳体材料 | :Plastic | 后壳材料及镀层 | MetalizedPlastic |
产品信息
| 类型 | Backshell/Cable Clamp | 系列 | :AMPLIMITE |
| 产品特性 | Assembly Kit, Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Strain Relief |
| 制造商全称 | AMP | 附件类型 | Two Piece Backshell |
| 射频系列/标准 | 5747099 | 适用产品/相关产品 | 747099-5 |
