5747099-1
| 制造商 | TE Connectivity Ltd. |

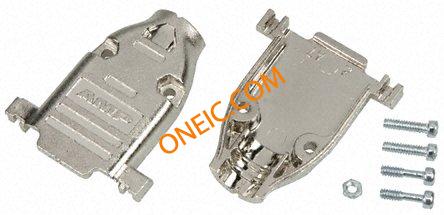

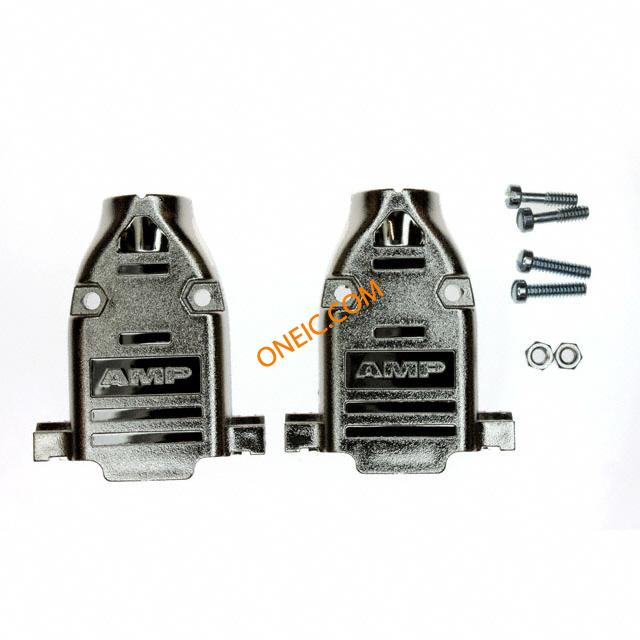

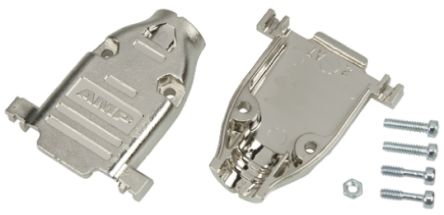

| 描述 | Connector Accessories 15 POS Backshell/Cable Clamp Thermoplastic Bright Nickel Over Copper Finish Shell Size 2 D-Sub Backshells DSUB ACC: A CABLE CLAMP SHLD Cable Clamps CONN BACKSHELL DB15 METAL PLATED AMPLIMITE shielded backshell kit, size 2 Backshell/Cable Clamp 180� 2 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 2 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 2 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 10.92 mmNumber of Positions = 15Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub TE Connectivity 15 路 D-sub 连接器底壳 CABLE CLAMP KIT,SZ 2 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 零件状态 | 747784-3 |
电气参数
| 连接器阻抗 | 180 | ||
机械参数
| 颜色 | Silver | 深度 | 48.51 mm |
| 高度 | 15.74 mm | 外形尺寸(长x宽) | 2 |
| 镀层 | Nickel over Copper | 材料（通用） | Thermoplastic |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 2 | 导线线规 | 金属电镀热塑性塑料 |
| 螺纹尺寸 | 4-40 | 外壳表面处理 | Bright |
| 电缆开口 | 180° | 外壳镀层 | Bright Nickel over Copper |
| 线径 | 10.92 mm [ .43 in ] | 电缆直径 | 10.92 mm |
| 电缆端类型 | Straight | 外壳材料（壳体） | Thermoplastic |
| 材料表面处理 | Nickel over Copper | 屏蔽材料 | 铜镀镍 |
| 总长度 | 39.24 mm | 包装数量 | 1 |
| 端接样式 | 两件式 RFI/EMI 屏蔽 | 触点数 | 15 |
| 位数 | 15 | 衬套/护套类型 | Without |
| 兼容外壳尺寸（如TM-700等） | 插头/母端 | 电缆对数 | 1 |
| 供应商器件封装 | Assembly Hardware, Strain Relief | ||
产品信息
| 备注 | 对于屏蔽电缆夹具，不能使用带有铆螺母的连接器壳体。, 所有部件都是包装好但未装配的状态。, 锁紧螺丝必须单独购买。 | 类型 | Backshell/Cable Clamp |
| 系列 | AMPLIMITE, AMP | 产品特性 | Assembly Kit, Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware, Strain Relief | 主要用途 | Assembly Kit, Mating Screws 4-40 |
| 产品子类型 | 附件 | 附件类型 | Two Piece Backshell |
| 射频系列/标准 | 5747099 | 适用产品/相关产品 | 747099-1 |
