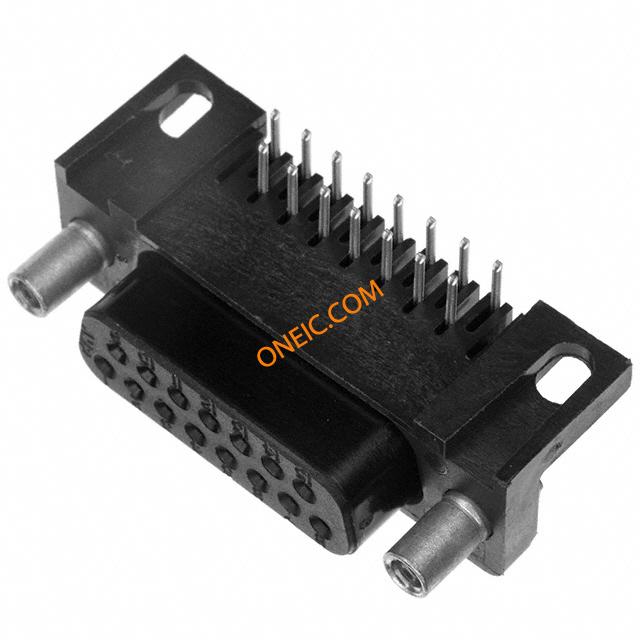

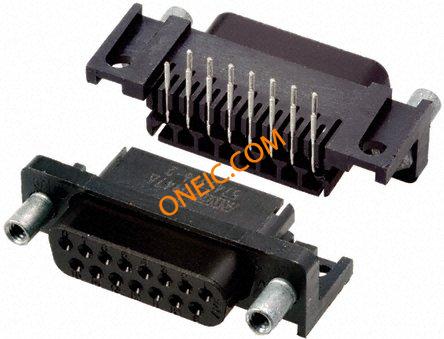

5745396-2

点击放大查看

5745396-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors HD-20 RCPT 15P RA 318 FFSCRLK Standard Board Mount Connectors CONN D-SUB RCPT R/A 15POS PCB AU AMPLIMITE HD-20 d-sub PCB socket, 15 way Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 Position 2 Row Right Angle D-Sub Female Socket Receptacle HD-20 RCPT 15P RA 318 FFSCRLK
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量104

合规参数

RoHSRoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
连接器阻抗母端螺钉锁，固定最大额定电流6A

机械参数

颜色Black深度18.97mm
间距2.74 mm宽度11.48mm
长度39.14mm密封型No
外形尺寸(长x宽)2包装方式Tray
屏蔽否壳体颜色黑色
引脚样式Round外壳尺寸2
端接方式Solder触点形式Signal
触头类型Signal柱间距.108
第二连接器With触点形状Round
安装类型Through Hole端子尺寸.12
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Mating Side; Female Screwlock (4-40)接地类型Without
安装样式Through Hole排数2
电路板厚度0.093 [2.36]连接器样式D-Sub
插入件材料磷青铜锁定特性Female Screwlocks, Fixed
外形（宽 x 高）Standard触头材料Phosphor Bronze
壳体材料Thermoplastic安装特性安装孔
包装数量104面板安装类型Without
尺寸/外形0.66 [.026]接地凹痕Without
外形尺寸 长x宽x高8.08 [.318]端接样式Through Hole
连接器颜色None外径.66 mm [ .026 in ]
触点数15位数15
外壳尺寸-插件All Plastic端子螺钉表面处理透明铬酸盐
端子柱长度3.18 [0.125]接触镀层厚度30µin (0.76µm)
螺钉材料 - 镀层Zinc外壳与棱镜材料是
外壳尺寸，连接器布局2 (DA, A)

产品信息

备注All receptacles are preloaded with size 20 DF posted socket contacts类型D-Subminiature
连接器性别SKT系列HD-20
可密封否制造商全称AMP
预装是产品子类型连接器
其他规格否

环境参数

工作温度-55°C ~ 105°C封装热阻2.36 mm [ .093 in ]
