5223957-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Guide Module Zinc Alloy Die Cast Chromate Finish Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN MODULE FEMALE GUIDE 2MM Guide female r/a U-P Module 4-40 Hard Metric Connectors ACC:FEM GUIDE MOD B-PLANE UPM Connector Accessories Guide Module Zinc Alloy Die Cast Chromate Finish Product Highlights:Guide ModuleNot KeyedThread Size = 4-40Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, GUIDE MODULE, Z-PACK UNIVERSAL POWER MOD GUIDEMODULE,UNIVERSALPOWERPACK,4-40,RIGHTANGLE Universal 4-40 Thread Right Angle Power Guide Module TE Connectivity 背板导柱 UPM GUIDE MODULE |
| 分类 |
商业参数
| 其他名称 | 52239571 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 深度 | 7.9mm | 表面处理 | Chromate Conversion |
| 高度 | 13.7mm | 长度 | 34.2mm |
| 重量 | 0 | 材料（通用） | Zinc Alloy Die Casting , Zamak 3 |
| 包装方式 | Bulk | 螺纹尺寸 | 4-40 |
| 安装类型 | Right Angle | 安装样式 | PCB |
| 排数 | 1 | 触头材料 | Stainless Steel |
| 壳体材料 | Zinc | 总长度 | 34.2 mm |
| 端接样式 | Screw | 触点数 | 1 |
产品信息
| 类型 | Guide Module | 系列 | :Z-PACK |
| 编码、键控 | No | 产品子类型 | Guide Module |
| 附件类型 | Guide Module | 射频系列/标准 | 5223957 |
| 适用产品/相关产品 | UPM Series | ||
相关型号

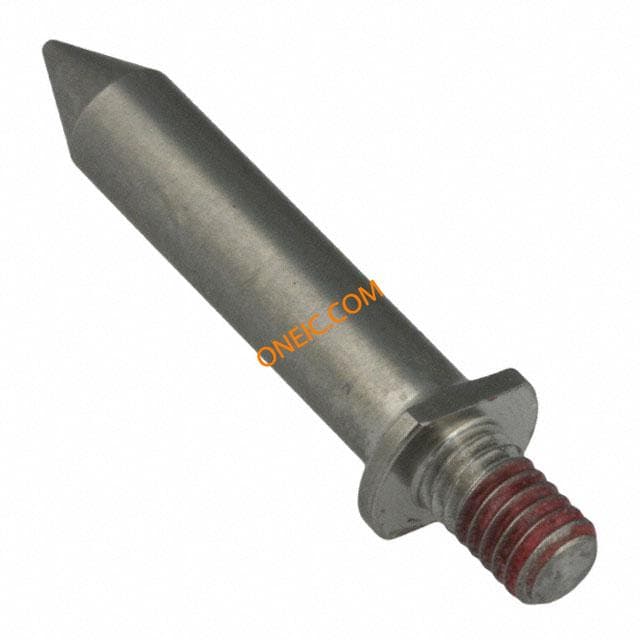

223956-1
te connectivity / amp
Connector Accessories Guide Pin Stainless Steel Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN GUIDE PIN FOR UNIV PWR MOD Hard Metric Connectors POWER MODULE Connector Accessories Guide Pin Stainless Steel Product Highlights:Guide PinNot KeyedThread Length = 6.20 mmThread Size = M4 x 7-6GSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, GUIDE PIN, Z-PACK UNIVERSAL POWER MODULE GUIDEPIN,UNIVERSALPOWERMODULE,6.20MM,M4X7-6G M4 6.2 mm Thread Length Vertical Connector Guide Pin for Universal Power Module UNV PWR MDL, GUIDE PIN LOCT PL
223969-4
te connectivity / amp
Connector Accessories Guide Pin Passivated Stainless Steel Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN 2MM GUIDE PIN 8-32 STEEL Hard Metric Connectors GUIDE PIN FOR Z-PACK Connector Accessories Guide Pin Passivated Stainless Steel Product Highlights:Guide PinNot KeyedThread Length = 12.70 mmThread Size = 8-32 UNC-2ASearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, GUIDE PIN, UPM, 8-32 UNC-2A, 12.70MM UNVPWRMDL,GUIDEPINLOCTPL UNV PWR MDL, GUIDE PIN LOCT PL

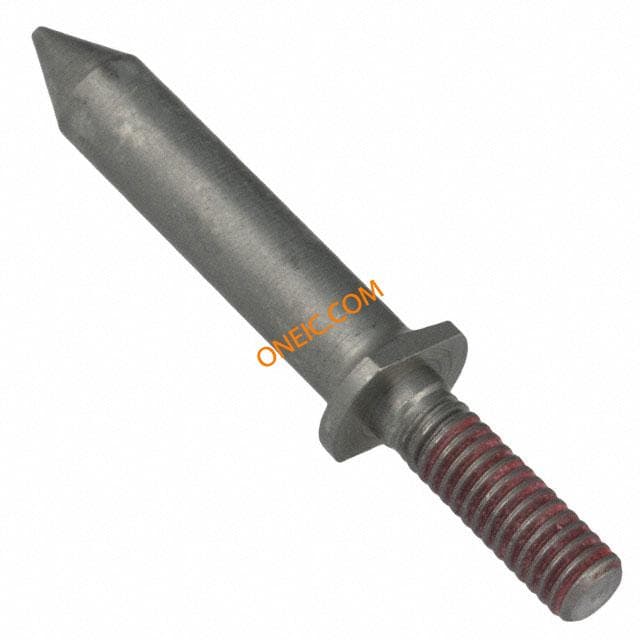

223969-1
te connectivity / amp
Connector Accessories Guide Pin Stainless Steel Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN 2MM GUIDE PIN M4X7-6G STEEL Hard Metric Connectors UNV PWR MDL Connector Accessories Guide Pin Stainless Steel Product Highlights:Guide PinNot KeyedThread Length = 12.70 mmThread Size = M4 x 7-6GSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, GUIDE PIN, UPM, M4 X 7-6G, 12.70MM UNV PWR MDL, GUIDE PIN LOCT PL
223982-1
te connectivity / amp
Connector Accessories Guide Pin Passivated Stainless Steel Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN GUIDE PIN M4 X 7-6G Hard Metric Connectors M4x7-6G PWR MOD GDE Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) Product Highlights:Guide PinNot KeyedThread Length = 7.50 mmThread Size = M4 x 7-6GSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, UNVPWRMDL,GUIDEPINLOCTPL Guide Pin 7.5mm Thread Length UNV PWR MDL, GUIDE PIN LOCT PL
223969-7
te connectivity / amp
Connector Accessories Guide Pin Passivated Stainless Steel Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN GUIDE PIN M4 X 7-6G Hard Metric Connectors UNV PWR MDL, GUIDE PIN LOCT PL Connector Accessories Guide Pin Passivated Stainless Steel Product Highlights:Guide PinNot KeyedThread Length = 9.20 mmThread Size = M4 x 7-6GSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, GUIDE PIN, UPM, M4 X 7-6G, 9.20MM UNV PWR MDL, GUIDE PIN LOCT PL
