点击放大查看

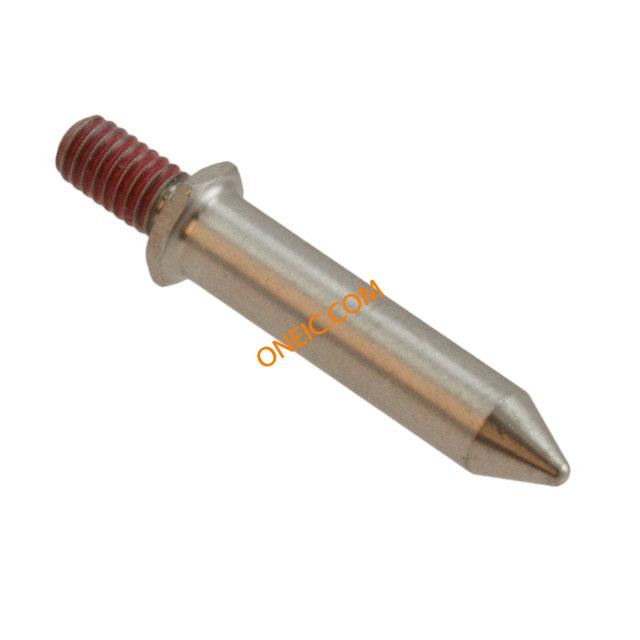

223982-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Guide Pin Passivated Stainless Steel Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN GUIDE PIN M4 X 7-6G Hard Metric Connectors M4x7-6G PWR MOD GDE Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) Product Highlights:Guide PinNot KeyedThread Length = 7.50 mmThread Size = M4 x 7-6GSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, UNVPWRMDL,GUIDEPINLOCTPL Guide Pin 7.5mm Thread Length UNV PWR MDL, GUIDE PIN LOCT PL |
| 分类 |
商业参数
| 其他名称 | 2239821 | 标准包装规格 | 500 |
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 表面处理 | Passivated | 包装方式 | Tray |
| 螺纹尺寸 | M4 x 7-6G | 安装类型 | 垂直 |
| 螺纹长度 | 7.50 [0.295] | 安装样式 | PCB |
| 排数 | 1 | 插入件材料 | Passivated Stainless Steel |
| 壳体材料 | Stainless Steel | 包装数量 | 1000 |
| 连接器 - 电缆 | Yes | 端接样式 | Screw |
产品信息
| 备注 | With 6.35 mm [.250 in.] Hex Base. | 类型 | Guide Pin |
| 钥匙类型 | 否 | 编码、键控 | No |
| 产品子类型 | Guide Pin | 附件类型 | Guide Pin |
| 规格说明 | M4 Thread | 射频系列/标准 | 223982 |
