223956-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Guide Pin Stainless Steel Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN GUIDE PIN FOR UNIV PWR MOD Hard Metric Connectors POWER MODULE Connector Accessories Guide Pin Stainless Steel Product Highlights:Guide PinNot KeyedThread Length = 6.20 mmThread Size = M4 x 7-6GSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, GUIDE PIN, Z-PACK UNIVERSAL POWER MODULE GUIDEPIN,UNIVERSALPOWERMODULE,6.20MM,M4X7-6G M4 6.2 mm Thread Length Vertical Connector Guide Pin for Universal Power Module UNV PWR MDL, GUIDE PIN LOCT PL |
| 分类 |
商业参数
| 其他名称 | 2239561 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 深度 | 7.8 mm | 高度 | 5.92 mm |
| 重量 | 0.004 | 包装方式 | Bulk |
| 螺纹尺寸 | M4 x 7-6G | 螺纹长度 | 6.20 [0.244] |
| 安装样式 | PCB | 排数 | 1 |
| 插入件材料 | Passivated Stainless Steel | 触头材料 | Stainless Steel |
| 壳体材料 | Zinc | 总长度 | 31.36 mm |
| 端接样式 | Screw | 触点数 | 1 |
产品信息
| 类型 | Guide Pin | 系列 | :M4 |
| 编码、键控 | No | 产品子类型 | Guide Pin |
| 附件类型 | Guide Pin | 规格说明 | M4 Thread |
| 射频系列/标准 | 223956 | 适用产品/相关产品 | :Z-Pack 2 mm HM, Z-Pack HS3, Z-Pack HM-Zd and Multi GIG RT2J |
相关型号

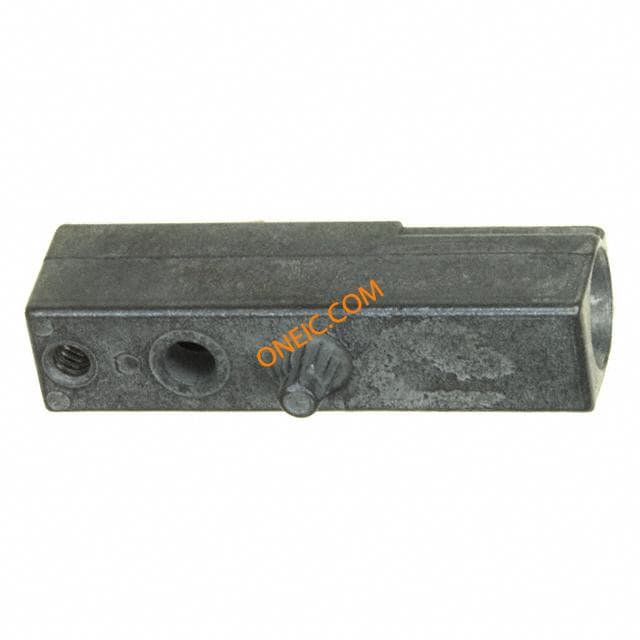

5223957-1
te connectivity / amp
Connector Accessories Guide Module Zinc Alloy Die Cast Chromate Finish Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN MODULE FEMALE GUIDE 2MM Guide female r/a U-P Module 4-40 Hard Metric Connectors ACC:FEM GUIDE MOD B-PLANE UPM Connector Accessories Guide Module Zinc Alloy Die Cast Chromate Finish Product Highlights:Guide ModuleNot KeyedThread Size = 4-40Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, GUIDE MODULE, Z-PACK UNIVERSAL POWER MOD GUIDEMODULE,UNIVERSALPOWERPACK,4-40,RIGHTANGLE Universal 4-40 Thread Right Angle Power Guide Module TE Connectivity 背板导柱 UPM GUIDE MODULE

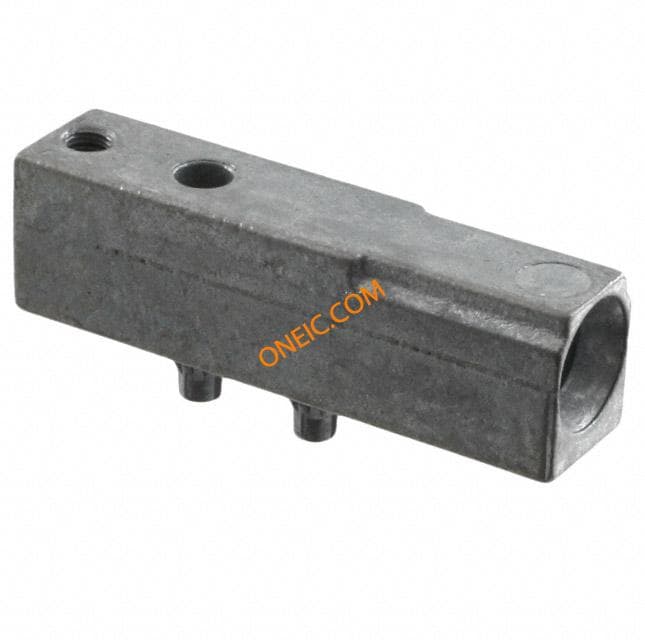

5223979-1
te connectivity / amp
Connector Accessories Guide Module Zinc Alloy Die Casting Chromate Conversion Finish Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN GUIDE MODULE RT ANG High Speed / Modular Connectors UPM GUIDE MODULE Connector Accessories Guide Module Zinc Alloy Die Casting Chromate Conversion Finish Product Highlights:Guide ModuleNot KeyedSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, Zinc Alloy Die Casting Connector Accessory Guide Module UPM GUIDE MODULE

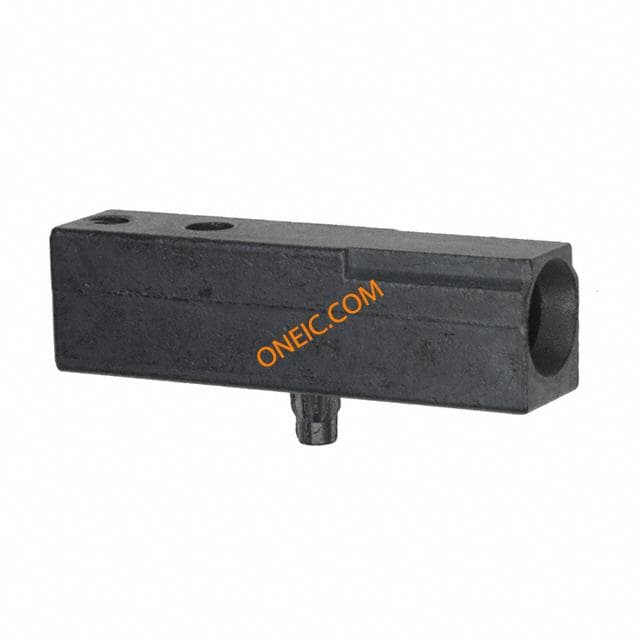

223957-1
