点击放大查看

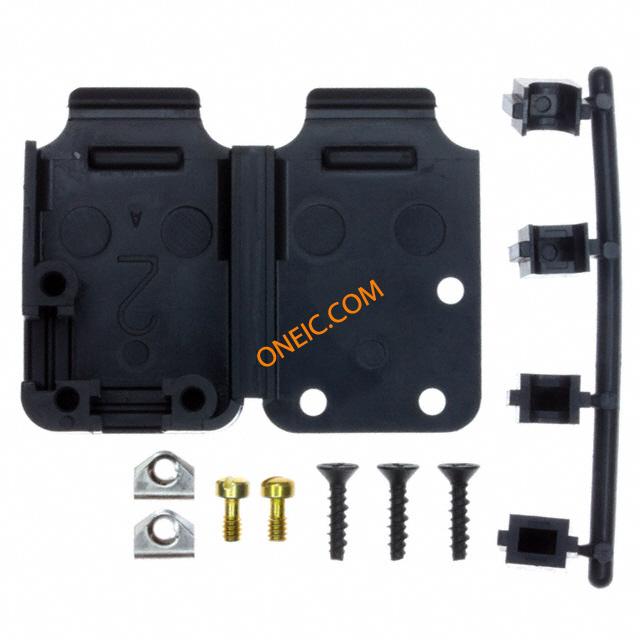

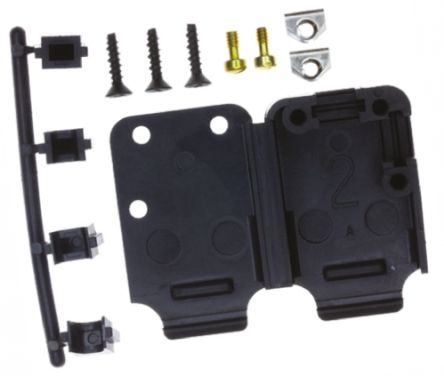

5207908-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Backshell/Cable Clamp Thermoplastic Individual Shell Size 2 D-Sub Backshells CABLE CLAMP KT SZ2 Cable Clamps CONN BACKSHELL DB15 PLASTIC Hood,D-Sub,15Pos,Straight/90Deg,HD-20S Backshell/Cable Clamp 90�/180� 2 Shell Size Thermoplastic Individual Backshell/Cable Clamp 90°/180° 2 Shell Size Thermoplastic Individual Backshell/Cable Clamp 90°/180° 2 Shell Size Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Box and LidStraight(180°)/90° Cable Exit AngleCable Insulation Diameter = 8.13 mmShell Size = 2Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub BACKSHELL, PLASTIC, VERTICAL, HD-20 Hood;D-Sub;15Pos;Straight/90Deg;HD-20Series;Thermoplastic;0.320In.CblDiaScrews TE Connectivity HD-20 系列 15 路 直角，直 热塑性 D-sub 连接器底壳 STRAIN REL W/SCREW RET KIT |
| 分类 |
商业参数
| 交货时间 | 21 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 重量 | 0.05 |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 出线方向 | Straight(180°)/90° |
| 电缆类型 | Round | 外壳尺寸 | 2 |
| 屏蔽类型 | No | 螺纹尺寸 | 4-40 |
| 安装类型 | Right Angle, Straight | 外壳镀层 | Plastic |
| 电缆直径 | 0.320In. | 电缆端类型 | Variable Entries |
| 电缆材料 | Thermoplastic | 外壳材料（壳体） | Thermoplastic |
| 本体材料 | :PP (Polypropylene) | 壳体材料 | Thermoplastic |
| 包装数量 | Individual Kit | 电缆端接方式 | Box and Lid |
| 触点数 | 15 | 绝缘直径 | 8.13 [0.320] |
| 位数 | 15 | 衬套/护套类型 | Without |
| 电缆对数 | 2 | 后壳材料及镀层 | Thermoplastic |
| 控制侧电缆固定器 | With | ||
产品信息
| 备注 | Each kit is comprised of a cable clamp and male screw retainer hardware (2 each | 类型 | Backshell/Cable Clamp |
| 系列 | HD-20 (Solder Cup) | 产品特性 | Assembly Kit, Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware, Strain Relief | 制造商全称 | HD-20Series |
| 产品子类型 | Backshell/Cable Clamp | 附件类型 | Hinged Backshell |
| 射频系列/标准 | 5207908 | 适用产品/相关产品 | 207908-4 |
