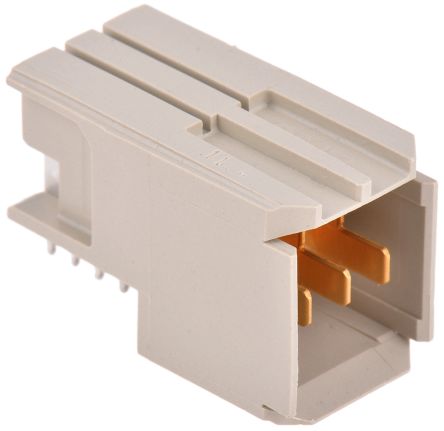

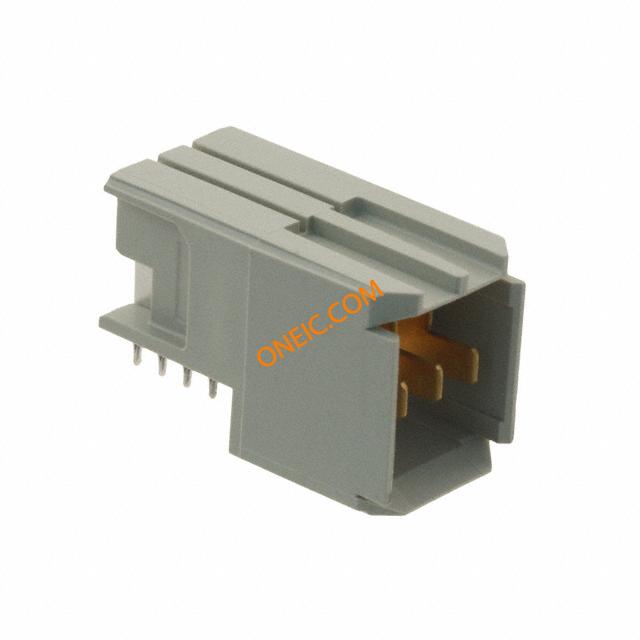

5-5223961-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN PLUG 3POS BLADE RT ANG GOLD Header horizontal 3 way Blade U-P Module Hard Metric Connectors HDR 1X003P R/A HC B-PLANE UPME Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Product Highlights:HeaderNumber of Positions = 3Not KeyedMating Post Length (Row A) = 10.90 mmMating Post Length (Row B) = 10.90 mmSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, HEADER, UPM, R/A, 3WAY Headerhorizontal3wayBladeU-PModule TE Connectivity Z-PACK HM 系列 2mm 节距 3 路 直角 1 排 公 背板连接器, 按式端子, 10A UPM PIN ASSY, HI CURRENT |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 48 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
机械参数
| 颜色 | Gray | 深度 | 22.34 mm |
| 间距 | 2 mm | 高度 | 14.33 mm |
| 重量 | 0.05 | 包装方式 | Tube |
| 端接方式 | Press Fit | 触头类型 | Compliant Post |
| 外壳颜色 | Natural | 安装类型 | Through Hole |
| 连接器类型 | Header, Male Blades | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 1 |
| 连接器样式 | Blade Power | 连接器用途 | Backplane |
| 触头材料 | High Conductivity Copper Alloy | 壳体材料 | Liquid Crystal Polymer (LCP) |
| 总长度 | 12 mm | 主要材料 | PowerModule |
| 触点数 | 3Power | 接触件端接 | :Press Fit Right Angle |
| 位数 | 3 | 柱体长度（配合） | 10.90 [0.429] |
| 典型触点布局 | 3 Power | 接触镀层厚度 | 3µin (0.08µm) |
产品信息
| 备注 | Contact area lubricated with Bellcore approved lubricant. | 类型 | Backplane |
| 连接器性别 | Male | 系列 | Z-Pack |
| 产品特性 | Board Guide | 编码、键控 | No |
| 制造商全称 | Z-PACKSeries | 产品子类型 | Plug |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
5-5223955-2
te connectivity / amp
Conn Power RCP 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN RCPT 3POS VERT GOLD TE Connectivity Z-PACK HS3 Series 3 Way Straight PCB Socket Through Hole Board to Board Hard Metric Connectors REC 1X003P VRT HC B-PLANE UPME Conn Power RCP 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 3PCB Mount Angle = VerticalNot KeyedTin Solder Tail Contact PlatingSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, UPMRECPT,HICURRENT 3 Position Straight Socket Receptacle Solder Through Hole Connector TE Connectivity Z-PACK HM 系列 3路 直 通孔 印刷电路板插座, 板对板 UPM RECPT, HI CURRENT
120943-1
te connectivity / amp

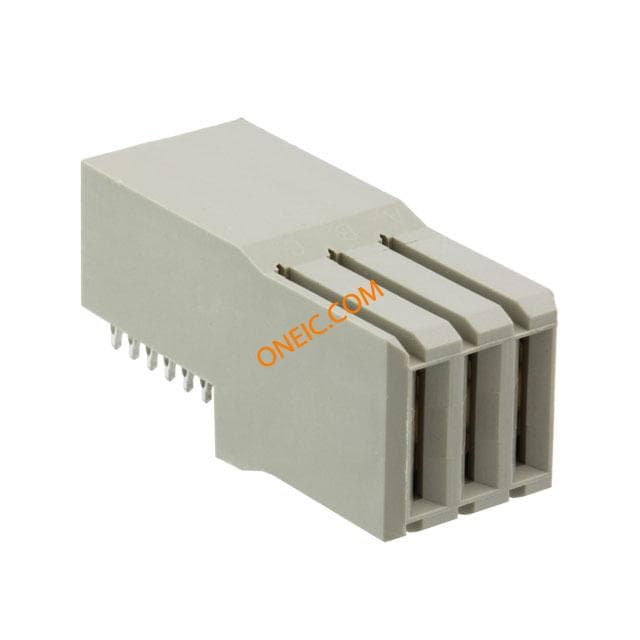

Conn Power RCP 3 POS Press Fit RA Thru-Hole 18 Terminal 1 Port CONN RCPT 3POS R/A GRAY Heavy Duty Power Connectors ASSEMBLY, R/A UPM RECPT, 3 POS Conn Power RCP 3 POS Press Fit RA Thru-Hole 18 Terminal 1 Port Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, RECEPTACLE, UPM, R/A, 3WAY HARD METRIC CONNECTOR, RECEPTACLE, 3POS CONN RCPT 3POS ASSEMBLY, R/A UPM RECPT, 3 POS
