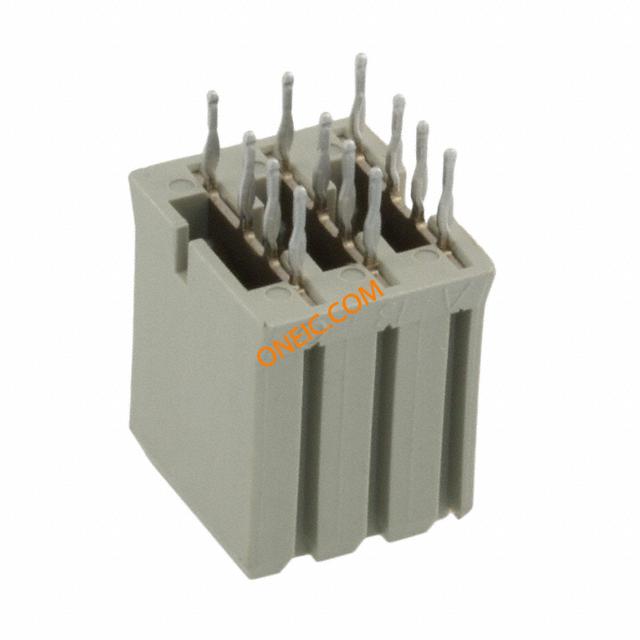

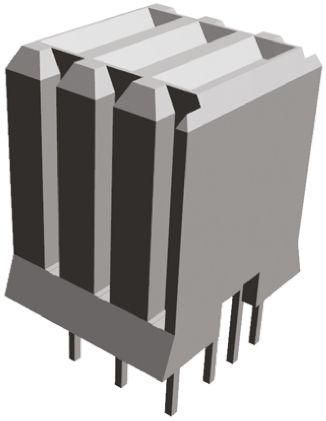

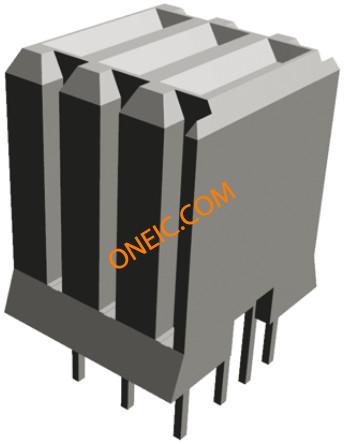

5-5223955-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power RCP 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN RCPT 3POS VERT GOLD TE Connectivity Z-PACK HS3 Series 3 Way Straight PCB Socket Through Hole Board to Board Hard Metric Connectors REC 1X003P VRT HC B-PLANE UPME Conn Power RCP 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 3PCB Mount Angle = VerticalNot KeyedTin Solder Tail Contact PlatingSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, UPMRECPT,HICURRENT 3 Position Straight Socket Receptacle Solder Through Hole Connector TE Connectivity Z-PACK HM 系列 3路 直 通孔 印刷电路板插座, 板对板 UPM RECPT, HI CURRENT |
| 分类 |
商业参数
| 其他名称 | 552239552 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 60 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 1.15A |
机械参数
| 颜色 | Gray | 间距 | 3 mm |
| 高度 | 24.63 mm | 包装方式 | Tube |
| 端接方式 | Solder | 触头类型 | Compliant Post |
| 外壳颜色 | Natural | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Female Blade Sockets | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 1 |
| 连接器样式 | Blade Power | 连接器用途 | Backplane |
| 触头材料 | High Conductivity Copper Alloy | 壳体材料 | Liquid Crystal Polymer (LCP) |
| 总长度 | 12 mm | 触点数 | 3 |
| 位数 | 3 | 典型触点布局 | 3 Power |
| 接触镀层厚度 | 3µin (0.08µm) | ||
产品信息
| 备注 | Contact area lubricated with Bellcore approved lubricant. | 类型 | Power |
| 连接器性别 | RCP | 系列 | Z-PACK HS3 |
| 编码、键控 | No | 产品子类型 | Receptacle |
| 端口数 | 1 Port | 加载位置数 | All |
