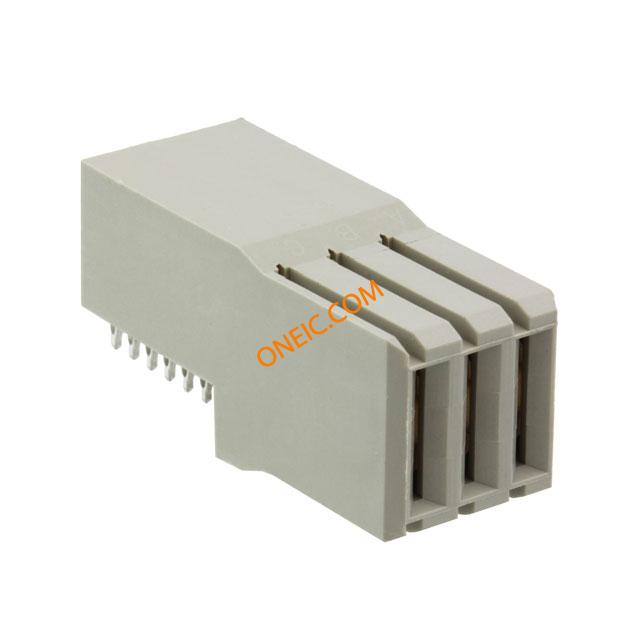

120943-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power RCP 3 POS Press Fit RA Thru-Hole 18 Terminal 1 Port CONN RCPT 3POS R/A GRAY Heavy Duty Power Connectors ASSEMBLY, R/A UPM RECPT, 3 POS Conn Power RCP 3 POS Press Fit RA Thru-Hole 18 Terminal 1 Port Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, RECEPTACLE, UPM, R/A, 3WAY HARD METRIC CONNECTOR, RECEPTACLE, 3POS CONN RCPT 3POS ASSEMBLY, R/A UPM RECPT, 3 POS |
| 分类 |
商业参数
| 其他名称 | A108479 | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Not applicable / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94 V-0 | ||
机械参数
| 颜色 | Gray | 间距 | :1.5mm |
| 重量 | 0.05 | 包装方式 | Bulk |
| 端接方式 | Press Fit | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Female Blade Sockets | 接触镀层 | Gold |
| 排数 | :1 | 连接器样式 | Blade Power |
| 插入力 | Female | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 端接样式 | Solder |
| 触点数 | 3 | 接触件端接 | :Press Fit Right Angle |
| 位数 | 3 | 典型触点布局 | 3 Power |
| 接触镀层厚度 | 50µin (1.27µm) | ||
产品信息
| 类型 | Power | 连接器性别 | RCP |
| 系列 | Universal Power | 产品子类型 | Connectors |
| 加载位置数 | All | ||
文档与媒体
相关型号
5-5223961-1
te connectivity / amp
Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN PLUG 3POS BLADE RT ANG GOLD Header horizontal 3 way Blade U-P Module Hard Metric Connectors HDR 1X003P R/A HC B-PLANE UPME Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Product Highlights:HeaderNumber of Positions = 3Not KeyedMating Post Length (Row A) = 10.90 mmMating Post Length (Row B) = 10.90 mmSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, HEADER, UPM, R/A, 3WAY Headerhorizontal3wayBladeU-PModule TE Connectivity Z-PACK HM 系列 2mm 节距 3 路 直角 1 排 公 背板连接器, 按式端子, 10A UPM PIN ASSY, HI CURRENT

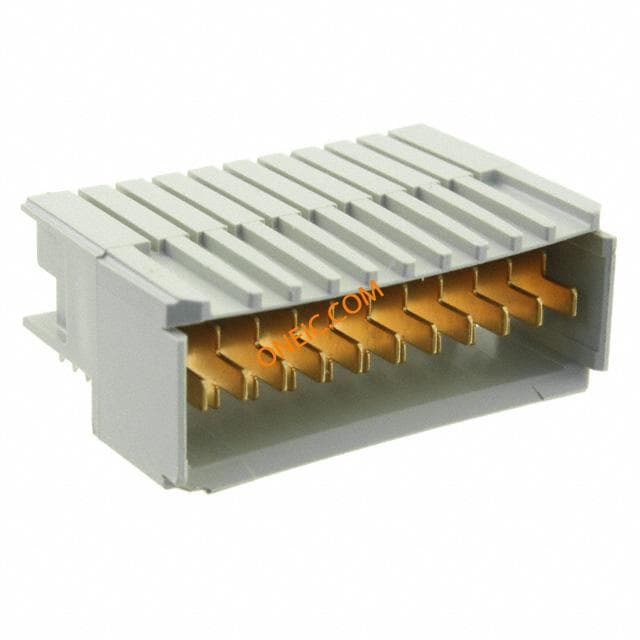

5646961-1
