5-104550-2

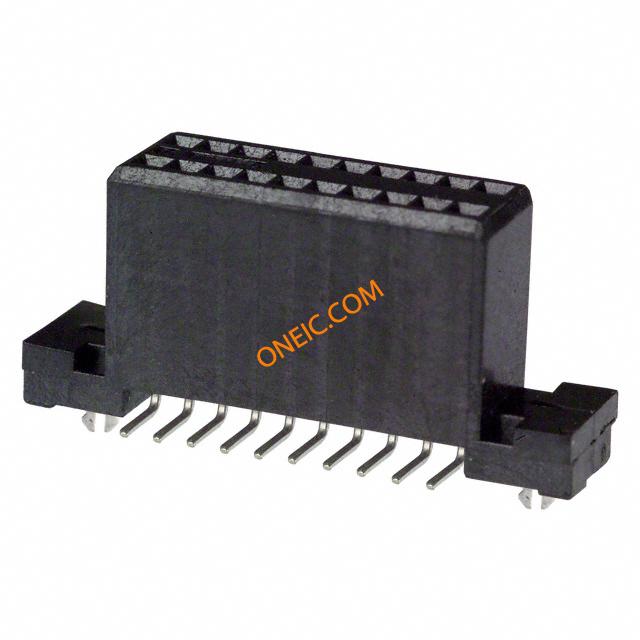

点击放大查看

5-104550-2

制造商
TE Connectivity Ltd.
描述Conn Socket Strip RCP 20 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 20POS .050 DUAL SMD Board to Board & Mezzanine Connectors 20 POS SMT RECPT VERT DUAL ROW Conn Socket Strip RCP 20 POS 1.27mm Solder ST SMD Tube Product Highlights:Receptacle AssemblyNumber of Positions = 20Number of Rows = DualVertical Mount AnglePCB Mount Style = Surface MountSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 20 SYS50 SURFMNT DRST RCPT SN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Board to Board & Mezzanine Connectors
标准包装数量Rail / Tube工厂包装数量26

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°CRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压30 V供电电压30
输入电阻5000额定交流电压30
击穿电压500绝缘电阻5,000
最小供电电压30VAC

机械参数

颜色Black深度5.02 mm
间距1.27 mm高度9.47 mm
镀层Tin包装方式Tube
壳体颜色黑色轴径尺寸不带
排间距0.100" (2.54mm)端接方式Solder
引脚间距0.100" (2.54mm)外壳颜色Black
安装类型Vertical连接器类型Receptacle
接触镀层Gold Over Nickel安装样式Surface Mount
排数2电路板厚度1.57
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Thermoplastic Glass Reinforced总长度20.18 mm
刀片材料Copper Alloy安装特性压具柱体
包装数量Tube面板安装类型表面贴装
连接器间距.1端接样式SMD
板面高度0.370" (9.40mm)触点数20
位数20兼容外壳尺寸（如TM-700等）插头组件
安装高度（最大）0.370" (9.40mm)配接堆叠高度0.470", 0.515" (11.94mm, 13.08mm)
表面贴装焊盘尺寸Without夹持材料 - 镀层Tin
接触镀层厚度30µin (0.76µm)堆叠高度（配合）0.470", 0.515" (11.94mm, 13.08mm)
每排/每行位置数All

产品信息

类型Socket Strip连接器性别RCP
系列AMPMODU SYSTEM 50产品特性Board Lock
可堆叠No主要用途Board Lock
制造商全称AMP产品子类型Receptacle Assembly
装配配置Board Standoff加载位置数All

环境参数

温度范围-65 – +105工作温度-65C to 105C
