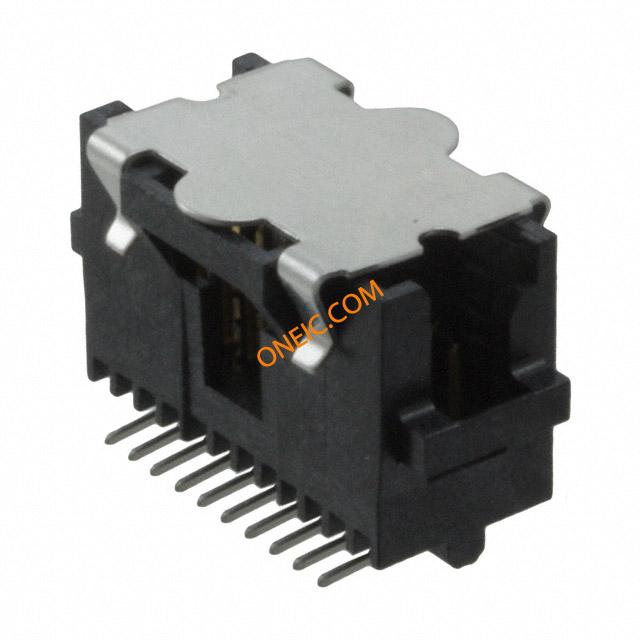

5-147377-2

点击放大查看

5-147377-2

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 20 POS 1.27mm Solder ST SMD T/R .050 X .100 AMPMODU System 50 CONN HEADER 20POS DUAL SMD GOLD TE Connectivity AMPMODU Series 1.27mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings HDR 2X10P VRT SMT 750 Conn Shrouded Header HDR 20 POS 1.27mm Solder ST SMD T/R Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU Headervertsmt20w2row1.27mmAmpModu TE Connectivity AMPMODU System 50 系列 1.27mm节距 20路 (2排) 直 PCB 针座, 焊接端接 , 表面安装 20 SYS50 SMT HDR DR SHD SN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU其他名称A105474CT
产品类别Headers & Wire Housings标准包装数量Tape & Reel
工厂包装数量250

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°CRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压30 V ac供电电压30
额定交流电压30连接器阻抗带有
击穿电压500最大额定电流1
绝缘电阻5,000最小供电电压30VAC
保护额定电压（VPR）500 V

机械参数

颜色Black深度8.74 mm
间距1.27 mm高度11.05 mm
底座类型带有包装方式Tape & Reel (TR)
遮蔽类型Yes壳体颜色黑色
引脚样式圆形轴径尺寸.022
方向直排间距0.100" (2.54mm)
稳定剂Without端接方式Solder
引脚间距0.100" (2.54mm)第二连接器With
外壳颜色Black安装类型Vertical
连接器类型Shrouded接触镀层Gold Over Nickel
安装样式Surface Mount排数2
高度（英寸）0.435" (11.05mm)插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Thermoplastic Glass Reinforced
总长度18.9 mm包装数量Tape & Reel
面板安装类型表面贴装主要材料Connector
端接排数焊接插针孔直径.031
连接器间距.1端接样式SMD
板面高度0.125" (3.18mm)触点数20
端接表面处理带罩位数20
触头长度-柱0.435" (11.05mm)安装孔直径带有
接触长度 - 配合0.125" (3.18mm)接触镀层厚度30µin (0.76µm)
静电放电屏蔽不带每排/每行位置数All
端接镀层厚度150

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU覆盖范围覆盖
钥匙类型是制造商全称AMP
产品子类型Header Assembly选择性装载No
输出配置Surface Mount加载位置数All

环境参数

密封等级不带温度范围-65 – +105
工作温度-65C to 105C

文档与媒体

在线文档
5-147377-2?RQPN=5-147377-2

相关型号

2-487937-0

2-487937-0

te connectivity / amp

Conn Housing RCP 20 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 20POS.050 DUAL W/LATCH FFC & FPC Connectors 20 RCPT 50CL DR LTCH Conn Housing RCP 20 POS 1.27mm Crimp ST Cable Mount Product Highlights:HousingNumber of Positions = 20Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 020 HOUSING FFC 50CL DR LATCH

¥8.5578
详情
5-104550-2

5-104550-2

te connectivity / amp

Conn Socket Strip RCP 20 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 20POS .050 DUAL SMD Board to Board & Mezzanine Connectors 20 POS SMT RECPT VERT DUAL ROW Conn Socket Strip RCP 20 POS 1.27mm Solder ST SMD Tube Product Highlights:Receptacle AssemblyNumber of Positions = 20Number of Rows = DualVertical Mount AnglePCB Mount Style = Surface MountSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 20 SYS50 SURFMNT DRST RCPT SN

¥9.0600
详情

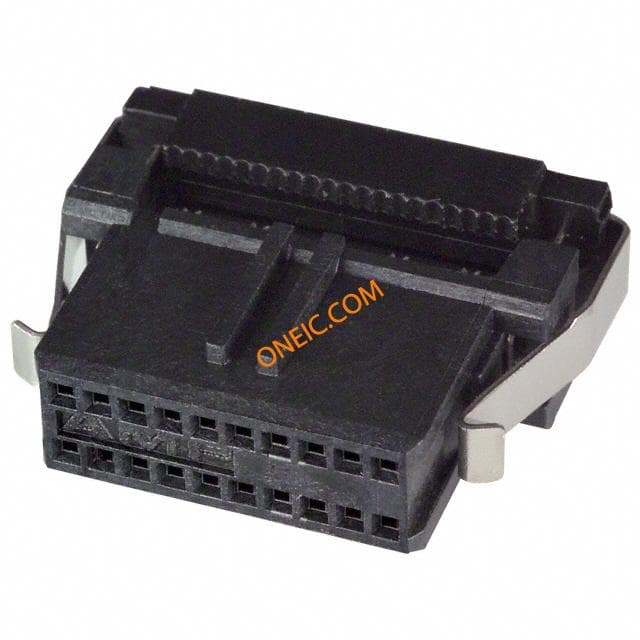

1-111196-8
