点击放大查看

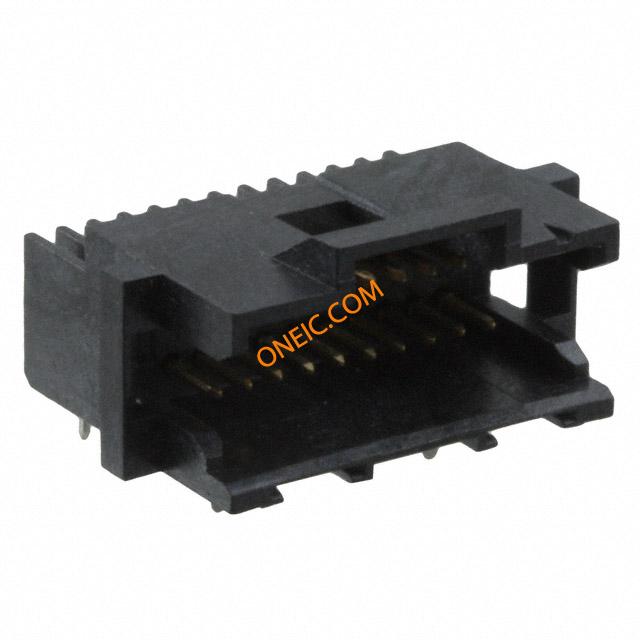

5-104069-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 20 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 20POS .050" R/A GOLD Header 20 way AmpModu system 50 Headers & Wire Housings 20 POS HDR R/A DUAL ROW Conn Shrouded Header HDR 20 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU HEADER, R/A, 20WAY, TH HEADERASSEMBLY,AMPMODU,SYSTEM50,20POSITION,DUALROW,SHROUDED,RIGHTANGL TE Connectivity AMPMODU System 50 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 20 sys 50 hdr drra shrd sn |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 27 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 500 V | 供电电压 | 30 |
| 击穿电压 | 500 | 绝缘电阻 | 5,000 |
| 最小供电电压 | 30VAC | ||
机械参数
| 颜色 | Black | 深度 | 13.72 mm |
| 间距 | 1.27 mm | 高度 | 8.89 mm |
| 重量 | 0.001 | 包装方式 | Tube |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 引脚间距 | :1.27mm |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 连接器类型 | Shrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | Thru Hole | 排数 | 2 |
| 高度（英寸） | 0.350" (8.89mm) | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 19.05 mm |
| 包装数量 | Tube | 主要材料 | InterconnectSystem |
| 端接样式 | Through Hole | 触点数 | 20 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 20 |
| 接触长度 - 配合 | 0.125" (3.18mm) | 端子柱长度 | 2.54 [0.100] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 备注 | Note 1: Hold down posts located as shown for 16 through 100 position headers.; | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | Micro-Match |
| 制造商全称 | AMP | 产品子类型 | Header Assembly |
| 加载位置数 | All | ||
环境参数
| 温度范围 | -65 â +105 | 工作温度 | -65C to 105C |
文档与媒体
相关型号

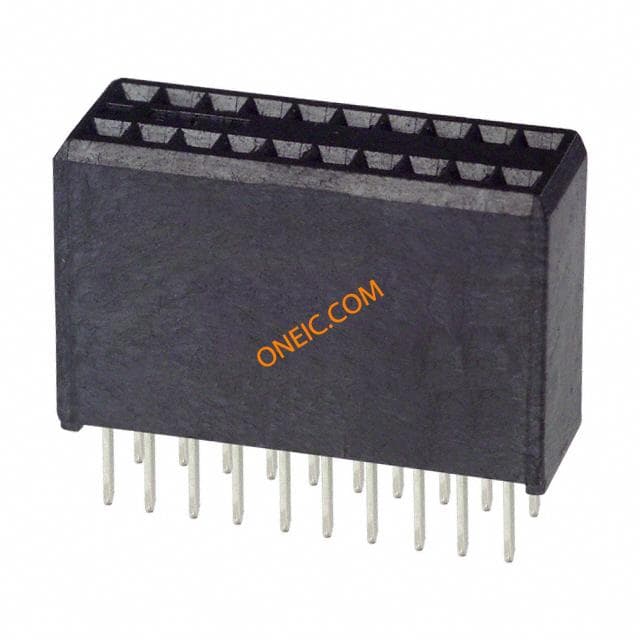

5-104078-1
te connectivity / amp
Conn Socket Strip RCP 20 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 20POS .050" STR GOLD TE Connectivity 1.27mm 20 Way 2 Row Straight PCB Socket Through Hole Socket Strip Board to Board & Mezzanine Connectors 20 POS RECEPT VERT DUAL ROW Conn Socket Strip RCP 20 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Receptacle AssemblyNumber of Positions = 20Number of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU Housingpcb20way2row1.27mmAmpModu 20 SYSTEM 50 RCPT ASSY DRST SN
2-487938-0
te connectivity / amp
Conn Housing RCP 20 POS 1.27mm Crimp ST Cable Mount FFC & FPC Connectors OBSOLETE .050 X .100 AMPMODU System 50 CONN RECEPT 20POS .050 DUAL ROW
147378-2
te connectivity / amp
Conn Socket Strip RCP 20 POS 1.27mm Solder ST SMD T/R .050 X .100 AMPMODU System 50 CONN RCPT 20POS DL ROW SMD GOLD 20 SYS50 SMT RCP DR SHD W/O HD
2-487937-0
te connectivity / amp
Conn Housing RCP 20 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 20POS.050 DUAL W/LATCH FFC & FPC Connectors 20 RCPT 50CL DR LTCH Conn Housing RCP 20 POS 1.27mm Crimp ST Cable Mount Product Highlights:HousingNumber of Positions = 20Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 020 HOUSING FFC 50CL DR LATCH

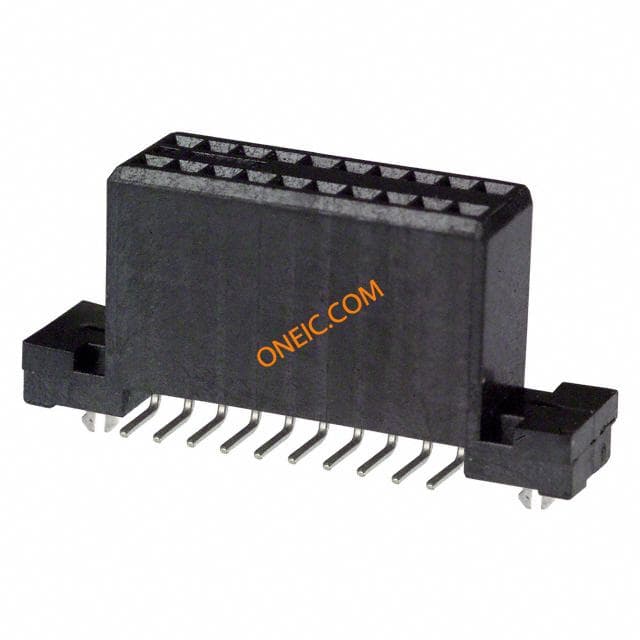

5-104550-2
