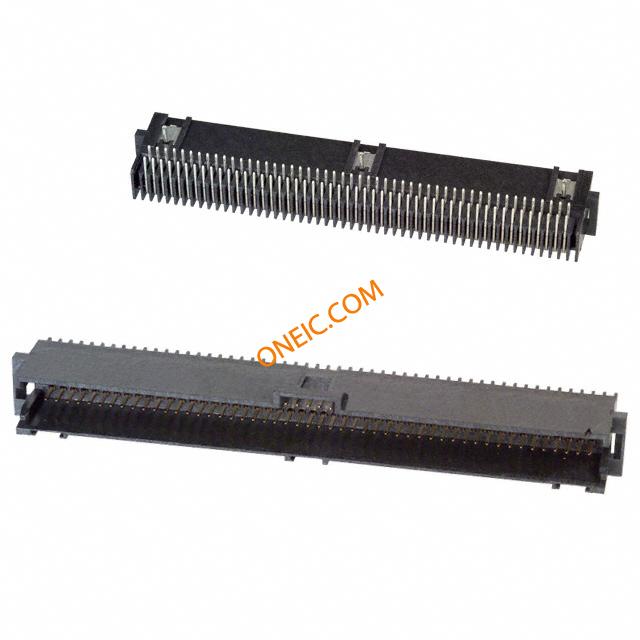

5-104069-7

点击放大查看

5-104069-7

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 60 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 60POS .050" R/A GOLD Headers & Wire Housings 60 POS HDR R/A DUAL ROW Conn Shrouded Header HDR 60 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 60Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 60 sys 50 hdr drra shrd sn
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量11

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压30 VAC供电电压30
额定交流电压30连接器阻抗制动器闭锁
击穿电压500最大额定电流1
绝缘电阻5,000最小供电电压30VAC
保护额定电压（VPR）500 V

机械参数

颜色Black深度13.72 mm
间距1.27 mm高度8.89 mm
底座类型带有包装方式Tube
遮蔽类型Yes壳体颜色黑色
引脚样式圆形排间距0.100" (2.54mm)
稳定剂Without端接方式Solder
引脚间距0.100" (2.54mm)第二连接器With
外壳颜色Black安装类型Right Angle
连接器类型Shrouded接触镀层Gold Over Nickel
安装样式Thru Hole排数2
外壳材料（壳体）2- 面高度（英寸）0.350" (8.89mm)
插入件材料铜合金触头材料Phosphor Bronze
壳体材料Thermoplastic总长度44.45 mm
安装特性压具柱体包装数量Tube
面板安装类型通孔端接样式Through Hole
外径.381 mm [ .015 in ]板面高度0.125" (3.18mm)
触点数60端接表面处理带罩
位数60触头长度-柱0.350" (8.89mm)
安装孔直径带有接触长度 - 配合0.125" (3.18mm)
端子柱长度2.54 [0.100]接触镀层厚度30µin (0.76µm)
静电放电屏蔽不带每排/每行位置数All
端接镀层厚度150 – 250

产品信息

备注Note 1: Hold down posts located as shown for 16 through 100 position headers.;类型Shrouded Header
连接器性别HDR系列AMPMODU System 50
钥匙类型否制造商全称AMP
产品子类型Header Assembly选择性装载No
输出配置Through Hole, Right Angle加载位置数All

环境参数

密封等级不带温度范围-65 – +105
工作温度-65C to 105C封装热阻1.397 mm [ .055 in ]

文档与媒体

在线文档
5-104069-7?RQPN=5-104069-7

相关型号

5-104550-7

5-104550-7

te connectivity / amp

Conn Socket Strip RCP 60 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 60POS .050" GOLD SMD Board to Board & Mezzanine Connectors 60 SYS50 SURFMNT DRST RCPT SN Conn Socket Strip RCP 60 POS 1.27mm Solder ST SMD Tube Search Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 2行 60路 垂直 1.27mm节距 印刷电路板安装 印刷电路板插座, 板对板 60 SYS50 SURFMNT DRST RCPT SN

¥45.3000
详情
2-111196-2

2-111196-2

te connectivity / amp

Conn IDC Connector RCP 60 POS 1.27mm IDT RA Cable Mount Headers & Wire Housings 60 POS RECEPT IDC DUAL ROW .050 X .100 AMPMODU System 50 CONN RECEPT 60POS .050X.100" IDC Receptacle IDC 60 way Amp-Latch Conn IDC Connector RCP 60 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle Assembly60 PositionsNumber of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU Connectors,ribboncablereceptacle,doublerow,60position TE Connectivity AMP-LATCH System 50 系列 2行 60路 1.27mm节距 母 IDC 连接器 , 电缆安装 60 RCPT SYSTEM 50, LEAD FREE

¥53.2304
详情
5-147378-6

5-147378-6

te connectivity / amp

Conn Socket Strip RCP 60 POS 1.27mm Solder ST SMD T/R .050 X .100 AMPMODU System 50 CONN RCPT 60POS DUAL SMD GOLD Board to Board & Mezzanine Connectors 60 SYS50 SMT RCP DR SHD SN 60 SYS50 SMT RCP DR SHD SN 60 SYS50 SMT RCP DR SHD SN Search Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU

¥63.4200
详情

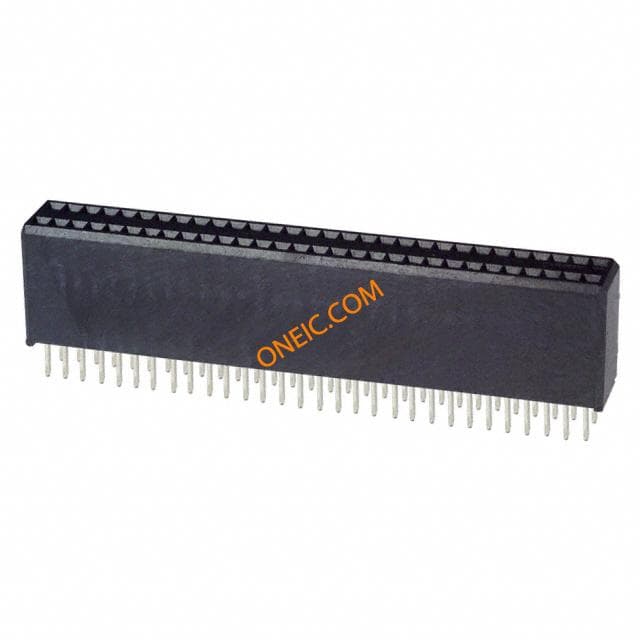

5-104078-6

5-104078-6

te connectivity / amp

Conn Socket Strip RCP 60 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 60POS .050 VERT DUAL Board to Board & Mezzanine Connectors 60 POS RECEPT VERT DUAL ROW Conn Socket Strip RCP 60 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Receptacle AssemblyNumber of Positions = 60Number of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 60 SYSTEM 50 RCPT ASSY DRST SN

¥54.3600
详情
104078-6

104078-6

te connectivity / amp

Conn Socket Strip RCP 60 POS 1.27mm Solder ST Thru-Hole Tube CONN RECEPT 60POS .050 VERT DUAL Board to Board & Mezzanine Connectors 60P SYSTEM 50 RCPT 858 .050 X .100 AMPMODU System 50 .050 X .100 AMPMODU System 50 Product Highlights:Receptacle AssemblyNumber of Positions = 60Number of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 60 SYSTEM 50 RCPT ASSY DRST

¥57.9020
详情

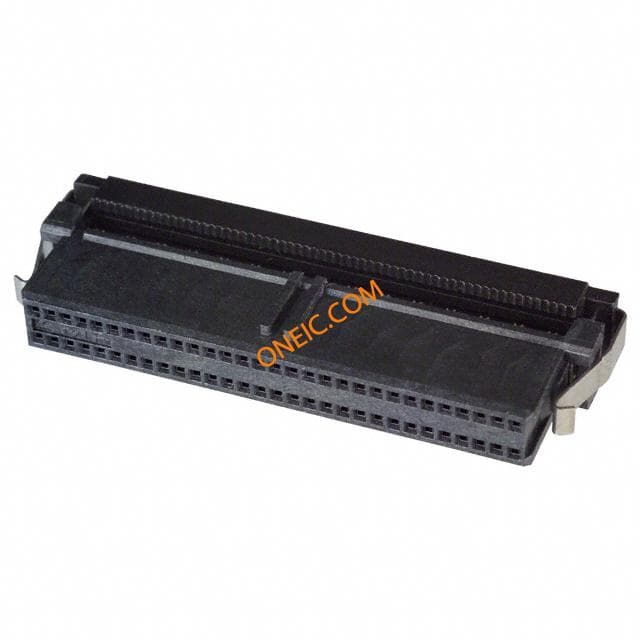

1-111196-2
