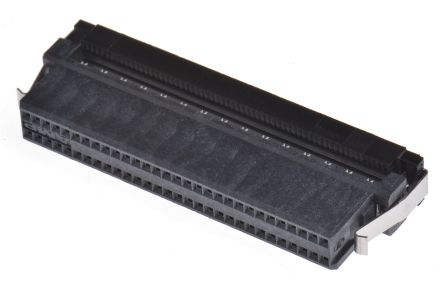

2-111196-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 60 POS 1.27mm IDT RA Cable Mount Headers & Wire Housings 60 POS RECEPT IDC DUAL ROW .050 X .100 AMPMODU System 50 CONN RECEPT 60POS .050X.100" IDC Receptacle IDC 60 way Amp-Latch Conn IDC Connector RCP 60 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle Assembly60 PositionsNumber of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU Connectors,ribboncablereceptacle,doublerow,60position TE Connectivity AMP-LATCH System 50 系列 2行 60路 1.27mm节距 母 IDC 连接器 , 电缆安装 60 RCPT SYSTEM 50, LEAD FREE |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94V-0 |
电气参数
| 额定电压 | 30 V | 开关功能 | Latch |
| 供电电压 | 30 | 接触电阻 | 30 mohm |
| 连接器阻抗 | 锁闩, 锁闩 | 最大额定电流 | 0.5 A |
| 绝缘电阻 | 5000 MOhms | 最小供电电压 | 30VAC |
机械参数
| 颜色 | Black | 深度 | 6.45 mm |
| 间距 | 1.27 mm | 形状 | 矩形 |
| 高度 | 14.73 mm | 长度 | 44.704 mm [ 1.76 in ] |
| 材料（通用） | 不锈钢 | 锁定类型 | 带有 |
| 包装方式 | Tray | 导线类型 | Ribbon Cable |
| 壳体颜色 | 黑色 | 出线方向 | Straight |
| 电缆类型 | Ribbon Cable | 导线线规 | 30-32 AWG |
| 方向 | 直 | 排间距 | 2.54 mm |
| 端接方式 | IDT | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 引脚间距 | 0.100" (2.54mm) |
| 外壳颜色 | Black | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 触点时序 | Without |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 2 | 插入件材料 | 铜合金 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 44.7 mm | 包装数量 | 30 |
| 面板安装类型 | 不带 | 主要材料 | InterconnectSystem |
| 端接排数 | 压接 | 电缆端接方式 | IDC |
| 插针孔直径 | 0.05" | 端接样式 | IDC/IDT |
| 第一触头极性 | Socket (Female) | 触点数 | 60 |
| 端接表面处理 | 带有 | 接触件尾部长度 | 2.54 – 5.08 µm [ 100 – 200 µin ] |
| 位数 | 60 | 兼容外壳尺寸（如TM-700等） | 柱体接头组件 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | AMP | 产品特性 | Feed Through |
| 硬件配件 | Latch | 主要用途 | Feed Through |
| 制造商全称 | AMPMODU | 产品子类型 | Receptacles / Sockets - Housings |
| 输出配置 | Free Hanging (In-Line) | 应用细节 | Commercial |
环境参数
| 工作温度 | -65C to 105C | ||
