147377-6

点击放大查看

147377-6

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 60 POS 1.27mm Solder ST SMD T/R .050 X .100 AMPMODU System 50 CONN HEADER 60POS SHD DL SMD AU Headers & Wire Housings 60 SYS50 SMT HDR DR 750 .050 X .100 AMPMODU System 50 Product Highlights:Header AssemblyNumber of Positions = 60Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 60 SYS50 SMT HDR DR SHD W/O HD
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU标准包装规格250
产品类别Headers & Wire Housings标准包装数量Tape & Reel
工厂包装数量250

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C
标准编号CSA LR7189, UL E28476RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant
材料阻燃等级UL 94V-0

电气参数

额定电压30 VAC供电电压30
额定交流电压30击穿电压500
绝缘电阻5,000保护额定电压（VPR）500 V

机械参数

颜色Black间距1.27 mm
底座类型带有锁定类型带有
包装方式Tape & Reel (TR)遮蔽类型Yes
壳体颜色黑色引脚样式圆形, 圆形
轴径尺寸.022稳定器不带
排间距0.100" (2.54mm)端接方式Solder
外壳颜色Black安装类型Vertical
连接器类型Shrouded接触镀层Gold Over Nickel
安装样式Surface Mount排数2
高度（英寸）0.435" (11.05mm)插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Thermoplastic Glass Reinforced
总长度.031包装数量Tape & Reel
面板安装类型表面贴装插针孔直径.031
连接器间距.1端接样式SMD
第一连接器类型带罩触点数60
端接表面处理带有位数60
安装孔直径带有接触长度 - 配合0.125" (3.18mm)
接触镀层厚度30µin (0.76µm)静电放电屏蔽不带
第一连接器安装特征否

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU System 50钥匙类型是
制造商全称AMP产品子类型Header Assembly
加载位置数All

环境参数

密封等级不带温度范围-65 – +105
防护等级带罩工作温度-65 – 105

文档与媒体

在线文档
147377-6?RQPN=147377-6

相关型号

104550-7

104550-7

te connectivity / amp

Conn Socket Strip RCP 60 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN 60POS BRD/BRD RECEPT SMD VT Board to Board & Mezzanine Connectors SYS50 SMT 60P RECPT 1188 .050 X .100 AMPMODU System 50 Product Highlights:Receptacle Assembly60 PositionsNumber of Rows = DualVertical Mount AnglePCB Mount Style = Surface MountSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 60 SYS50 SURFMNT DRST RCPT

¥49.0185
详情
2-111196-2

2-111196-2

te connectivity / amp

Conn IDC Connector RCP 60 POS 1.27mm IDT RA Cable Mount Headers & Wire Housings 60 POS RECEPT IDC DUAL ROW .050 X .100 AMPMODU System 50 CONN RECEPT 60POS .050X.100" IDC Receptacle IDC 60 way Amp-Latch Conn IDC Connector RCP 60 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle Assembly60 PositionsNumber of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU Connectors,ribboncablereceptacle,doublerow,60position TE Connectivity AMP-LATCH System 50 系列 2行 60路 1.27mm节距 母 IDC 连接器 , 电缆安装 60 RCPT SYSTEM 50, LEAD FREE

¥53.2304
详情
5-104078-6

5-104078-6

te connectivity / amp

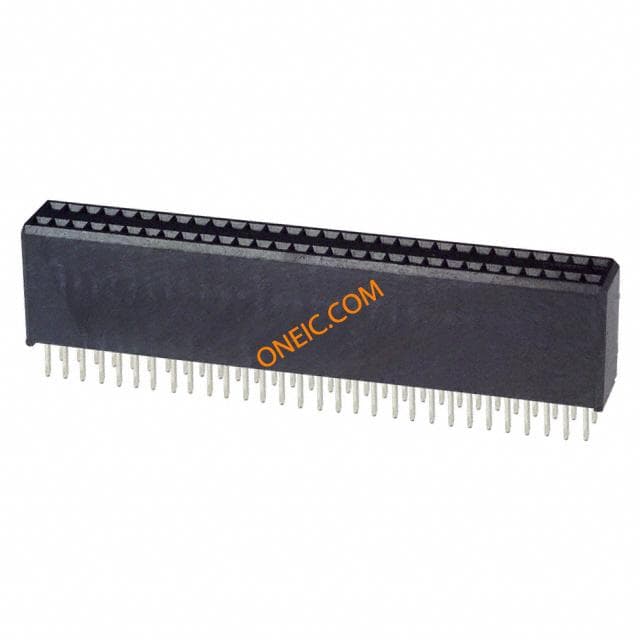

Conn Socket Strip RCP 60 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 60POS .050 VERT DUAL Board to Board & Mezzanine Connectors 60 POS RECEPT VERT DUAL ROW Conn Socket Strip RCP 60 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Receptacle AssemblyNumber of Positions = 60Number of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 60 SYSTEM 50 RCPT ASSY DRST SN

¥54.3600
详情
104078-6

104078-6

te connectivity / amp

Conn Socket Strip RCP 60 POS 1.27mm Solder ST Thru-Hole Tube CONN RECEPT 60POS .050 VERT DUAL Board to Board & Mezzanine Connectors 60P SYSTEM 50 RCPT 858 .050 X .100 AMPMODU System 50 .050 X .100 AMPMODU System 50 Product Highlights:Receptacle AssemblyNumber of Positions = 60Number of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 60 SYSTEM 50 RCPT ASSY DRST

¥57.9020
详情
1-111196-2

1-111196-2

te connectivity / amp

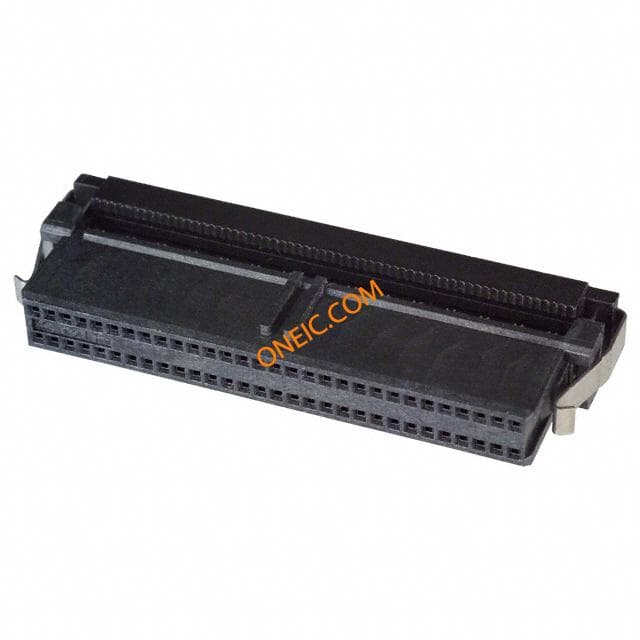

Conn IDC Connector RCP 60 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 60POS .050X.100 IDC Headers & Wire Housings RECPT SYSTEM 450 Conn IDC Connector RCP 60 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle Assembly60 PositionsNumber of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 060 RCPT SYSTEM 50 30 DPLX
