5-104550-7

点击放大查看

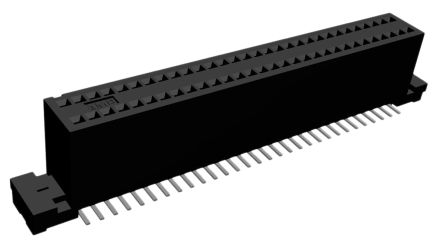

5-104550-7

制造商
TE Connectivity Ltd.
描述Conn Socket Strip RCP 60 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 60POS .050" GOLD SMD Board to Board & Mezzanine Connectors 60 SYS50 SURFMNT DRST RCPT SN Conn Socket Strip RCP 60 POS 1.27mm Solder ST SMD Tube Search Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 2行 60路 垂直 1.27mm节距 印刷电路板安装 印刷电路板插座, 板对板 60 SYS50 SURFMNT DRST RCPT SN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Board to Board & Mezzanine Connectors
标准包装数量Rail / Tube

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°CRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压30 V供电电压30
输入电阻5000额定交流电压30
击穿电压500最大额定电流1A
绝缘电阻5,000

机械参数

颜色Black间距1.27 mm
高度9.398 mm [ .37 in ]镀层Tin
包装方式Tube壳体颜色黑色
轴径尺寸不带方向垂直
排间距0.100" (2.54mm)端接方式Solder
外壳颜色Black安装类型Vertical
连接器类型Receptacle接触镀层Gold Over Nickel
安装样式Surface Mount排数2
电路板厚度1.57插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Thermoplastic Glass Reinforced
刀片材料Copper Alloy安装特性压具柱体
包装数量Tube面板安装类型表面贴装
端接排数焊接连接器间距.1
端接样式SMD板面高度0.370" (9.40mm)
触点数60位数60
兼容外壳尺寸（如TM-700等）插头组件表面贴装焊盘尺寸Without
夹持材料 - 镀层Tin接触镀层厚度30µin (0.76µm)
堆叠高度（配合）0.470", 0.515" (11.94mm, 13.08mm)

产品信息

类型Socket Strip连接器性别RCP
系列AMPMODU SYSTEM 50产品特性Board Lock
可堆叠No制造商全称AMP
产品子类型Receptacle Assembly装配配置Board Standoff
加载位置数All

环境参数

温度范围-65 – +105工作温度-65 – 105
