5-103970-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 8X3 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 8X3 MTE RCPT SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorHousingConnector Style = ReceptacleContact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装规格 | 72 |
| 标准包装数量 | 1,512 | 工厂包装数量 | 72 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 267 V | 输入电阻 | 5000 |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 保护额定电压（VPR） | 600 V | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 2.49 mm [ .098 in ] | 长度 | 60.96 mm [ 2.4 in ] |
| 包装方式 | Bulk | 导线类型 | Discrete |
| 壳体颜色 | 黑色 | 导线线规 | 22-26 AWG |
| 排间距 | 2.54 mm | 端接方式 | IDT |
| 触头类型 | Female Socket | 第二连接器 | Without |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 安装样式 | Wire |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 操作力 | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 包装数量 | 72 |
| 面板安装类型 | 不带 | 电缆端接方式 | IDC |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 3 | 绝缘直径 | 1.37 mm [ .054 in ] |
| 位数 | 3 | 兼容外壳尺寸（如TM-700等） | 与接头配合 |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 带有 |
产品信息
| 备注 | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | 类型 | IDC Connector |
| 连接器性别 | RCP | 系列 | AMPMODU MTE |
| 产品特性 | Closed End | 产品子类型 | Headers |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | - 65 C to + 105 C |
相关型号

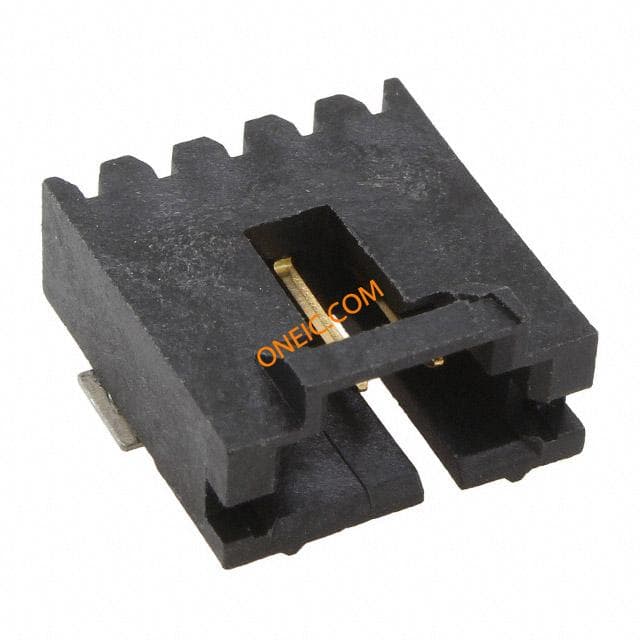

5-147278-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 3POS R/A SMD GOLD Headers & Wire Housings 03 MTE HDR SRRA SFMNT .100CL Conn Shrouded Header HDR 3 POS 2.54mm Solder RA SMD T/R Product Highlights:HeaderNumber of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 3A , 表面安装 03 MTE HDR SRRA SFMNT .100CL
104503-2
te connectivity / amp
Conn Housing PL 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 3POS .100 UNLOADED Headers & Wire Housings 3P MTE PIN HOUSING Conn Housing PL 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 3Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR, PLUG, 3POS, 2.54MM AMPMODU03MTEPINHSGSRRIB.100CL 03 MTE PIN HSG SR RIB .100CL
5-104362-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 3POS 15AU TE Connectivity MTE Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCHNG HDR W/SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM Header;3;3A;600V;MTE(IDC);1;Vertical;0.100in.;5000Megohms;Brass TE Connectivity AMPMODU MTE 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 03 MTE HDR SRST LATCH W/HLDWN
5-104363-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 3POS 15AU TE Connectivity MTE Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCH HDR W/O SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADER, MTE, 3WAY Header;Shrouded;Vertical;Brass;Thermoplastic;3;0.1in.;Gold;0.025in. 03 MTE HDR SRST LATCH .100CL
103653-2
te connectivity / amp
Conn Housing PL 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .1" POL UNLOAD 3 way MTE Pin Housing Headers & Wire Housings PIN ASSEMBLY 3P Conn Housing PL 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, PIN, 3WAY Housing;Thermoplastic;Pin;Single;0.1in.;UL94V-0;Black;3 TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 3 路 直 母 电缆安装 PCB 壳体 03 MTE SHRD PIN HSG SR LATCH

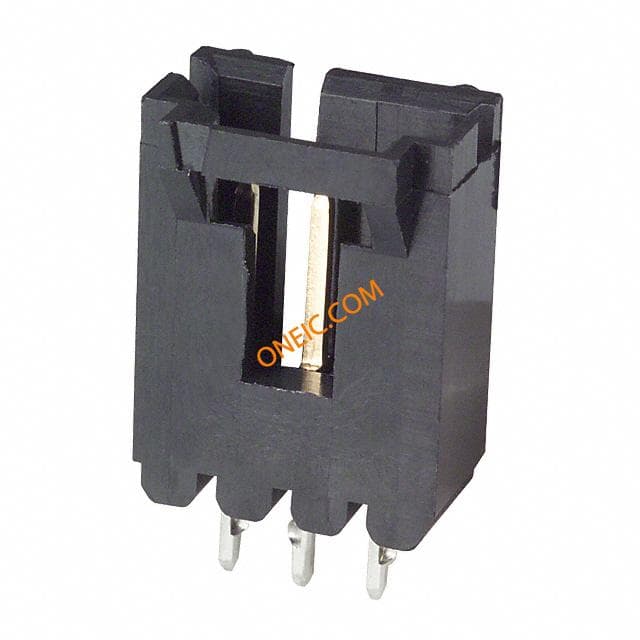

5-103946-2
te connectivity / amp
Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 POLAR 30AU Shrouded pin ass. 2.54mm straight 2way Headers & Wire Housings PIN ASSEMBLY 3P Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Shroudedpinass.2.54mmstraight2way TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 公 IDC 连接器 , 电缆安装 5X3 MTE SHRD PIN SR POL .100CL
5-103908-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 3POS 30AU TE Connectivity MTE Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCHNG HDR W/SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM AMPMODUMTEVERTASSY,03MTEHDRSRSTLATCHW/HLDWN TE Connectivity AMPMODU MTE 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 03 MTE HDR SRST LATCH W/HLDWN
5-103635-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 3POS 15AU TE Connectivity MTE Series 2.54mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings LATCHING HDR SHRD 3P w/o hold down Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Connector Type:Wire-to-Board AMPMODUMTER/AHDAY,03MTEHDRSRRALTCH.100CLLF TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 (1排) 直角 PCB 针座 , 焊接端接, 3A, 通孔 03 MTE HDR SRRA LTCH.100CL LF

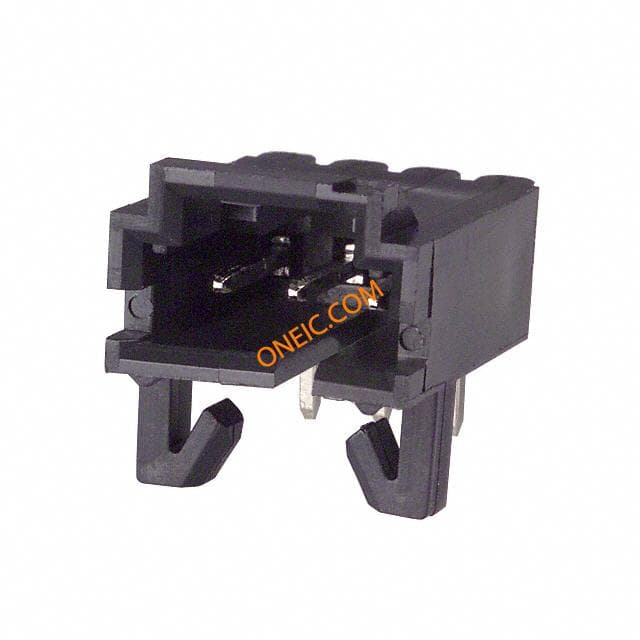

5-103672-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT ANG 3POS PCB TIN TE Connectivity MTE Series 2.54mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings LATCHING HDR SHRD 3P with hold down Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADERHORIZ3WAYLATCH TE Connectivity AMPMODU MTE 系列 2.54mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 03 MTE HDR SRRA LATCH W/HLDWN
5-103735-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 3POS 30AU TE Connectivity MTE Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCH HDR W/O SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorConnector Type = Header - Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mm3 PositionsSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM MTEHEADERASSY,03MTEHDRSRSTLATCH.100CL TE Connectivity AMPMODU MTE 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 03 MTE HDR SRST LATCH .100CL
5-104809-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 3POS VERT LATCH GOLD Headers & Wire Housings 03 MTE HDR SRST LATCH W/HLDWN 03 MTE HDR SRST LATCH W/HLDWN 03 MTE HDR SRST LATCH W/HLDWN Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔

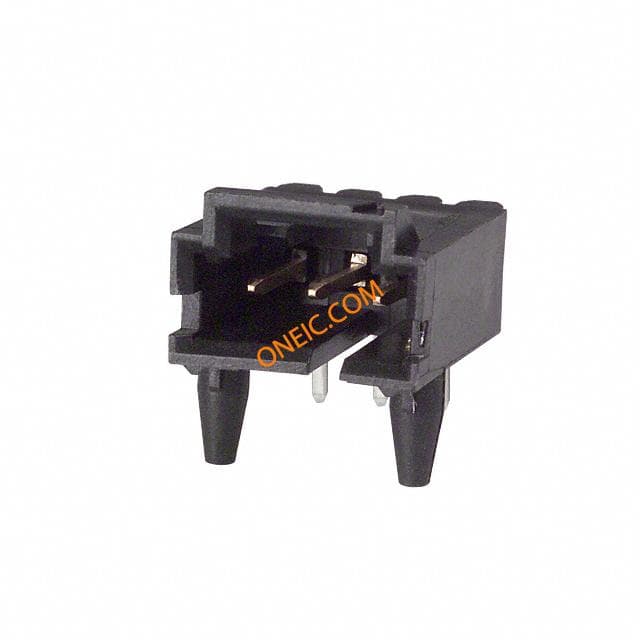

5-104361-2
